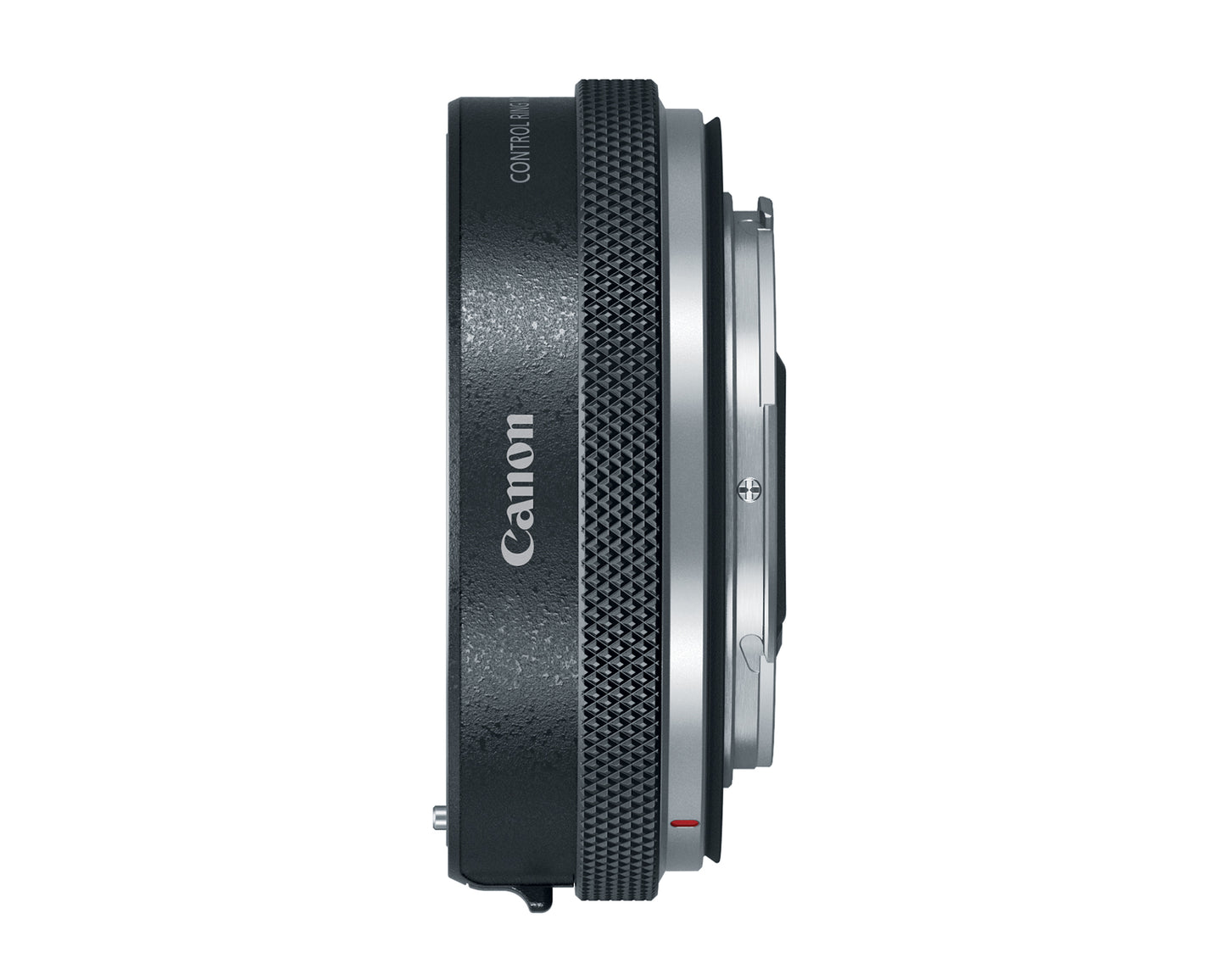

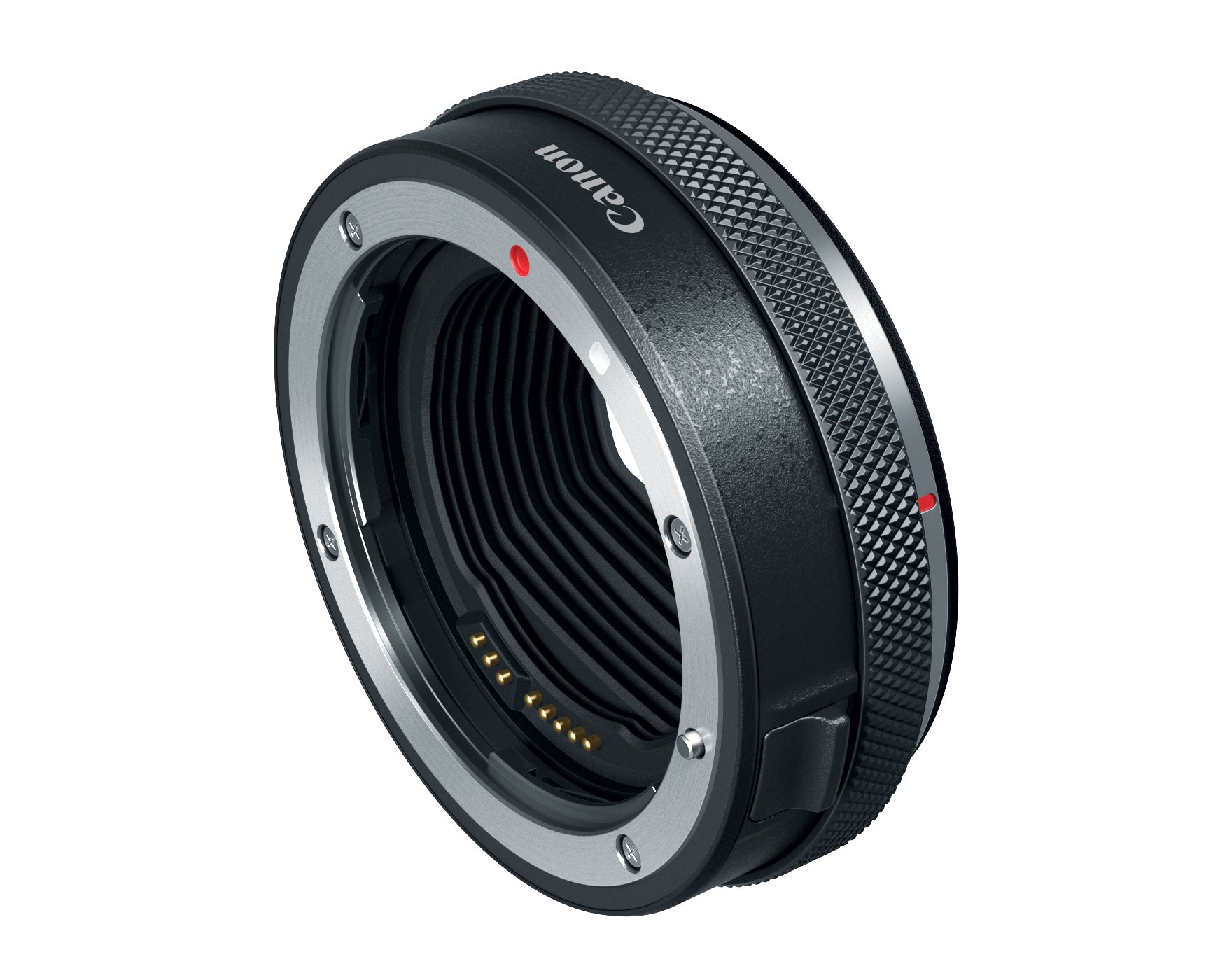

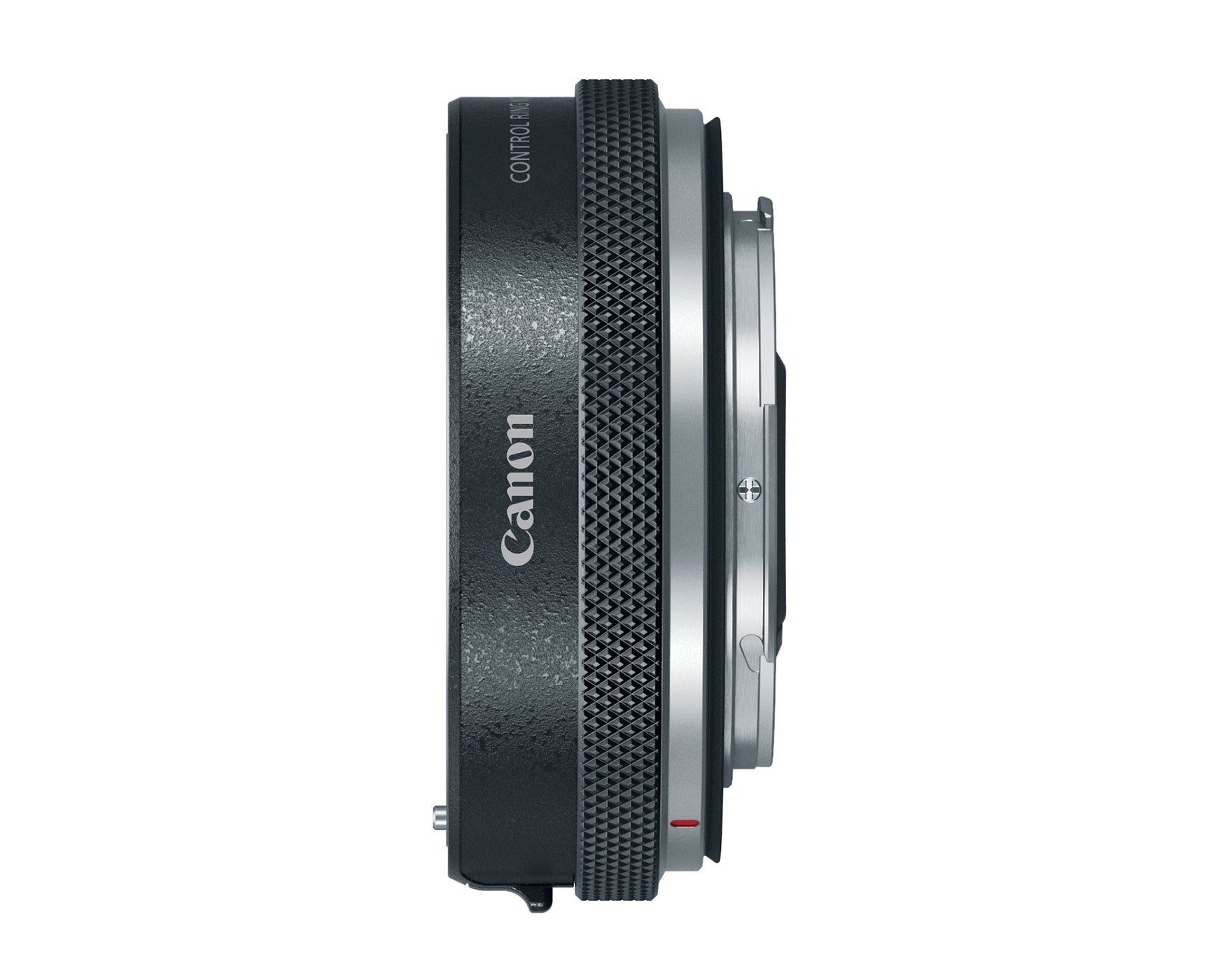

Canon Control Ring Mount Adapter EF-EOS R

The Canon Control Ring Mount Adapter EF-EOS R allows compatible Canon EF and EF-S lenses to be used on EOS R mirrorless cameras while adding the customizable control-ring experience found on many native RF lenses.

The adapter contains no optical elements, so it does not change focal length, maximum aperture or inherent image quality. Its programmable control ring provides convenient access to exposure settings while autofocus, metering, lens stabilization and other supported electronic functions remain available.

⭐ Key Benefits

• Mounts compatible Canon EF and EF-S lenses on EOS R cameras

• Adds a customizable RF-style control ring

• Contains no optical elements

• Does not change focal length

• Does not reduce the maximum aperture

• Maintains autofocus with compatible lenses

• Maintains automatic exposure control

• Supports compatible lens image stabilization

• Transfers lens and shooting information

• Dust- and moisture-resistant construction

• Metal front and rear mounts

• Removable tripod foot included

🔄 Continue Using Compatible EF and EF-S Lenses

The adapter gives photographers a practical way to bring an existing Canon lens collection into the EOS R system.

Compatible lenses can continue to serve for:

• Portrait photography

• Weddings and events

• Sports and wildlife

• Macro photography

• Architecture

• Studio work

• Video production

• Specialized technical photography

The adapter is designed for EF and EF-S lenses. It does not adapt EF-M, RF or RF-S lenses.

🎛️ Customizable Control Ring

The integrated control ring can be assigned through the camera’s customization menu to a frequently used setting such as:

• Aperture

• Shutter speed

• ISO

• Exposure compensation

This gives adapted lenses an additional physical control similar to the ring provided on many native Canon RF lenses.

The ring’s click-stop action provides tactile feedback, allowing photographers to make deliberate adjustments without taking their eye away from the viewfinder.

📸 Faster Exposure Adjustments

Control-ring customization can simplify operation in many shooting situations.

Examples include:

• Assigning exposure compensation for aperture-priority photography

• Assigning aperture for direct depth-of-field control

• Assigning ISO during changing light

• Assigning shutter speed for sports and wildlife

• Adjusting exposure while keeping the camera’s main dials available for other settings

Depending on the camera, the control ring can be configured to operate only while the shutter button is partially pressed, helping prevent accidental changes.

✨ No Optical Elements

The Control Ring Mount Adapter is a precision spacer with electronic contacts and no internal corrective glass.

It does not introduce:

• A crop factor

• Light loss

• Teleconverter magnification

• Additional optical aberrations

• A change in minimum focusing distance

• A change in the lens’s maximum aperture

A compatible EF lens maintains its original optical specifications when adapted to an EOS R camera.

⚡ Autofocus Support

Compatible EF and EF-S lenses retain autofocus through the EOS R camera’s image-sensor-based focusing system.

Depending on the lens and camera combination, supported functions can include:

• One-Shot AF

• Servo AF

• Eye detection

• Face detection

• Subject tracking

• Continuous movie autofocus

• Manual-focus assistance

• Focus peaking

Autofocus speed and continuous-shooting performance may vary with lens age, design, firmware and camera model.

🛡️ Lens Image Stabilization

Optical stabilization built into compatible EF and EF-S lenses remains operational.

On EOS R cameras with in-body image stabilization, the camera may coordinate its stabilization with supported adapted lenses. The exact operation and correction level depend on the camera and lens combination.

The adapter itself does not contain a stabilization unit.

📐 Full-Frame EF Lens Behavior

A full-frame EF lens retains its original focal length and full-frame image coverage when used on a full-frame EOS R camera.

The adapter does not alter the lens’s field of view. Any crop is determined by the camera’s sensor size or selected crop mode.

📷 Using EF-S Lenses

Compatible EF-S lenses can also be attached.

When an EF-S lens is mounted on a full-frame EOS R camera, the camera normally switches to its approximately 1.6x crop mode. This prevents the image area outside the EF-S lens’s intended coverage from being recorded.

On an APS-C EOS R camera, an EF-S lens uses the camera’s normal APS-C image area.

🎥 Video Applications

The Control Ring adapter is useful for filmmakers who want to continue using compatible EF photographic or Cinema EOS lenses.

Depending on the equipment, it can retain:

• Electronic aperture adjustment

• Autofocus

• Lens stabilization

• Manual-focus assistance

• Lens identification

• Correction data

• Shooting metadata

The control ring can provide convenient access to ISO or another exposure setting, although its click stops may be audible through a microphone mounted close to the camera.

📡 Electronic Communication

Precision contacts maintain supported communication between the lens and camera, including:

• Aperture commands

• Autofocus instructions

• Focal-length information

• Lens identification

• Stabilization data

• Focus-distance information

• Correction profiles

• EXIF metadata

The camera recognizes the lens and records supported shooting information automatically.

🌦️ Dust- and Moisture-Resistant Construction

Weather-resistant sealing helps protect the adapter’s connection points when it is used with appropriately sealed equipment.

Protection for the complete system depends on the camera and lens as well as the adapter. The adapter is weather resistant rather than waterproof.

🦶 Removable Tripod Foot

The included tripod foot can improve balance when certain adapted lenses are mounted to a tripod.

It can be removed with the included hex key for lighter handheld use. Large telephoto lenses equipped with their own tripod collar should normally be supported by the lens collar.

📋 Technical Specifications

📸 Ideal For

• Photographers transitioning from Canon DSLR equipment

• Existing owners of compatible EF or EF-S lenses

• Photographers who enjoy the RF control-ring interface

• Wedding and event photographers

• Sports and wildlife photographers

• Studio and commercial photographers

• Macro photographers

• Filmmakers using compatible EF lenses

• Anyone wanting more direct exposure control

• Photographers gradually building a native RF lens collection

🆚 Control Ring Adapter vs Standard Adapter

Choose the standard adapter for the smallest and simplest solution. Choose the Control Ring adapter when direct access to a frequently used setting will improve handling.

🆚 Control Ring Adapter vs Drop-In Filter Adapter

Choose the Control Ring adapter for everyday adapted-lens operation. Choose a Drop-In Filter adapter when rear-positioned filtration is more important, particularly with lenses that lack conventional front filter threads.

🆚 Adapted EF Lenses vs Native RF Lenses

Compatible adapted EF lenses can continue to provide excellent results while photographers transition into the EOS R system.

Native RF and RF-S lenses may offer:

• More compact optical designs

• Faster camera-to-lens communication

• Newer focusing systems

• Improved coordinated stabilization

• Native control rings

• Features developed specifically for EOS R cameras

Cameragraphics concentrates on current Canon mirrorless products and does not stock the DSLR product line, but the adapter allows customers who already own compatible EF or EF-S lenses to continue using them.

⚠️ Compatibility Notes

This adapter is intended for compatible Canon EF and EF-S lenses. It is not compatible with:

• Canon EF-M lenses

• Canon RF or RF-S lenses

• Canon FD lenses

• Mounting an RF lens on a DSLR

• Canon RF extenders placed between an EF lens and the adapter

Some third-party EF-mount lenses may require firmware updates or may not support every EOS R camera function. Compatibility should be checked with the lens manufacturer.

📦 In the Box

• Canon Control Ring Mount Adapter EF-EOS R

• Canon Extender Cap RF

• Canon RF Rear Lens Dust Cap

• Removable Tripod Mount

• Hex Key for Tripod Mount

• Manufacturer documentation

🎒 Recommended Kit Additions

Consider pairing the adapter with:

• A compatible Canon EOS R camera

• Existing compatible EF or EF-S lenses

• Native RF or RF-S lens for everyday use

• Small padded accessory pouch

• Replacement front and rear caps

• Lens-cleaning blower

• Microfiber cleaning cloth

• Appropriate tripod or monopod for larger lenses
