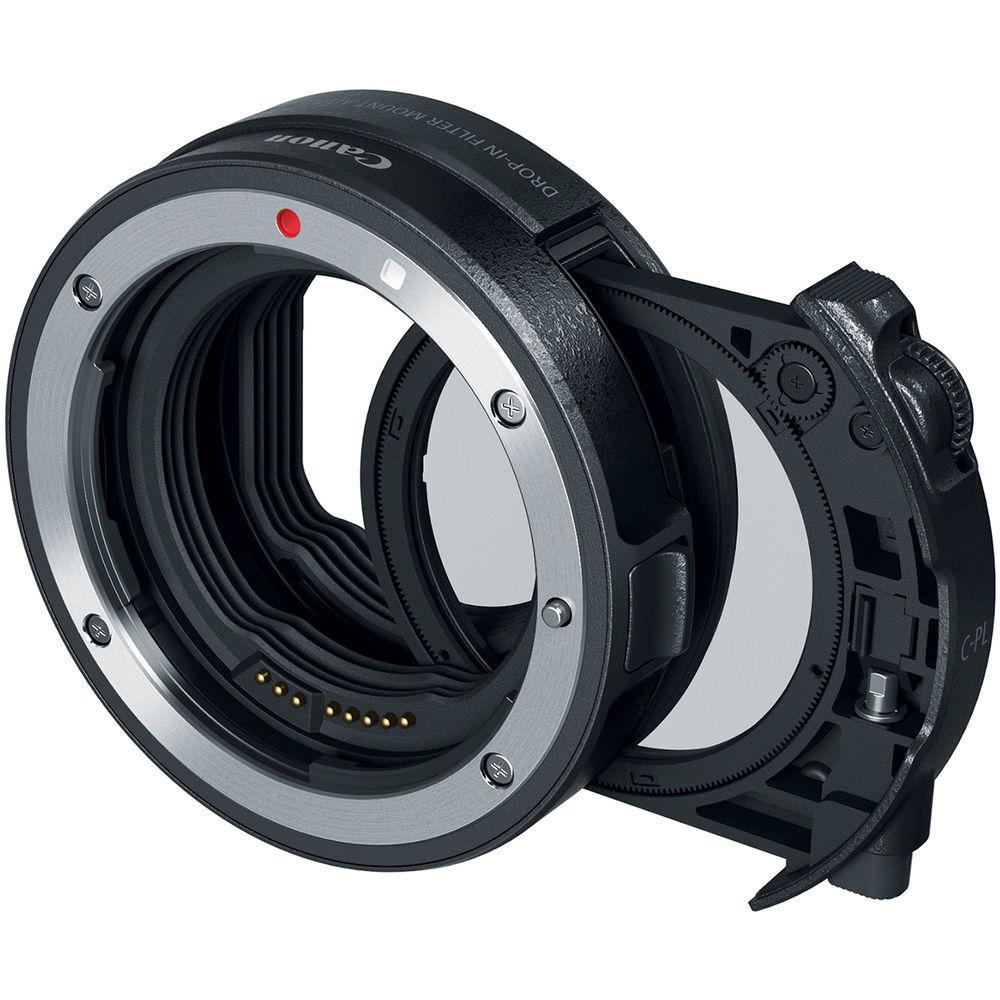

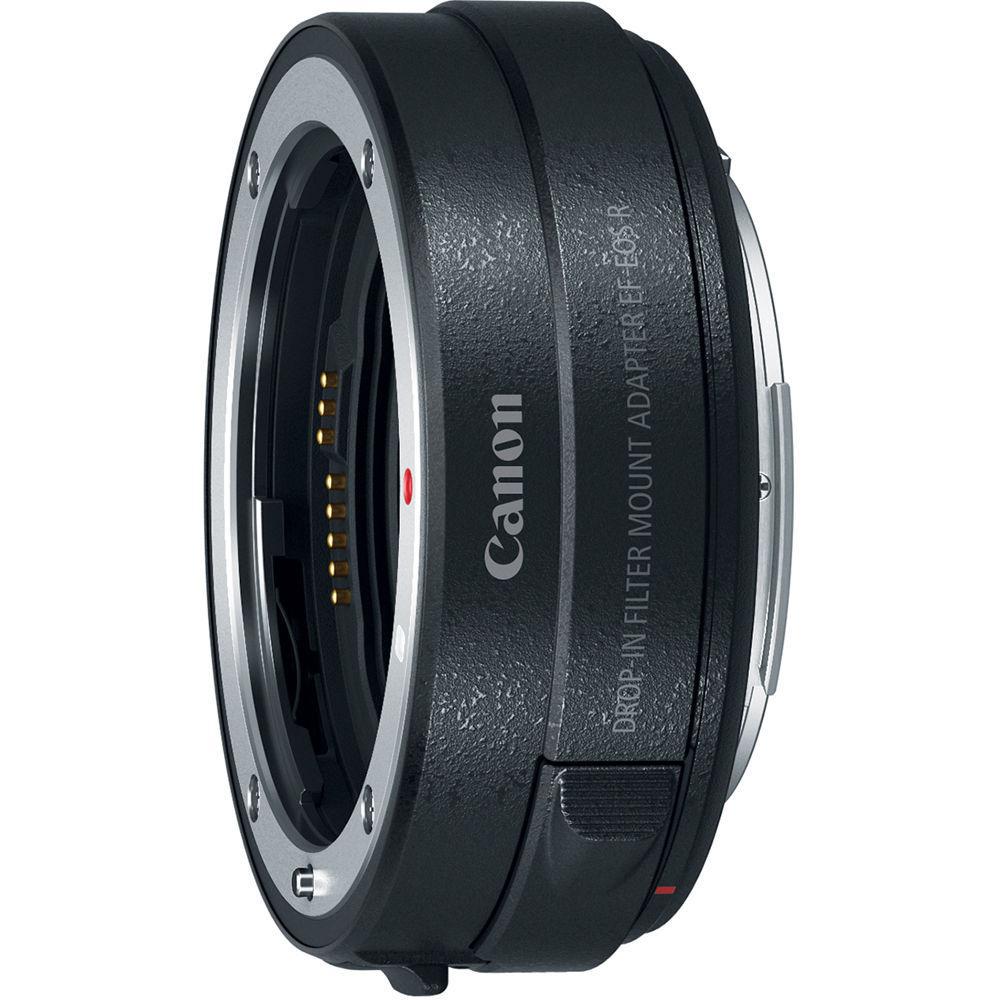

Canon Drop-In Filter Mount Adapter EF-EOS R with Circular Polarizing Filter A

The Canon Drop-In Filter Mount Adapter EF-EOS R with Circular Polarizing Filter A allows compatible Canon EF and EF-S lenses to be used on EOS R cameras while adding a convenient rear-positioned polarizing filter.

The circular polarizer can reduce reflections from water, glass, foliage and other non-metallic surfaces while improving color saturation and contrast. Because the filter sits behind the lens, one compact filter can be used with multiple compatible EF and EF-S lenses—including ultra-wide and specialized lenses that cannot accept conventional front filters.

⭐ Key Benefits

• Mounts compatible Canon EF and EF-S lenses on EOS R cameras

• Includes Canon Drop-In Circular Polarizing Filter A

• Reduces reflections from water, glass and foliage

• Improves color saturation and contrast

• Helps darken blue skies under suitable conditions

• External adjustment wheel controls polarization

• Works with lenses that lack conventional front filter threads

• Eliminates the need for multiple front-filter sizes

• Does not change the lens’s focal length

• Maintains autofocus with compatible lenses

• Maintains automatic exposure and lens stabilization

• Dust- and moisture-resistant adapter construction

🔄 Adapt EF and EF-S Lenses to EOS R

The adapter maintains the proper physical spacing and electronic connection between compatible EF or EF-S lenses and an EOS R camera.

Depending on the camera and lens combination, supported functions can include:

• Autofocus

• Servo subject tracking

• Automatic aperture control

• Exposure metering

• Lens image stabilization

• Subject detection

• Lens correction data

• EXIF metadata

The adapter is intended for EF and EF-S lenses. It does not adapt EF-M, RF or RF-S lenses.

🌈 Reduce Unwanted Reflections

The included circular polarizing filter can reduce reflected light from many non-metallic surfaces.

It is particularly useful for photographing:

• Water and streams

• Lakes and waterfalls

• Glass windows

• Painted surfaces

• Wet rocks

• Foliage

• Vehicles

• Product packaging

• Architecture

• Landscapes after rain

A polarizer cannot normally remove reflections from bare metallic surfaces because those reflections behave differently.

🌿 Richer Color and Contrast

Reflected glare can make leaves, grass and other natural surfaces appear pale or washed out. Reducing that glare allows their underlying color to appear more clearly.

The polarizer can produce:

• Richer green foliage

• More saturated autumn color

• Improved cloud definition

• Reduced atmospheric haze

• Greater apparent contrast

• Clearer views beneath the surface of water

These effects are created optically during exposure and can be difficult to reproduce convincingly through editing alone.

☁️ Darker Blue Skies

Under suitable conditions, a circular polarizer can darken blue skies and increase contrast between the sky and clouds.

The effect is strongest when the camera points approximately 90 degrees away from the sun. It becomes weaker when photographing directly toward or away from the sun.

With very wide lenses, polarization can vary across the broad field of view, producing an uneven sky. This is a normal property of polarized light rather than a defect in the filter.

🎛️ External Adjustment Wheel

A small adjustment wheel remains accessible after the filter has been inserted into the adapter.

Rotating the wheel changes the polarizing effect without requiring the camera or lens to be removed. The photographer can watch the effect through the viewfinder or rear display and stop when the desired reflection control is achieved.

Maximum polarization is not always the most natural-looking setting, so adjustment should be based on the subject and creative intent.

🏞️ Excellent for Landscape Photography

The adapter and polarizer are particularly useful for landscape photographers working with several different EF lenses.

A single filter can be used behind:

• Wide-angle zooms

• Standard zooms

• Telephoto lenses

• Tilt-shift lenses

• Fisheye lenses

• Lenses with unusually large filter threads

• Lenses with curved front elements

This reduces the need to carry multiple large filters, step-up rings and front-mounted filter holders.

🏛️ Ideal for Tilt-Shift and Ultra-Wide Lenses

Certain specialized EF lenses are difficult to filter at the front. A rear-positioned drop-in filter provides a convenient solution without placing a bulky holder in front of the lens.

It is especially valuable for:

• Architectural photography

• Interior photography

• Real-estate photography

• Ultra-wide landscapes

• Panoramic stitching

• Perspective-control photography

Rear filtration also avoids adding a thick front filter ring that could cause mechanical vignetting on an ultra-wide lens.

🚗 Product and Automotive Photography

The circular polarizer can help manage glare from painted and glass surfaces, making it useful for product, automotive and commercial photography.

It can reveal color and surface detail that would otherwise be hidden by reflections. However, some reflections are important for showing the shape and finish of a product, so the filter should be adjusted rather than automatically set to its strongest effect.

☀️ Natural Light Reduction

A circular polarizer absorbs some light even when its visible reflection-reducing effect is modest.

The camera’s metering system automatically compensates, but photographers may notice:

• A slower shutter speed

• A higher ISO setting

• Reduced autofocus performance in very low light

• A darker view before electronic viewfinder compensation

The exact light loss depends on the filter’s position and the polarization of light in the scene.

✨ No Focal-Length Conversion

Unlike a focal reducer or teleconverter, this adapter does not intentionally magnify or reduce the lens’s image.

A full-frame EF lens retains its original:

• Focal length

• Maximum aperture specification

• Minimum focusing distance

• Full-frame image coverage

The circular polarizer reduces light transmission but does not change the lens’s nominal aperture.

📷 EF-S Lens Operation

Compatible EF-S lenses can also be mounted.

When an EF-S lens is attached to a full-frame EOS R camera, the camera normally switches to its approximately 1.6x crop mode. On an APS-C EOS R camera, the lens uses the camera’s standard APS-C imaging area.

This crop behavior is caused by the lens’s image coverage and camera sensor—not by the adapter.

🎥 Video Applications

The adapter is valuable for filmmakers using compatible EF lenses on EOS R or Cinema EOS cameras.

The polarizer can help:

• Control reflections from windows

• Reduce glare on vehicles

• Improve foliage color

• Reveal detail beneath water

• Manage reflections from glossy products

• Increase outdoor color saturation

The adjustment wheel allows the effect to be changed while the filter remains inside the adapter, although visible changes should be made carefully during an active shot.

🌦️ Weather-Resistant Construction

Sealing helps protect the adapter against dust and moisture when it is used with appropriately sealed camera and lens equipment.

Weather protection for the complete system depends on every connected component. The adapter is weather resistant rather than waterproof.

🔁 Interchangeable Drop-In Filters

The adapter accepts compatible Canon Drop-In Filter A accessories.

Available filter options include:

• Drop-In Circular Polarizing Filter A

• Drop-In Variable ND Filter A

• Drop-In Clear Filter A

The Clear Filter A is recommended when neither polarization nor neutral-density filtration is desired.

The filter slot should not be left empty during normal use. Installing the Clear Filter A protects the opening and preserves the intended optical path when no creative filter effect is required.

⚠️ Polarizer Considerations

A circular polarizer is extremely useful, but it is not ideal for every subject or situation.

Important considerations include:

• It reduces available light

• It may produce uneven skies with ultra-wide lenses

• It has limited effect when pointing toward or away from the sun

• It does not normally remove reflections from metal

• It can reduce desirable reflections on products or water

• It should be rotated for each composition

• Its effect can change as the camera or subject moves

📋 Technical Specifications

📸 Ideal For

• Landscape photographers

• Architectural photographers

• Real-estate photographers

• Automotive photography

• Product and commercial work

• Waterfall and stream photography

• Nature and foliage photography

• Filmmakers controlling reflections

• Owners of EF tilt-shift lenses

• Owners of ultra-wide EF lenses

• Photographers using several different front-filter sizes

• Anyone needing rear-positioned polarization

🆚 Drop-In CPL Adapter vs Standard EF-EOS R Adapter

Choose the standard adapter for the smallest and simplest EF-to-RF connection. Choose the CPL adapter when polarization is frequently needed or conventional front filters are impractical.

🆚 Circular Polarizer vs Variable ND Filter

Choose the circular polarizer for managing glare, reflections and color. Choose the Variable ND filter when precise exposure reduction is the priority.

🆚 Drop-In Filter vs Front Filter

A conventional front polarizer is often the simplest solution for a single lens with a common filter thread.

The drop-in adapter becomes especially valuable when:

• Several EF lenses use different filter sizes

• A lens has a curved front element

• A lens lacks front filter threads

• Large front filters would be expensive

• A filter holder could cause vignetting

• Filters need to be changed quickly across multiple lenses

🆚 Adapted EF Lenses vs Native RF Lenses

This adapter filters compatible EF and EF-S lenses while mounting them to an EOS R camera. It does not provide a drop-in filter solution for ordinary native RF lenses.

Cameragraphics focuses on current Canon mirrorless equipment and does not stock the DSLR product line, but this adapter is an excellent solution for customers who already own compatible EF or EF-S lenses.

📦 In the Box

• Canon Drop-In Filter Mount Adapter EF-EOS R

• Canon Drop-In Circular Polarizing Filter A

• Canon Extender Cap RF

• Canon RF Rear Lens Dust Cap

• Removable Tripod Mount

• Hex Key for Tripod Mount

• Manufacturer documentation

🎒 Recommended Kit Additions

Consider pairing the adapter with:

• Compatible Canon EOS R camera

• Existing compatible EF or EF-S lenses

• Canon Drop-In Clear Filter A

• Canon Drop-In Variable ND Filter A

• Filter storage case

• Lens-cleaning blower

• Microfiber cleaning cloth

• Tripod for landscape and architectural work

• Remote shutter release

• Rain cover for outdoor photography
