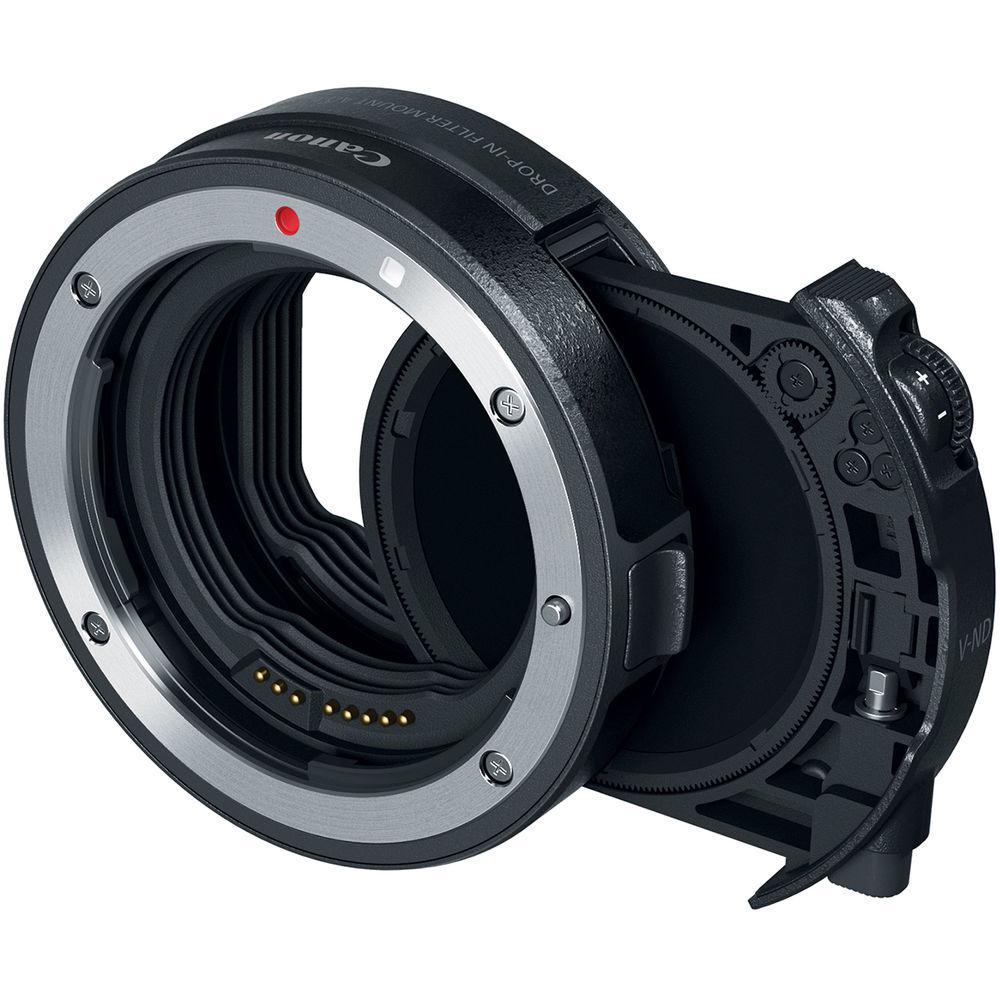

Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter A

The Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter A allows compatible Canon EF and EF-S lenses to be used on EOS R cameras while providing adjustable neutral-density filtration directly behind the lens.

The included Variable ND Filter A offers approximately 1.5 to 9 stops of light reduction. This makes it possible to maintain cinematic shutter speeds, use wide apertures in bright light or create long-exposure motion effects without attaching filters to the front of each lens.

⭐ Key Benefits

• Mounts compatible Canon EF and EF-S lenses on EOS R cameras

• Includes Canon Drop-In Variable ND Filter A

• Adjustable from approximately ND3 to ND500

• Provides approximately 1.5 to 9 stops of light reduction

• External dial allows quick density adjustment

• Helps maintain cinematic video shutter speeds

• Enables wide apertures in bright conditions

• Supports longer photographic exposures

• Works with lenses that lack front filter threads

• Eliminates the need for multiple front-filter sizes

• Maintains autofocus and electronic lens communication

• Dust- and moisture-resistant adapter construction

🔄 Adapt Compatible EF and EF-S Lenses

The adapter provides the correct mechanical spacing and electronic connection for using compatible EF and EF-S lenses on Canon EOS R cameras.

Depending on the particular lens and camera, supported features can include:

• Autofocus

• Servo subject tracking

• Automatic aperture control

• Exposure metering

• Lens image stabilization

• Subject detection

• Lens correction data

• EXIF metadata

The adapter does not work with EF-M, RF or RF-S lenses.

🌤️ Adjustable 1.5-to-9-Stop Light Reduction

The Variable ND Filter A adjusts from approximately ND3 through ND500, equivalent to about 1.5 to 9 stops of light reduction.

The adjustment dial provides continuous control between the filter’s lighter and darker settings.

🎥 Maintain Cinematic Shutter Speeds

Video exposure is often controlled around a shutter speed approximately twice the frame rate, such as:

In bright conditions, these shutter speeds may allow too much light even at low ISO. The Variable ND filter reduces exposure without forcing the filmmaker to use an unnaturally fast shutter speed.

🌞 Use Wide Apertures in Bright Light

The filter allows photographers and filmmakers to use wide apertures outdoors without exceeding the camera’s available shutter-speed or ISO range.

This is useful for:

• Portraits with shallow depth of field

• Interviews with softened backgrounds

• Wedding films

• Music videos

• Commercial productions

• Outdoor narrative filmmaking

• Fashion photography

• Detail shots in direct sunlight

Instead of stopping the lens down, the filter reduces the light while preserving the chosen aperture.

🌊 Create Long-Exposure Motion Effects

Variable neutral density can also extend exposure times for still photography.

Creative applications include:

• Smoothing moving water

• Blurring waterfalls

• Showing cloud movement

• Softening waves

• Blurring moving vehicles

• Suggesting pedestrian movement

• Creating intentional-motion photographs

The exact exposure time available depends on the starting light level, aperture, ISO and selected filter density.

🎛️ External Density-Control Dial

The filter’s adjustment dial remains accessible while the adapter is installed.

Photographers and filmmakers can rotate the dial while watching the viewfinder, monitor or exposure tools. This makes it easy to respond to changing sunlight without removing the lens or filter.

The dial is especially useful when moving between:

• Sun and shade

• Interior and exterior locations

• Different camera angles

• Changing cloud cover

• Shots requiring different apertures

🎒 One Filter for Multiple Lenses

Because the filter sits inside the adapter, the same Variable ND Filter A works with every compatible EF or EF-S lens mounted through it.

This avoids carrying separate front filters for lenses with different thread sizes, such as:

• 67mm

• 72mm

• 77mm

• 82mm

• Larger or uncommon filter sizes

It also eliminates the need for step-up rings when switching between compatible lenses.

🏛️ Useful with Ultra-Wide and Tilt-Shift Lenses

Some specialized lenses cannot easily accept conventional front filters because they have a curved front element or built-in hood.

The rear-positioned filter is especially useful for:

• EF tilt-shift lenses

• Ultra-wide EF lenses

• Fisheye lenses

• Large-aperture lenses with oversized front elements

• Cinema lenses

• Lenses for which front filter holders cause vignetting

This makes the adapter particularly valuable for architectural, interior and landscape photography.

✨ No Focal-Length Conversion

The adapter does not function as a teleconverter or focal reducer.

A compatible full-frame EF lens retains its original:

• Focal length

• Maximum aperture specification

• Minimum focusing distance

• Full-frame image coverage

The Variable ND filter reduces the amount of transmitted light, but it does not change the lens’s nominal f-number.

⚡ Autofocus and Exposure Support

Compatible electronic EF and EF-S lenses retain communication with the EOS R camera.

The camera continues to control autofocus and aperture while metering through the installed ND filter. Exposure displays and histograms therefore reflect the reduced light reaching the sensor.

At very high filter densities, autofocus may become slower in poor light because less illumination reaches the camera’s focusing system.

🛡️ Lens Image Stabilization

Image stabilization built into compatible lenses remains operational.

On supported EOS R cameras with in-body stabilization, the camera may coordinate stabilization with the adapted lens. The exact operation depends on the camera and lens combination.

The adapter and filter do not provide stabilization by themselves.

📷 EF-S Lens Operation

Compatible EF-S lenses can be mounted through the adapter.

A full-frame EOS R camera normally switches to its approximately 1.6x crop mode when an EF-S lens is detected. On an APS-C EOS R camera, the lens uses the camera’s normal APS-C imaging area.

This field-of-view behavior is caused by the lens and sensor format, not by the ND filter.

🌦️ Weather-Resistant Construction

The adapter incorporates sealing to help protect against dust and moisture when paired with appropriately sealed equipment.

Weather protection for the complete system depends on the lens and camera as well as the adapter. The adapter is weather resistant rather than waterproof.

🔁 Interchangeable Drop-In Filters

The adapter accepts Canon Drop-In Filter A accessories, including:

• Drop-In Variable ND Filter A

• Drop-In Circular Polarizing Filter A

• Drop-In Clear Filter A

The Clear Filter A is recommended when no filtration effect is wanted.

The adapter should not normally be used with an empty filter slot. Installing a compatible filter protects the opening and maintains the intended optical path.

⚠️ Variable ND Considerations

Variable ND filters use polarizing layers to change density. Certain optical effects can appear under demanding conditions, particularly near maximum density.

Possible effects include:

• Uneven density

• A dark cross-shaped pattern at extreme settings

• Color shifts

• Increased reflections or flare

• Uneven skies with ultra-wide lenses

• Interaction with polarized glass or displays

For the most consistent results, avoid turning beyond the filter’s marked operating range and inspect the full frame carefully at high densities.

📋 Technical Specifications

📸 Ideal For

• Professional filmmakers

• Documentary and event videographers

• Wedding filmmakers

• Outdoor portrait photographers

• Landscape photographers

• Architectural photographers

• Long-exposure photography

• Owners of EF tilt-shift lenses

• Owners of ultra-wide EF lenses

• Cinema EOS users

• Photographers using several front-filter sizes

• Anyone needing rapid exposure control in changing light

🆚 Variable ND Adapter vs Circular Polarizer Adapter

Choose the Variable ND version for exposure control. Choose the Circular Polarizing version when reflections, glare and color saturation are the primary concerns.

🆚 Drop-In Variable ND vs Front-Mounted Variable ND

A front-mounted variable ND filter is straightforward when only one lens and one filter size are involved.

The drop-in system offers important advantages when:

• Multiple lenses use different filter threads

• A lens cannot accept a conventional front filter

• Large filters would be expensive

• Step-up rings would complicate lens changes

• A front filter holder could cause vignetting

• Rapid filter adjustment is important

The drop-in filter remains close to the camera and is protected by the lens and adapter.

🆚 Variable ND Adapter vs Standard Adapter

Choose the standard adapter when filters are unnecessary. Choose the Variable ND adapter when exposure control is central to the shooting workflow.

🆚 Variable ND vs Camera ISO

Reducing ISO can help control exposure, but once the camera reaches its lowest practical ISO, it cannot reduce incoming light further.

The Variable ND filter controls the light before it reaches the sensor, allowing the photographer to preserve:

• The preferred aperture

• The preferred shutter speed

• The preferred frame rate

• The camera’s desired ISO range

• The intended motion rendering

🆚 Adapted EF Lenses vs Native RF Lenses

This adapter provides variable ND filtration for compatible EF and EF-S lenses. It does not mount in front of ordinary native RF lenses.

Cameragraphics focuses on current Canon mirrorless equipment and does not stock the DSLR product line, but this adapter provides a valuable production tool for customers who already own compatible EF lenses.

📦 In the Box

• Canon Drop-In Filter Mount Adapter EF-EOS R

• Canon Drop-In Variable ND Filter A

• Canon Extender Cap RF

• Canon RF Rear Lens Dust Cap

• Removable Tripod Mount

• Hex Key for Tripod Mount

• Manufacturer documentation

🎒 Recommended Kit Additions

Consider pairing the adapter with:

• Compatible Canon EOS R or Cinema EOS camera

• Existing compatible EF or EF-S lenses

• Canon Drop-In Clear Filter A

• Canon Drop-In Circular Polarizing Filter A

• Filter storage case

• Lens-cleaning blower

• Microfiber cleaning cloth

• Tripod or video support system

• External monitor with exposure tools

• Matte box for additional light control
