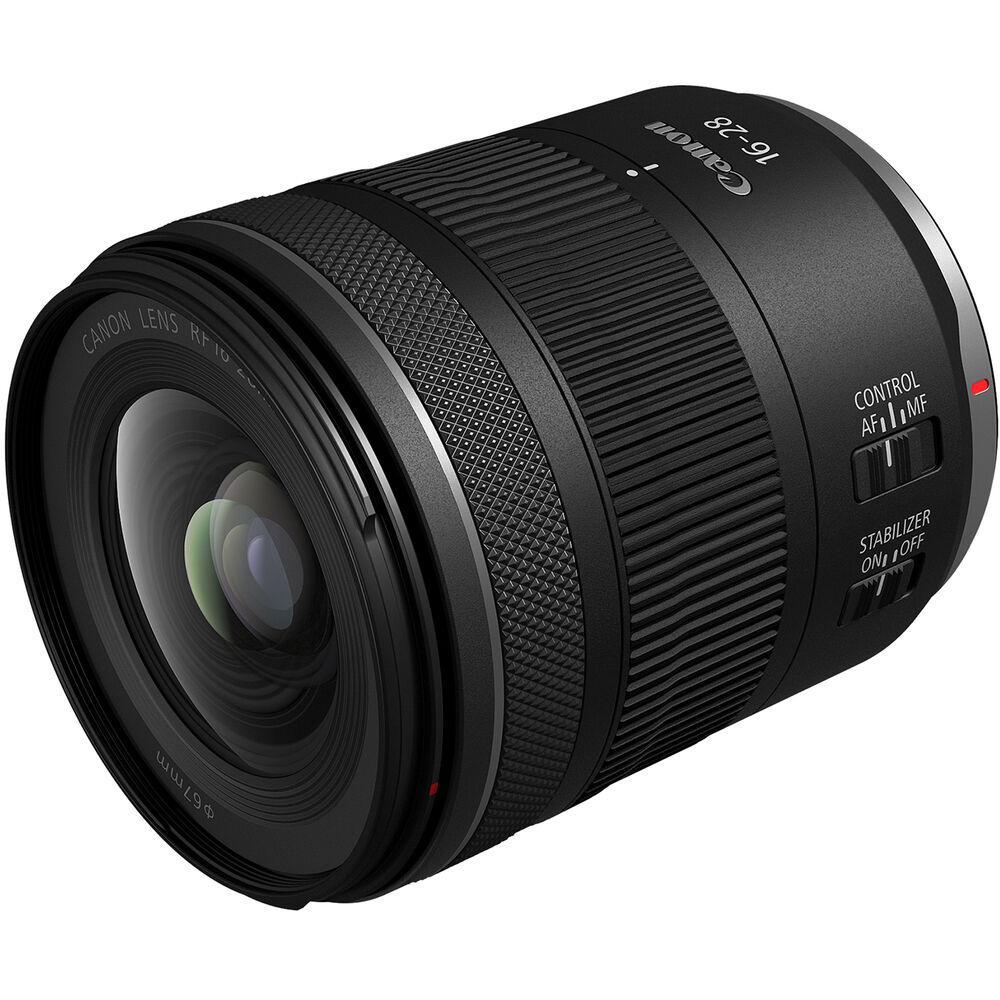

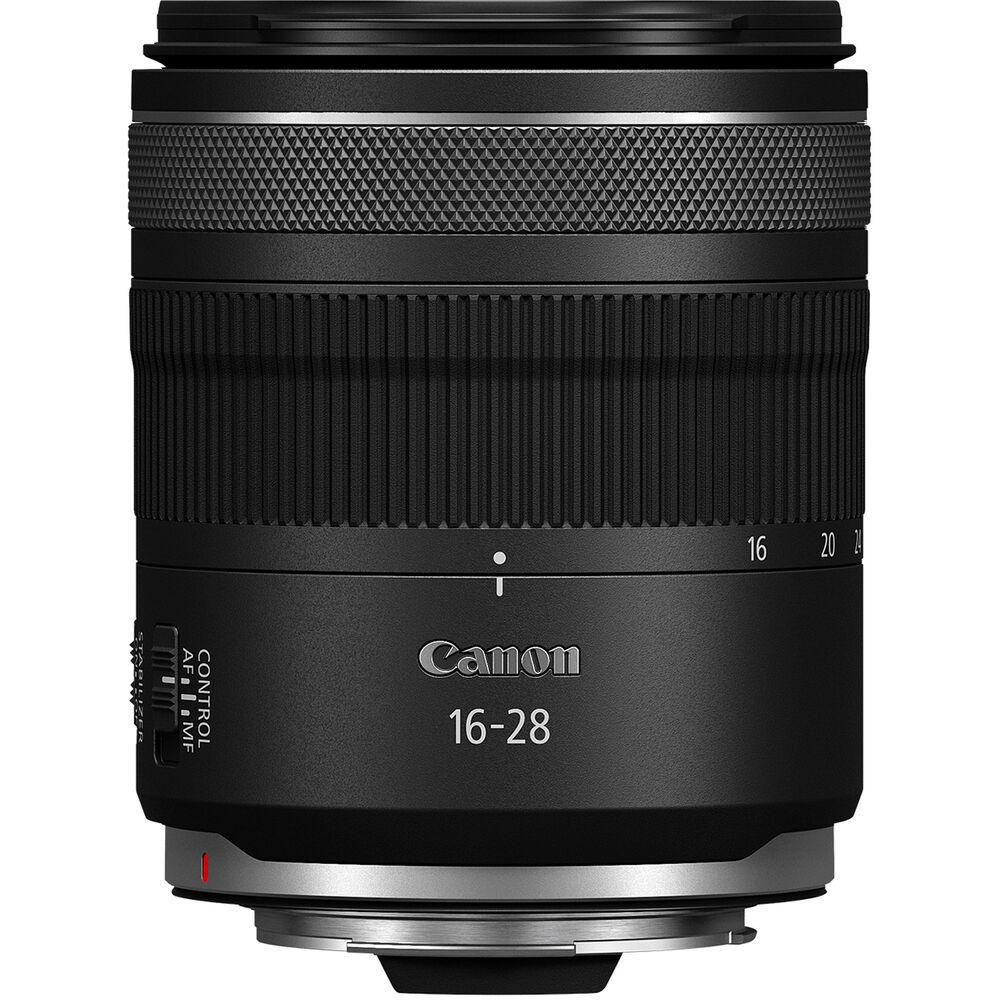

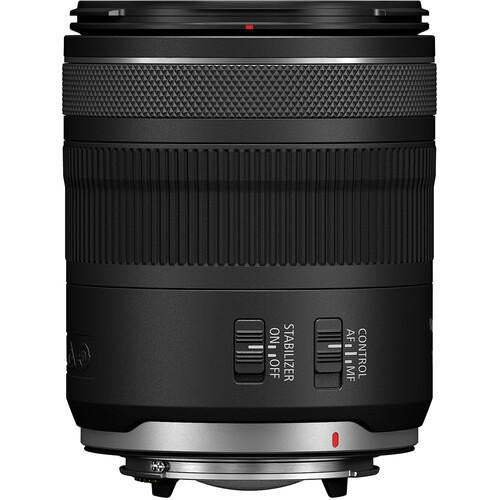

Canon RF 16-28mm f/2.8 IS STM Lens

The Canon RF 16-28mm f/2.8 IS STM combines a bright constant aperture, full-frame ultra-wide coverage and powerful image stabilization in a remarkably compact zoom lens.

Designed for photographers and video creators who want high image quality without the size and price of a traditional professional zoom, it is ideal for landscapes, travel, interiors, architecture, events, astrophotography and filmmaking. Its weather-resistant construction and advanced optical design bring premium capabilities to an accessible, lightweight package.

✨ Key Benefits

• Full-frame 16–28mm ultra-wide zoom range

• Constant f/2.8 maximum aperture

• Up to 5.5 stops of Optical Image Stabilization

• Up to eight stops with compatible IBIS-equipped cameras

• Four UD and two aspherical elements

• Fast and quiet leadscrew-type STM autofocus

• Minimal focus breathing during video

• Weather-resistant construction

• Compact retractable design

• Nine-blade rounded diaphragm

• Up to 0.26x maximum magnification

• Customizable focus/control ring

• Accepts standard 67mm filters

• Weighs approximately one pound

🌄 Versatile Ultra-Wide Coverage

The RF 16-28mm covers a practical range for expansive scenes and creative perspectives.

At 16mm, it is ideal for:

• Landscapes and dramatic skies

• Architecture and interiors

• Real-estate photography

• Astrophotography

• Large groups

• Handheld vlogging

• Establishing shots

• Tight working spaces

Zooming toward 28mm provides a more natural perspective for travel, documentary work, environmental portraits, events and everyday wide-angle photography.

🌙 Constant f/2.8 Maximum Aperture

The lens maintains its bright f/2.8 maximum aperture throughout the entire zoom range.

Compared with an f/4 lens, f/2.8 admits twice as much light. Compared with many variable-aperture ultra-wide zooms, the advantage can be even greater at the long end of the range.

This makes the lens particularly useful for:

• Indoor events

• Night landscapes

• Astrophotography

• Concerts and performances

• Weddings and receptions

• Available-light interiors

• Low-light video production

The constant aperture also prevents exposure from changing while zooming during manual-exposure photography or video.

🖼️ Up to 5.5 Stops of Optical Stabilization

Built-in Optical Image Stabilization provides up to 5.5 stops of shake correction, helping produce sharper handheld images and steadier video.

When paired with a compatible Canon camera featuring In-Body Image Stabilization, Coordinated IS can provide up to eight stops of correction at the center of the image and up to 7.5 stops toward the corners.

This stabilization is especially valuable for:

• Handheld interior photography

• Evening city scenes

• Documentary video

• Travel photography

• Real-estate walkthroughs

• Situations where tripods are restricted

• Creative slow-shutter effects

🔬 Advanced Optical Design

The optical design uses four Ultra-Low Dispersion elements and two aspherical elements to control chromatic aberration, distortion and other optical imperfections.

A large-diameter UD element at the front helps maintain image quality while reducing the weight of the front optical group. This also minimizes changes in balance as the lens is zoomed.

Canon’s Super Spectra Coating helps reduce flare and ghosting while maintaining contrast and accurate color.

Compatible cameras and editing software apply optical corrections that are integral to the lens’s compact design. Photographers processing RAW files should use an up-to-date lens profile for the intended corrected result.

⚡ Fast and Quiet STM Autofocus

A leadscrew-type STM focusing system provides fast, accurate and quiet autofocus for both still photography and video.

This design offers smoother focus transitions than smaller gear-type STM systems while maintaining quiet operation around the camera’s microphone.

The lens also exhibits minimal focus breathing, helping maintain consistent framing as focus moves between near and distant subjects.

🔎 Close-Focusing Versatility

The RF 16-28mm focuses as close as approximately 9.8 inches at 16mm and 7.9 inches at 28mm.

At 28mm, it provides up to 0.26x maximum magnification. This allows photographers to emphasize nearby subjects while still showing the surrounding environment.

Close-focusing applications include:

• Wedding details

• Food and tabletop scenes

• Flowers and plants

• Travel objects

• Architectural details

• Product photography

• Foreground-heavy landscape compositions

🎥 Optimized for Video Creation

The combination of ultra-wide coverage, constant aperture, stabilization and quiet autofocus makes this an excellent video-production lens.

It is well suited for:

• Gimbal work

• Handheld vlogging

• Documentary production

• Real-estate walkthroughs

• Establishing shots

• Weddings and events

• Travel filmmaking

• Interviews in confined spaces

• Low-light content creation

Its size and weight closely complement the Canon RF 28-70mm f/2.8 IS STM, allowing creators to switch between the two lenses with minimal gimbal rebalancing.

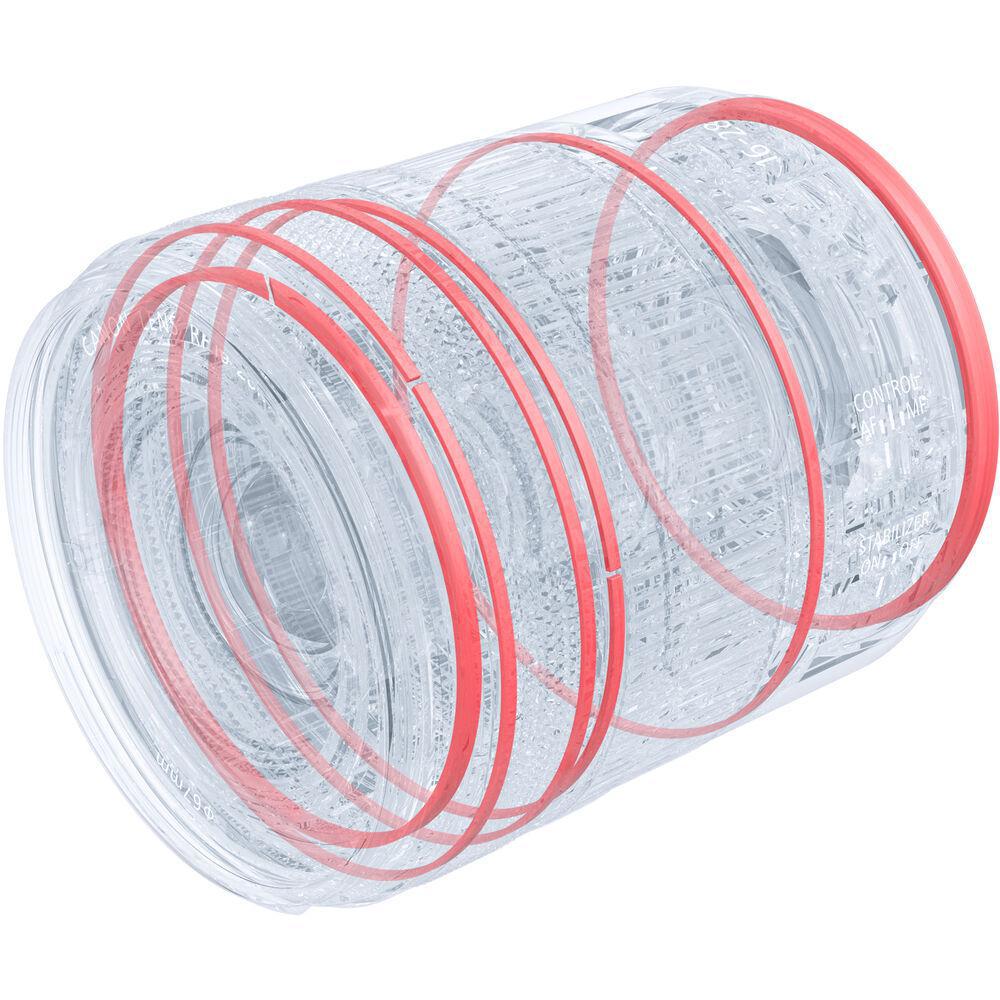

🛡️ Weather-Resistant Construction

Weather-resistant seals around key areas help protect the lens when working in dust, light moisture and challenging outdoor environments.

The construction provides durability approaching Canon’s L-series standards, although the RF 16-28mm is not officially an L-series lens.

Weather resistance does not make the lens waterproof, and it should not be submerged or exposed unnecessarily to severe conditions.

🎛️ Configurable Focus and Control Ring

A switch allows the lens ring to function as either a manual-focus ring or a customizable control ring.

When used as a control ring, it can be assigned to settings such as:

• Aperture

• Shutter speed

• ISO

• Exposure compensation

Its click-free operation allows smooth and quiet adjustments during video recording.

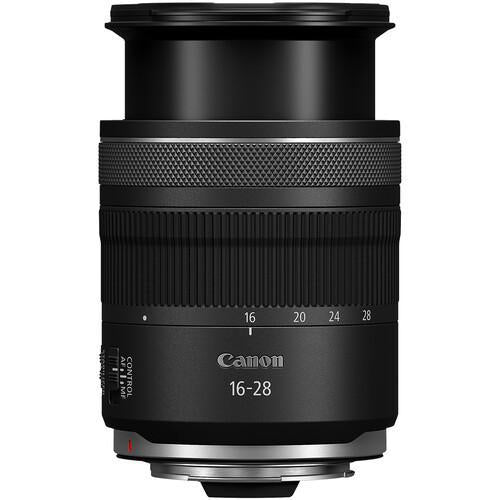

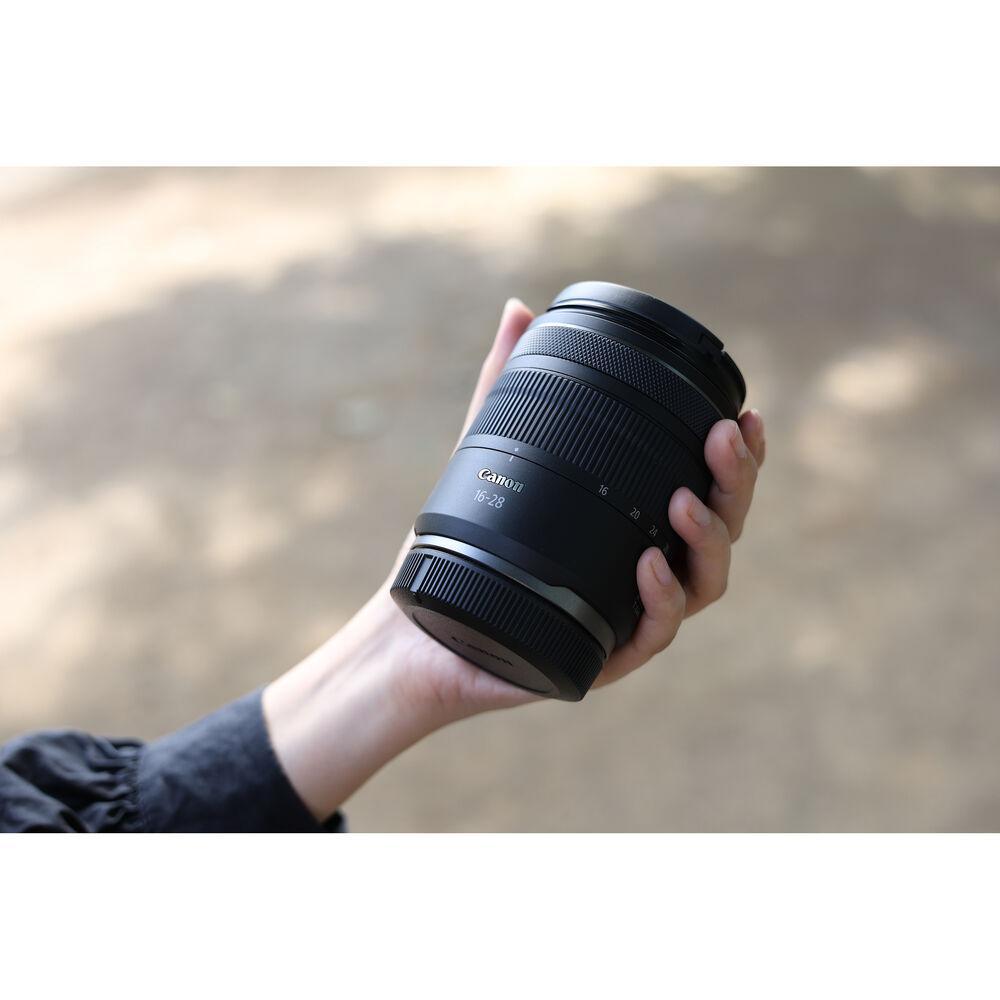

🎒 Compact Retractable Design

The RF 16-28mm weighs approximately one pound and retracts for compact storage.

This makes it considerably easier to carry than most constant-f/2.8 full-frame ultra-wide zooms. It balances especially well on compact cameras such as the EOS R8 while remaining a capable companion for professional EOS R bodies.

Before shooting, the zoom ring must be rotated from the storage position into the marked focal-length range.

👤 Who Is It For?

The Canon RF 16-28mm f/2.8 is an excellent choice for:

• Landscape and travel photographers

• Wedding and event photographers

• Astrophotographers

• Architecture and real-estate photographers

• Vloggers and video creators

• Documentary filmmakers

• Concert and performance photographers

• Advanced enthusiasts wanting a bright ultra-wide zoom

• Professionals building a compact f/2.8 system

• Anyone wanting premium capability without L-series size and cost

📷 Camera Compatibility

The RF 16-28mm is compatible with all Canon EOS R-series mirrorless cameras.

On a full-frame camera, it provides its complete 16–28mm ultra-wide field of view.

On an APS-C EOS R-series camera, it provides an approximately 26–45mm equivalent angle of view. This creates a useful moderate-wide to normal range, but it is no longer an ultra-wide lens on an APS-C body.

⚖️ RF 16-28mm f/2.8 Compared with the RF 15-30mm STM

Choose the RF 16-28mm f/2.8 when low-light performance, a constant aperture, stronger construction and premium image quality are the priorities.

Choose the RF 15-30mm f/4.5-6.3 IS STM when affordability and a slightly wider, longer zoom range are more important.

The 16-28mm is the stronger choice for events, night work and advanced video. The 15-30mm is the better entry-level value.

⚖️ RF 16-28mm f/2.8 Compared with the RF 14-35mm f/4L

Choose the RF 16-28mm f/2.8 when a brighter aperture, lower-light performance and compact size are most important.

Choose the RF 14-35mm f/4L when maximum width, greater zoom range, premium L-series controls and traditional professional construction are the priorities.

The 16-28mm is smaller and one stop brighter. The 14-35mm is wider, reaches farther and includes its lens hood and pouch.

⚖️ RF 16-28mm f/2.8 Compared with the RF 15-35mm f/2.8L

Both lenses provide a constant f/2.8 aperture, but the RF 16-28mm STM is significantly smaller, lighter and more affordable.

The RF 15-35mm f/2.8L begins slightly wider, reaches farther, uses faster Nano USM autofocus and provides full professional L-series construction and controls.

Choose the 16-28mm for travel, portability and value. Choose the 15-35mm for demanding professional assignments and maximum versatility.

⚖️ RF 16-28mm and RF 28-70mm f/2.8 Kit

The RF 16-28mm pairs naturally with the Canon RF 28-70mm f/2.8 IS STM.

Together, the two lenses provide continuous 16–70mm coverage with:

• Constant f/2.8 apertures

• Optical Image Stabilization

• Compact retractable designs

• Similar handling and controls

• Weather-resistant construction

• Matching 67mm filter threads

This combination creates a lightweight alternative to Canon’s larger professional f/2.8 zoom system.

📦 In the Box

• Canon RF 16-28mm f/2.8 IS STM Lens

• Canon E-67 II Lens Cap

• Canon RF Lens Dust Cap

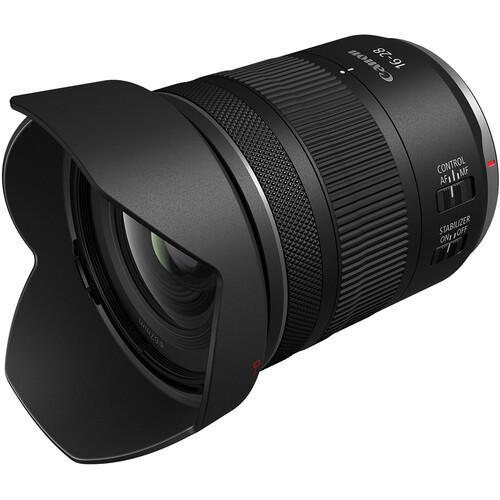

The compatible Canon EW-73E lens hood and protective lens case are sold separately.

🧰 Recommended Kit Additions

Complete your compact f/2.8 system with:

• Canon full-frame EOS R-series camera

• Canon EW-73E lens hood

• 67mm protective filter

• 67mm circular polarizing filter

• 67mm neutral-density filter

• Compact tripod or gimbal

• Professional camera bag

• Lens-cleaning kit

• Canon RF 28-70mm f/2.8 IS STM

• Canon RF 70-200mm lens for extended telephoto coverage
