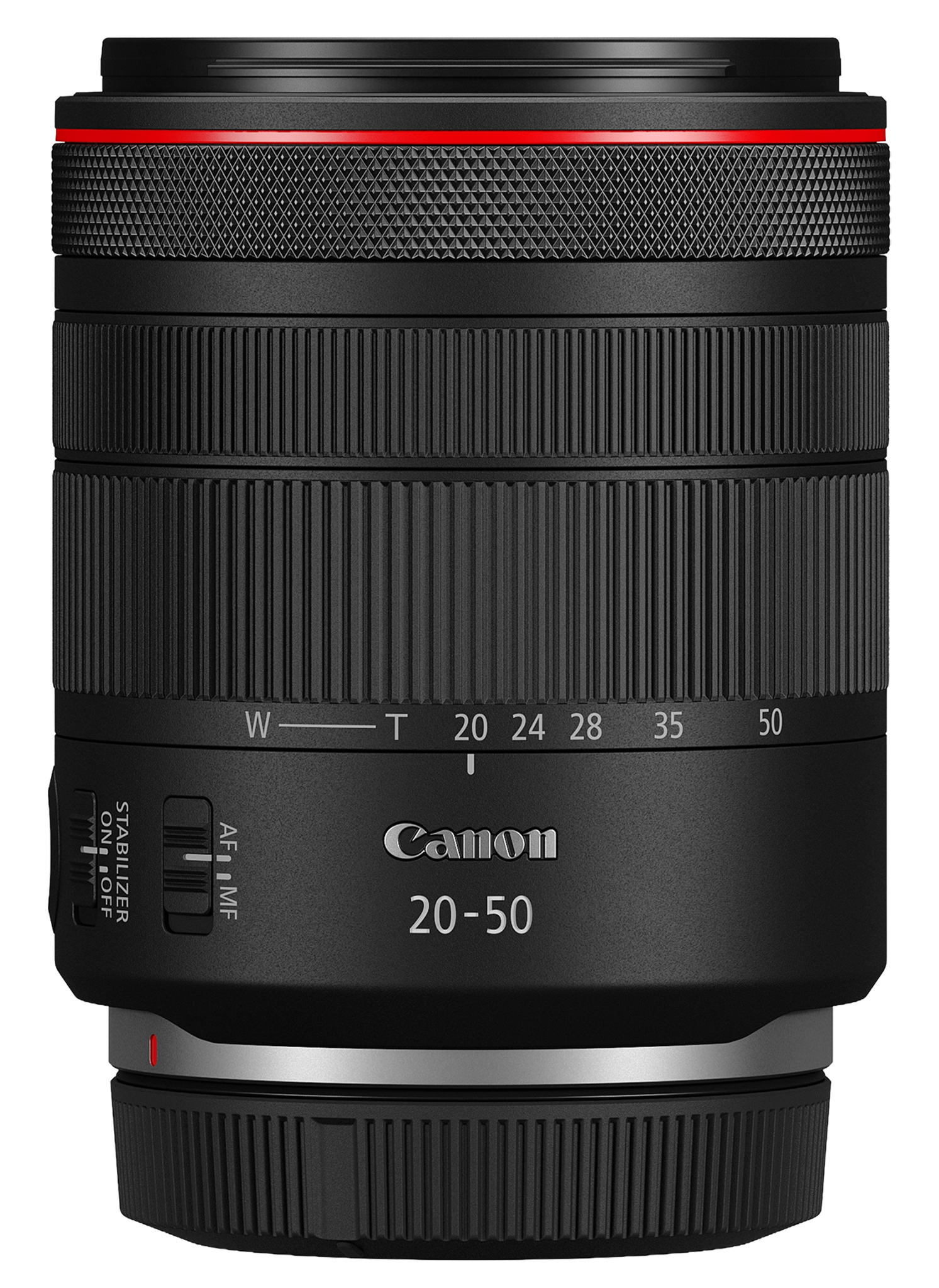

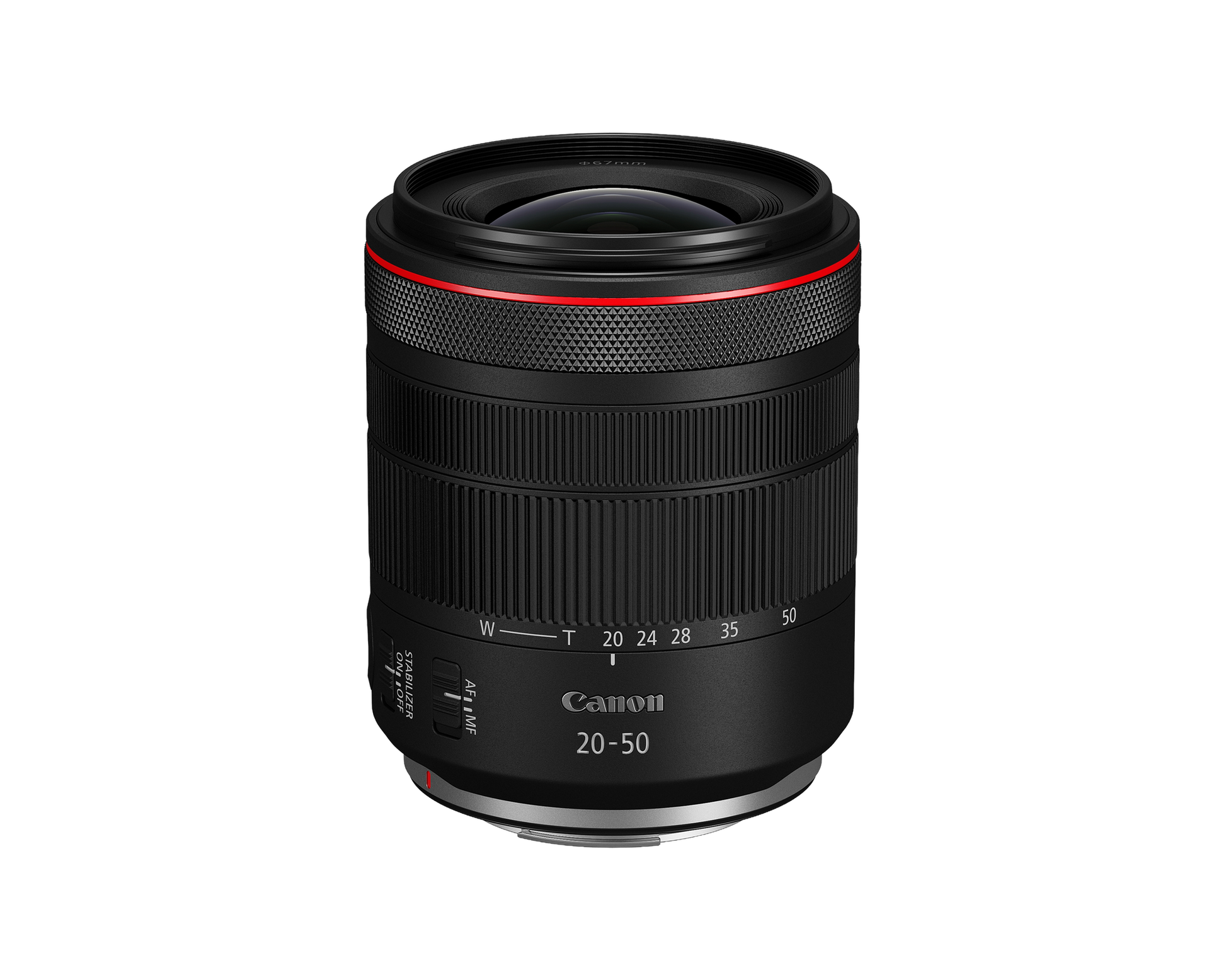

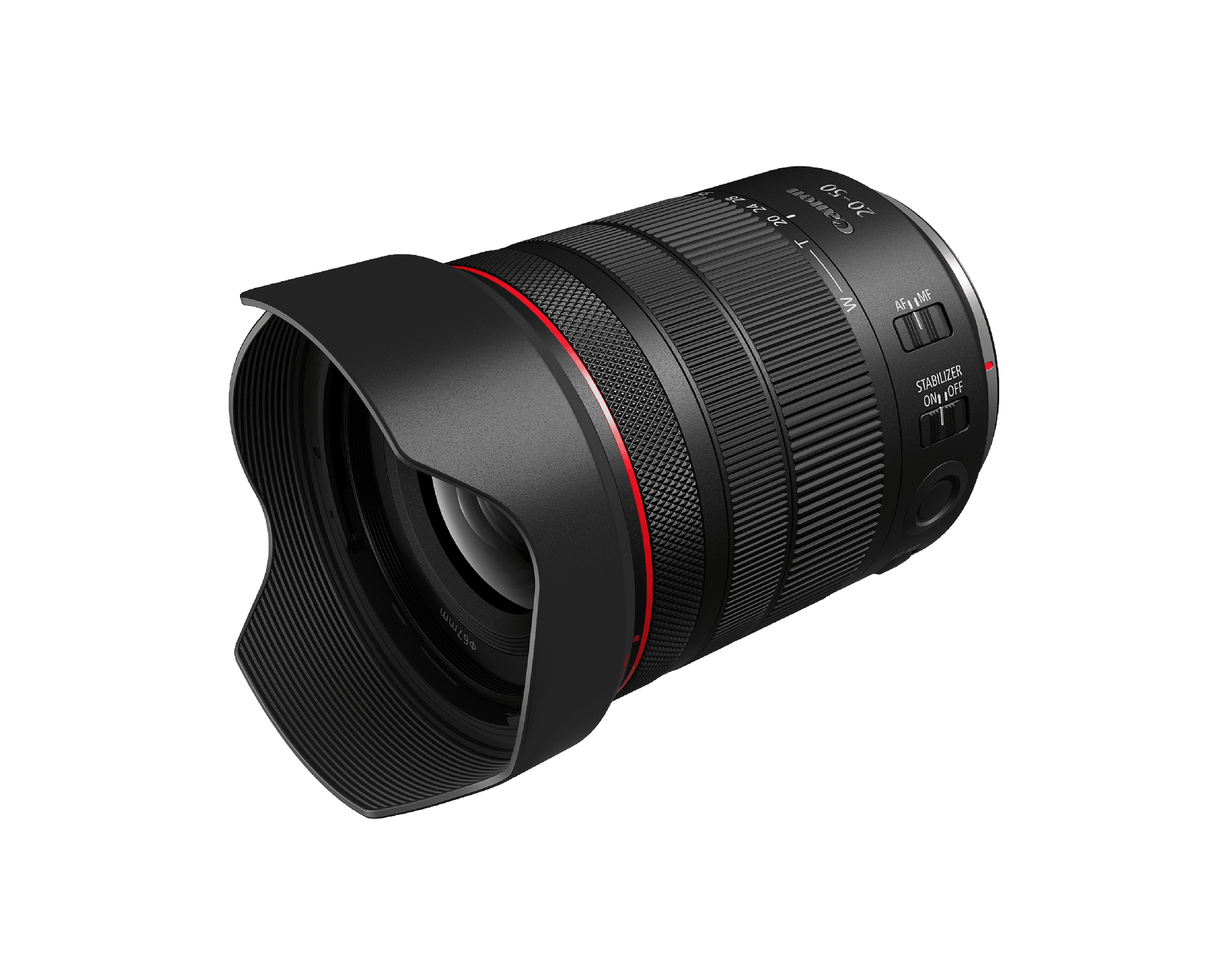

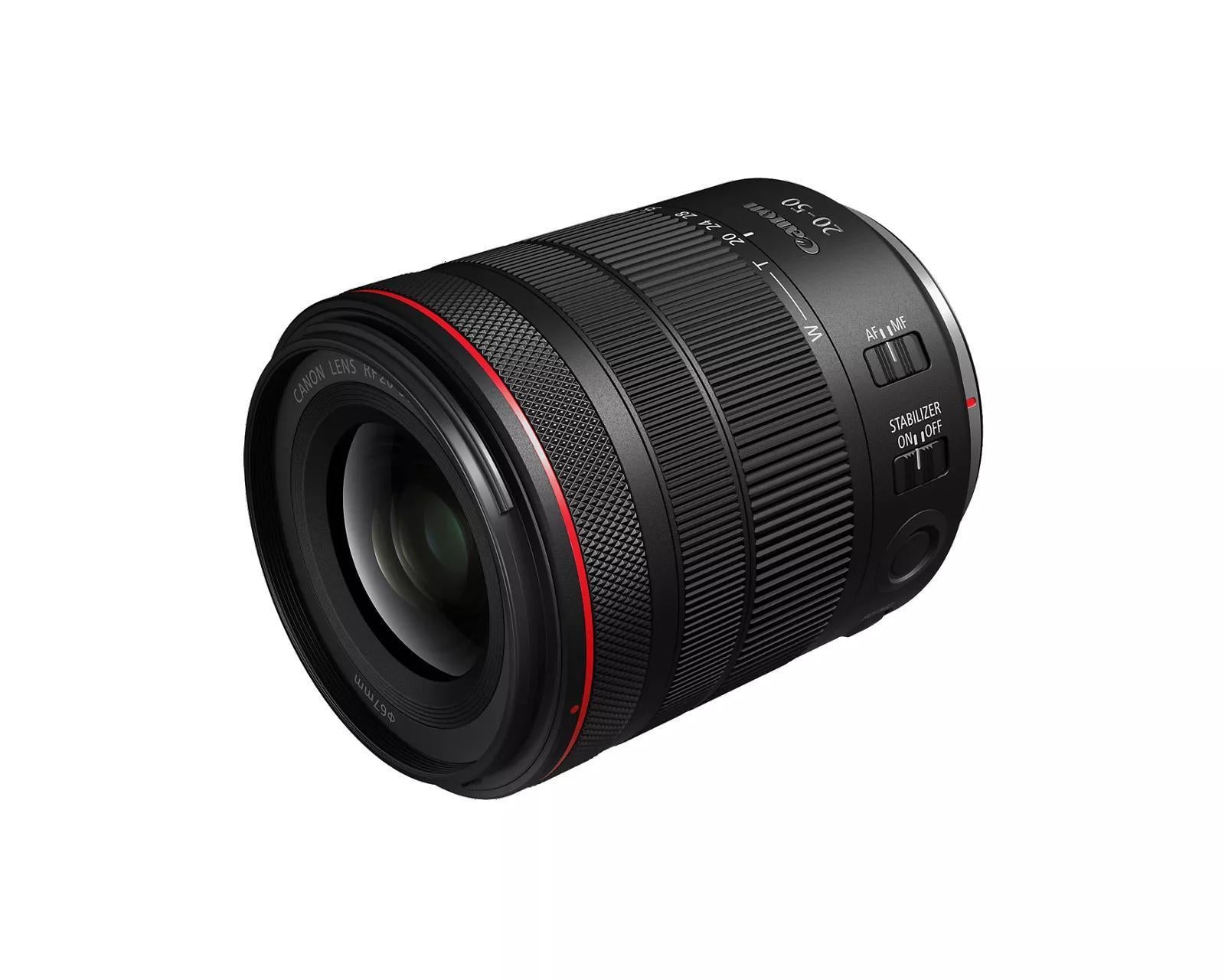

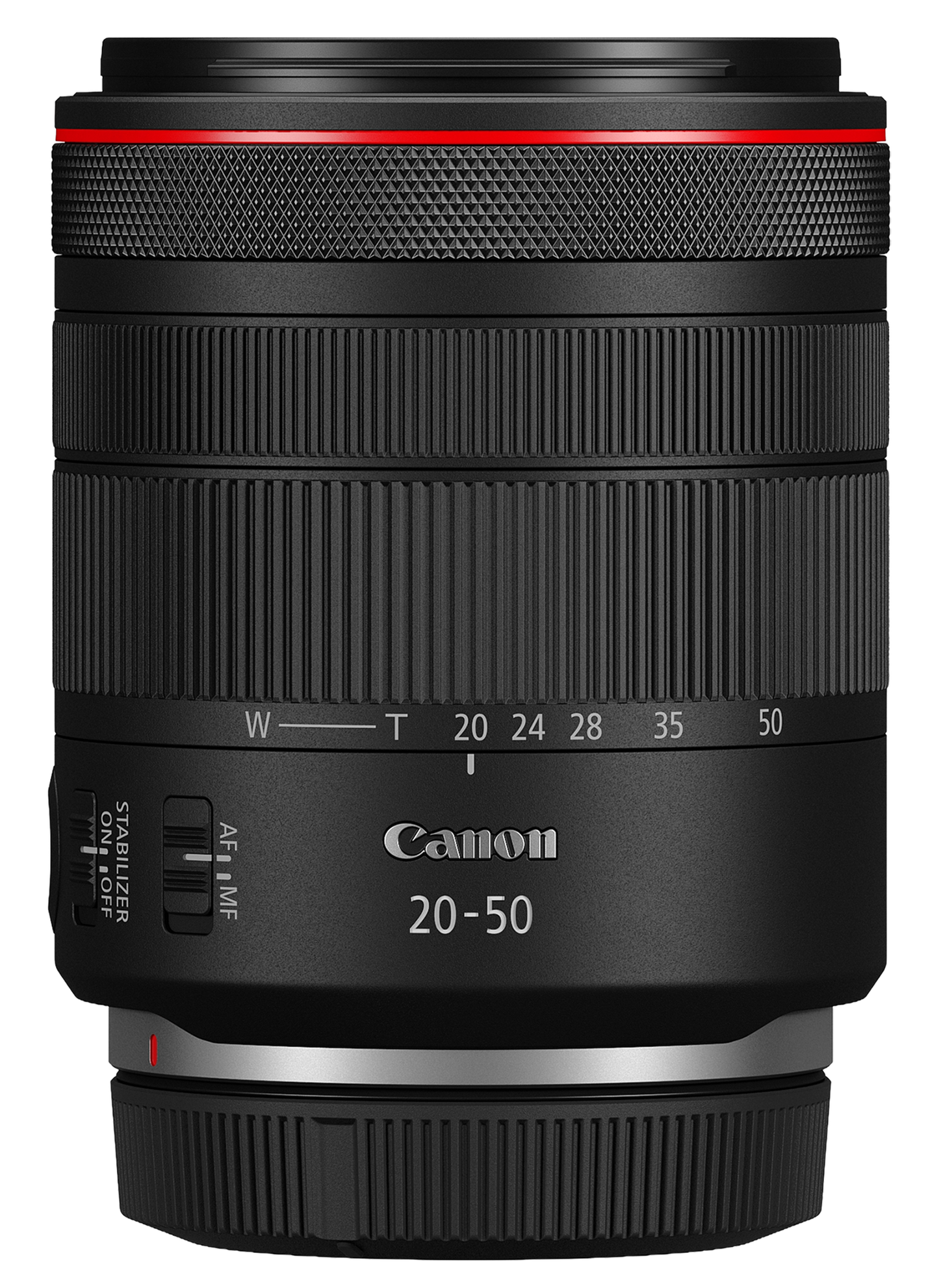

Canon RF 20-50mm f/4 L IS USM PZ Lens

The Canon RF 20-50mm f/4 L IS USM PZ is a professional full-frame hybrid zoom combining an exceptionally wide 20mm perspective with internal power zoom, traditional manual zoom operation and advanced optical stabilization.

Designed for filmmakers, content creators and hybrid photographers, it delivers smooth powered zooming without requiring an external motor. Its compact L-series construction, constant f/4 aperture and versatile wide-to-standard range make it especially well suited to handheld video, gimbal work, interiors, events and visual storytelling.

🏷️ Product Information

• Lens mount: Canon RF

• Format: Full frame

• Filter size: 67mm

• Lens construction: 13 elements in 11 groups

• Weight: Approximately 420g

✨ Key Benefits

• Ultra-wide-to-standard 20-50mm zoom range

• Constant f/4 maximum aperture

• Canon L-series optical quality and construction

• Switchable Power Zoom and Manual Zoom operation

• Internal zoom design maintains the lens’s physical length

• Three Nano USM motors for autofocus and zoom operation

• Up to six stops of optical image stabilization

• Up to eight stops of Coordinated IS

• Reduced focus breathing for professional video

• Customizable Lens Function button

• Dedicated control ring

• Dust- and weather-resistant construction

• Fluorine-coated front element

• Compact and lightweight 420g design

• Compatible with full-frame Canon EOS R cameras

🎬 Canon’s First Switchable Full-Frame Power Zoom

The RF 20-50mm is Canon’s first full-frame RF lens with both integrated Power Zoom and conventional Manual Zoom operation.

A dedicated PZ/MZ switch lets creators choose the preferred control method:

• Power Zoom: Smooth, motorized zooming for video

• Manual Zoom: Familiar hands-on zoom-ring operation for photography

No external power-zoom adapter or motor is required.

⚡ Three Nano USM Motors

The lens uses three compact Canon Nano USM motors:

• Two dedicated motors move the zoom groups

• One dedicated motor controls autofocus

This arrangement enables quiet, responsive autofocus and smooth powered zooming. It is particularly valuable when recording live audio or capturing a shot that requires a controlled focal-length transition.

🔄 Internal Zoom Design

The lens does not change length while zooming. Its internal zoom mechanism maintains consistent balance and prevents the barrel from extending.

This provides several benefits:

• More predictable handheld balance

• Easier gimbal setup

• Consistent matte-box positioning

• Reduced exposure to dust and moisture

• A compact working footprint in confined spaces

📐 Exceptionally Wide 20mm Starting Point

The 20mm wide end captures significantly more of a scene than conventional 24-70mm or 24-105mm standard zooms.

It is particularly useful for:

• Interiors and architecture

• Establishing shots

• Handheld video

• Gimbal footage

• Real-estate walkthroughs

• Environmental portraits

• Landscapes

• Groups in confined spaces

• Self-recorded content

At 50mm, the lens provides a natural perspective for interviews, portraits, details and everyday photography.

🌙 Constant f/4 Aperture

The maximum aperture remains at f/4 throughout the entire zoom range. This maintains consistent exposure and depth-of-field behavior while zooming.

A nine-blade rounded diaphragm produces smooth background rendering and attractive out-of-focus highlights.

✋ Advanced Image Stabilization

Built-in Optical Image Stabilization provides up to approximately six stops of shake correction when the lens is used on its own.

When paired with a compatible Canon EOS R camera featuring In-Body Image Stabilization, Coordinated IS can provide up to approximately eight stops of correction at both the center and edges of the frame.

This is especially valuable for handheld video, low-light interiors and photography at slower shutter speeds.

🔍 Professional L-Series Optics

The 13-element, 11-group optical design incorporates:

• Three Ultra-low Dispersion elements

• Two aspherical elements

• Super Spectra Coating

• Air Sphere Coating

These technologies help control chromatic aberration, distortion, flare and ghosting while maintaining excellent sharpness and contrast throughout the frame.

🎥 Reduced Focus Breathing

Canon has optically suppressed focus breathing to reduce unwanted changes in framing as focus moves between near and distant subjects.

This produces more natural-looking focus transitions for interviews, narrative filmmaking, product demonstrations and other professional video applications.

🌼 Excellent Close-Focusing Performance

The lens focuses as close as approximately 24cm and reaches a maximum magnification of 0.33x at 50mm.

This provides useful close-up capability for products, food, flowers, wedding details and creative B-roll without changing to a dedicated macro lens.

📱 Flexible Power-Zoom Control

Power Zoom can be operated through the spring-loaded wide/telephoto section of the lens’s zoom ring.

On supported Canon cameras, zooming may also be controlled through a built-in camera zoom lever. Compatible remote options include:

• Canon Camera Connect

• Canon BR-E1 Bluetooth Remote

• Canon BR-E2 Bluetooth Remote

• Supported camera controls

This makes the lens useful for solo creators, remote cameras, live productions and shots where touching the camera could introduce unwanted movement.

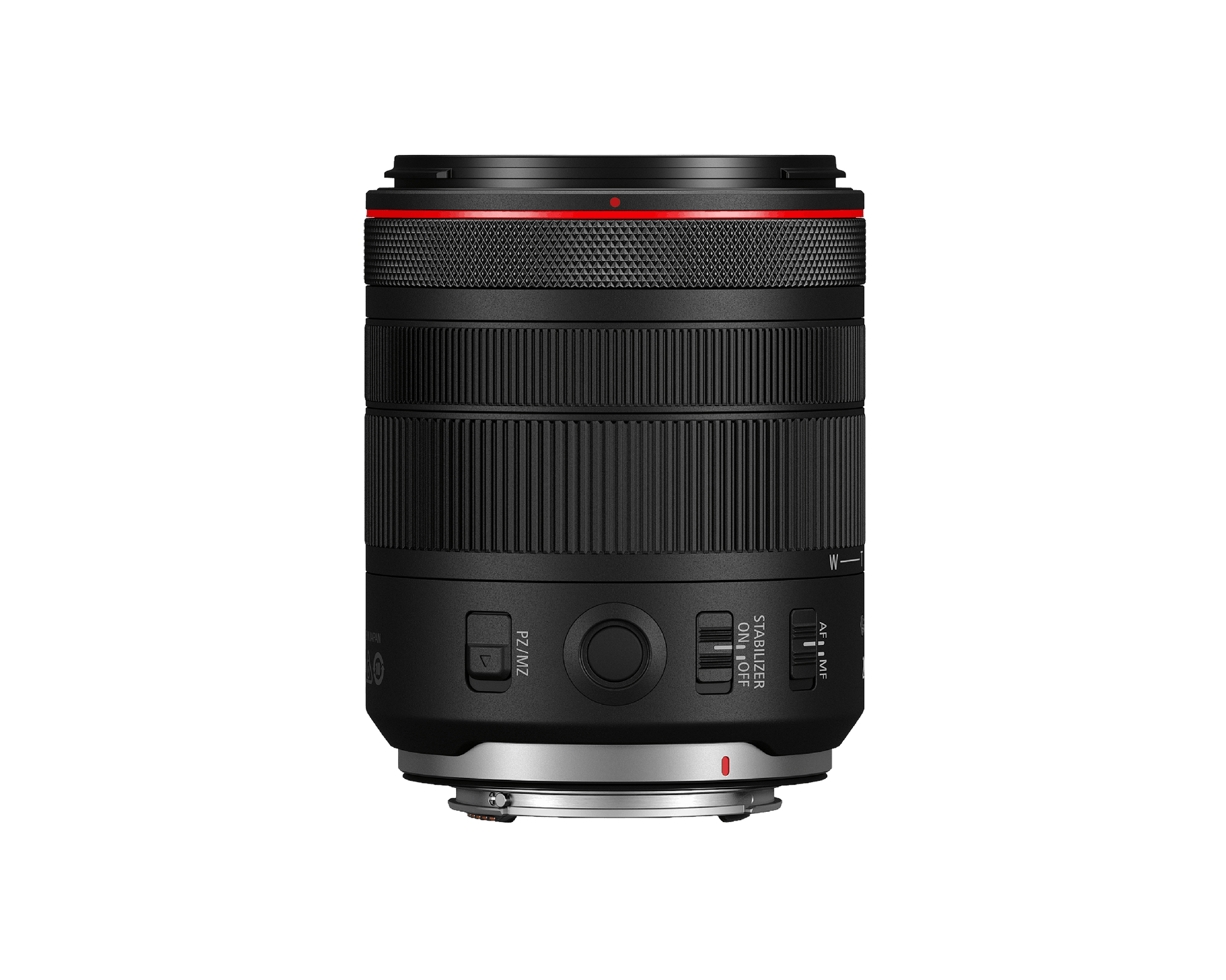

🎛️ Professional Controls

The lens includes:

• Power Zoom/Manual Zoom selector

• AF/MF switch

• Manual-focus ring

• Dedicated Canon control ring

• Customizable Lens Function button

• Image Stabilizer switch

• Internal zoom mechanism

The control ring can be assigned to frequently used camera settings such as aperture, shutter speed, ISO or exposure compensation.

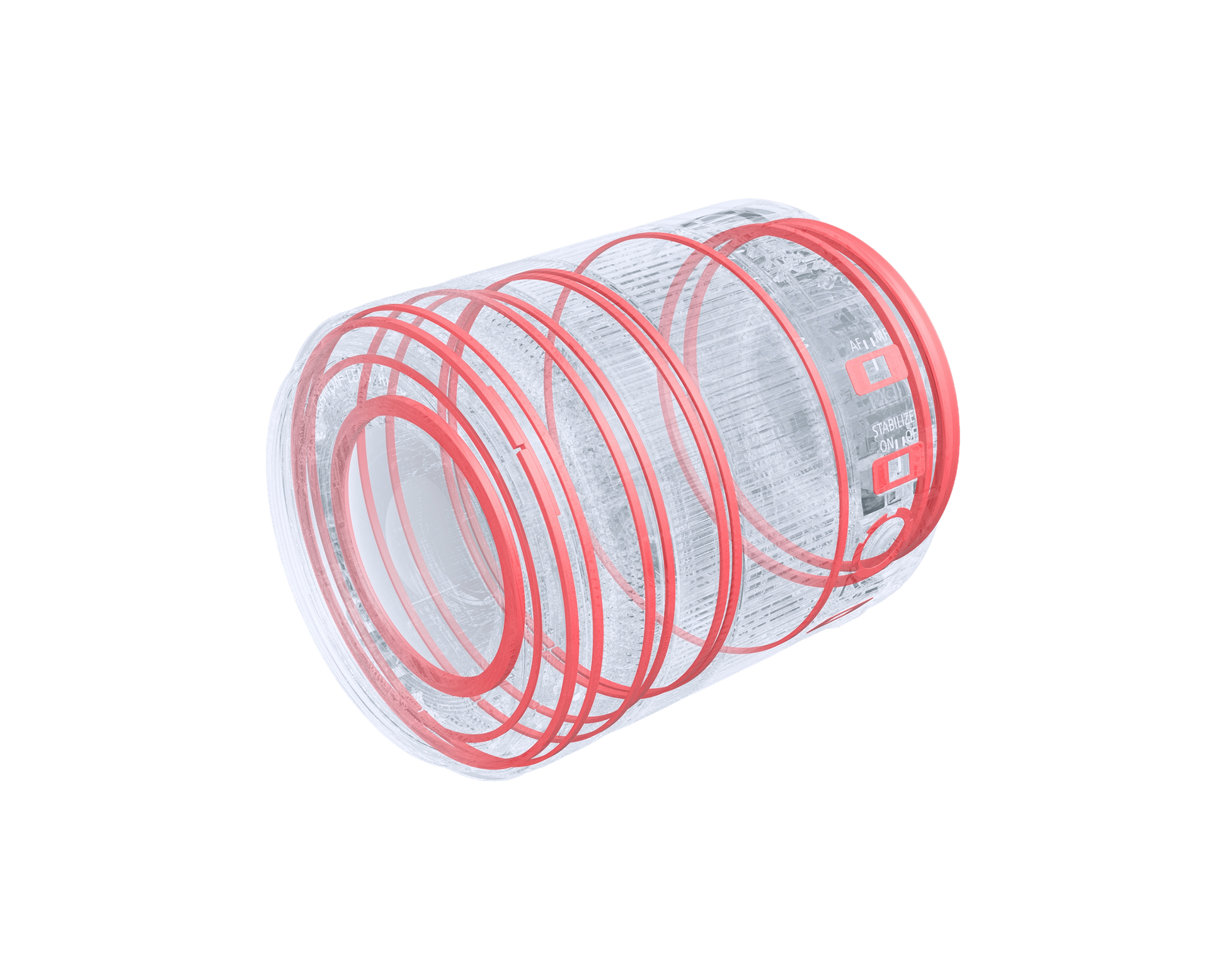

🛡️ Compact L-Series Construction

At approximately 420g and 98.4mm long, the lens is remarkably compact for a professional full-frame power zoom.

Dust- and weather-resistant construction provides added confidence during demanding assignments. A fluorine coating on the front element helps repel moisture and oil while making fingerprints easier to remove.

👤 Ideal For

• Professional filmmakers

• Hybrid photographers and videographers

• Wedding and event production

• Documentary filmmaking

• Corporate video

• Live streaming and podcast production

• Social-media content creation

• Real-estate and architectural work

• Gimbal and handheld operation

• Travel and landscape photography

• Solo creators using remote cameras

⚖️ How Does It Compare?

Compared with the Canon RF 24-105mm f/4 L IS USM

The 24-105mm provides substantially more telephoto reach and is more versatile for general photography. The 20-50mm begins significantly wider and adds internal power zoom for professional video workflows.

Compared with the Canon RF 24-70mm f/2.8 L IS USM

The 24-70mm provides a brighter f/2.8 aperture and greater portrait reach. The 20-50mm is wider, lighter and offers integrated power-zoom functionality.

Compared with the Canon RF 15-35mm f/2.8 L IS USM

The 15-35mm provides a more expansive ultra-wide perspective and a brighter aperture. The 20-50mm extends to a natural standard focal length and offers internal powered zooming.

Compared with a Cinema Servo Zoom

A dedicated cinema servo lens may provide more specialized controls and a broader production interface. The RF 20-50mm is substantially smaller and lighter while integrating smoothly with Canon EOS R hybrid cameras.

📦 In the Box

• Canon RF 20-50mm f/4 L IS USM PZ Lens

• Canon EW-73H Lens Hood

• Canon E-67 II Front Lens Cap

• Canon RF Rear Lens Cap

• Canon LP1219 Lens Case

• Manufacturer documentation

🧰 Suggested Kit Pairings

Build a professional Canon hybrid system with:

• Canon EOS R6 V

• Canon EOS R5 Mark II

• Canon EOS R6 Mark III

• Canon Cinema EOS camera with an RF mount

• 67mm circular polarizing filter

• 67mm variable neutral-density filter

• Canon BR-E1 or BR-E2 Bluetooth Remote

• Professional gimbal or video tripod

• External microphone or wireless audio system

• High-speed memory cards

• Additional camera batteries
