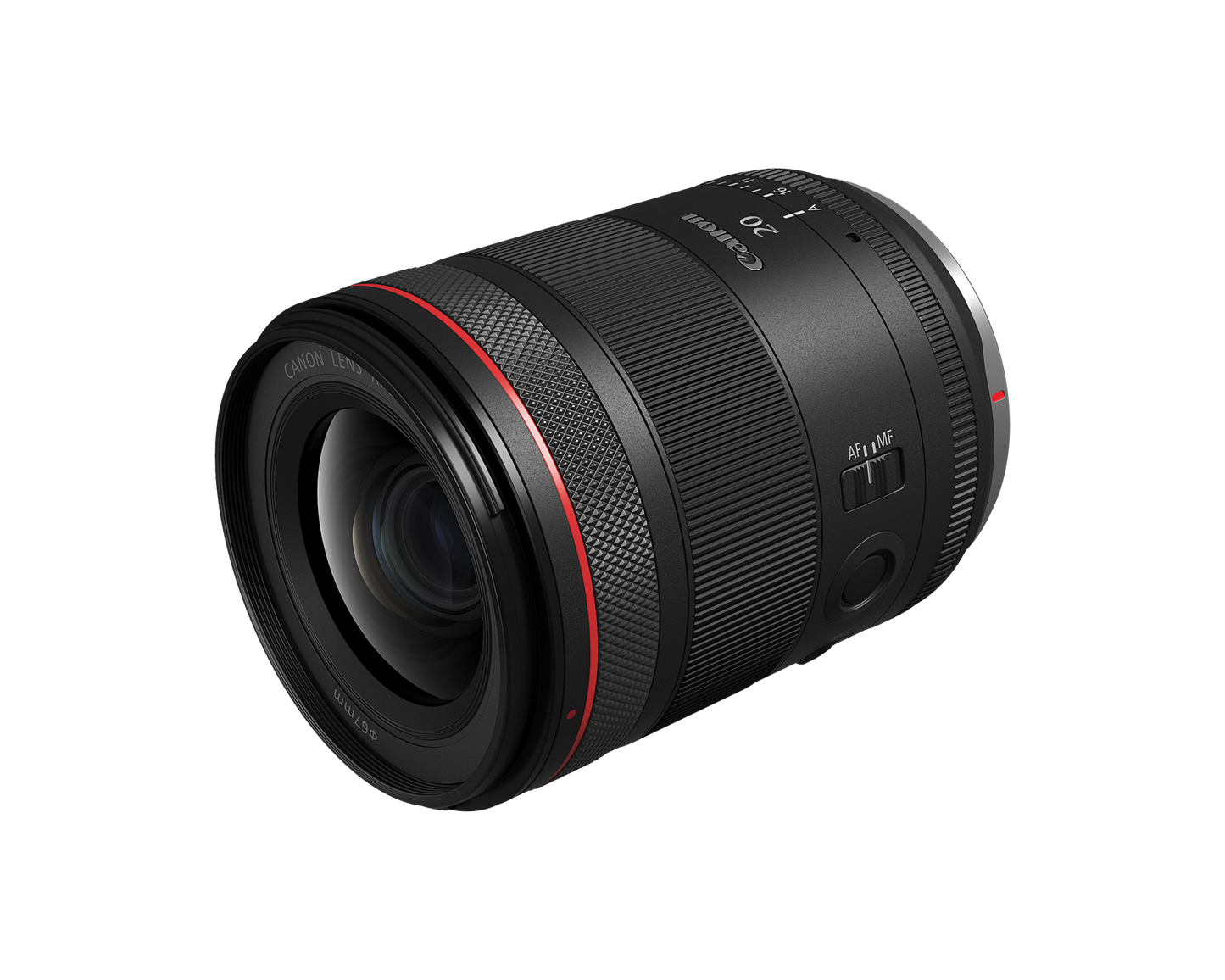

Canon RF 20mm f/1.4L VCM Lens

The Canon RF 20mm f/1.4L VCM is a professional ultra-wide prime built for both high-end still photography and cinematic video production. Its expansive 20mm perspective, exceptionally bright f/1.4 aperture and advanced optical design make it an outstanding choice for landscapes, astrophotography, architecture, commercial imagery and low-light filmmaking.

As part of Canon’s hybrid prime series, it combines traditional L-series image quality and durability with video-focused features including a manual iris ring, minimal focus breathing and nearly silent VCM autofocus.

✨ Key Benefits

• Ultra-wide 20mm full-frame focal length

• Exceptional f/1.4 maximum aperture

• Professional Canon L-series optics

• Hybrid design for still photography and video

• Fast and quiet Voice Coil Motor autofocus

• Dedicated manual iris ring

• Minimal focus breathing

• One Super UD, two UD and two aspherical elements

• Canon BR optical element

• Advanced anti-reflective coatings

• 11-blade rounded diaphragm

• 7.9-inch minimum focusing distance

• Weather-resistant construction

• Programmable lens function button

• Customizable control ring

• Front and rear filter compatibility

• Lens hood, pouch and rear filter holder included

🌄 Expansive 20mm Perspective

The 20mm focal length provides a dramatic ultra-wide view while remaining easier to compose with than more extreme 14mm or 16mm lenses.

It is especially effective for:

• Landscapes and dramatic skies

• Astrophotography and starscapes

• Architecture and interiors

• Commercial photography

• Environmental portraits

• Street and documentary photography

• Establishing shots

• Music videos

• Tight production spaces

The perspective can emphasize foreground subjects while retaining an expansive view of the environment.

🌙 Exceptional f/1.4 Aperture

The bright f/1.4 maximum aperture allows the RF 20mm to gather substantially more light than most ultra-wide zoom lenses.

Compared with an f/2.8 lens, f/1.4 admits four times as much light. This allows photographers and filmmakers to use faster shutter speeds or lower ISO settings in dim conditions.

The lens is particularly well suited for:

• Astrophotography

• Night landscapes

• Concerts and performances

• Weddings and receptions

• Available-light interiors

• Documentary filmmaking

• Low-light commercial productions

The combination of a close subject and f/1.4 aperture can also create pronounced background separation rarely associated with an ultra-wide lens.

🌌 Built for Astrophotography

The RF 20mm f/1.4L is an especially compelling option for night-sky photography.

Its wide field of view captures a large portion of the sky, while the f/1.4 aperture allows shorter exposures and lower ISO settings. This can help preserve pinpoint stars while reducing image noise.

The lens’s advanced optical elements help control color fringing and other aberrations around bright stars and high-contrast subjects.

Its rear filter holder also allows astrophotographers to use cut gel or polyester filters without placing a large filter system in front of the lens.

🔬 Advanced L-Series Optics

The optical design contains 15 elements in 11 groups, including:

• One Super UD element

• Two UD elements

• Two aspherical elements

• One BR optical element

Canon’s Blue Spectrum Refractive optics help control difficult blue-wavelength chromatic aberration for cleaner edges and more accurate color.

Several advanced coatings reduce flare and ghosting while maintaining contrast:

• Super Spectra Coating

• Subwavelength Structure Coating

• Air Sphere Coating

A fluorine coating on the front element helps resist fingerprints, dirt and moisture while making the surface easier to clean.

🎯 Fast, Quiet VCM Autofocus

A Voice Coil Motor drives the primary focusing group, providing exceptionally fast, accurate and nearly silent autofocus.

This performance suits both fast-moving still subjects and professional video production. Focus breathing is also extremely well controlled, helping framing remain consistent as focus shifts between near and distant subjects.

The VCM requires electrical power to hold its internal position. Slight movement or sound may be noticed when the lens is detached or the camera is turned off; this is normal.

🎥 Hybrid Photo and Cinema Design

The RF 20mm is part of Canon’s coordinated family of hybrid primes. Its physical dimensions and control layout closely match the other f/1.4L VCM lenses, simplifying lens changes and reducing the need to rebalance compatible video rigs.

Video-focused features include:

• Dedicated iris ring

• Smooth aperture adjustment

• Minimal focus breathing

• Nearly silent autofocus

• Programmable lens function button

• Customizable control ring

• Rear filter support

• Consistent handling with other VCM primes

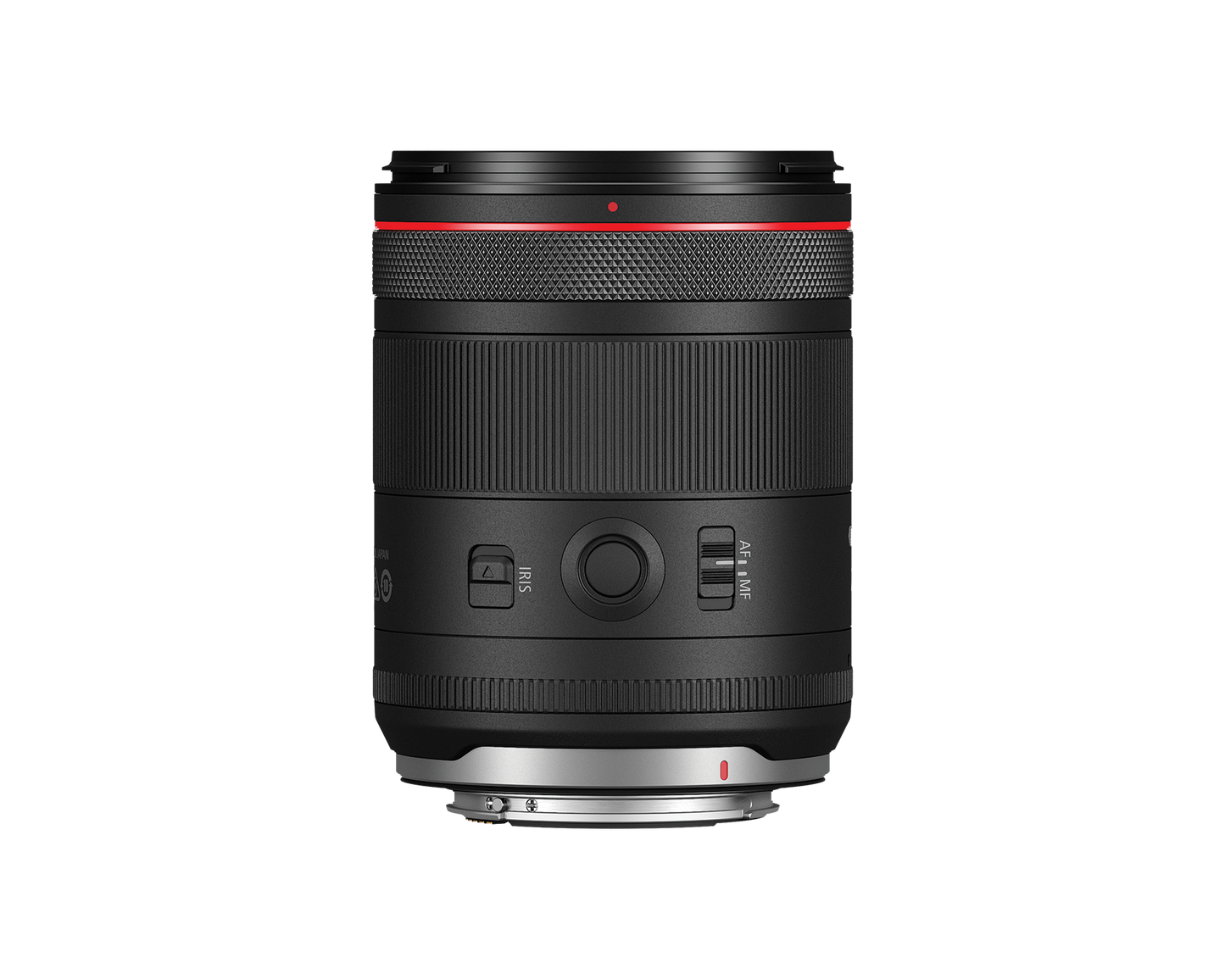

🎛️ Dedicated Iris Ring

The manual iris ring allows smooth, direct aperture control from f/1.4 through f/16 during video recording.

The iris ring can also control aperture for still photography when used with compatible newer cameras, including the EOS R1 and EOS R5 Mark II. Still-photo operation is not supported on every earlier EOS R-series model.

A lock position helps prevent unintended aperture adjustments when the ring is not being used.

🔎 Close-Focusing Capability

The RF 20mm focuses as close as approximately 7.9 inches and provides up to 0.19x maximum magnification.

This allows photographers to position a subject close to the lens while preserving a broad environmental background.

Creative applications include:

• Environmental portraits

• Food and tabletop scenes

• Wedding details

• Commercial products

• Flowers and plants

• Architectural features

• Foreground-heavy landscapes

🎨 11-Blade Rounded Diaphragm

An 11-blade rounded diaphragm helps produce smooth, attractive out-of-focus areas and rounded highlights.

This is especially valuable when working close to a subject at f/1.4, allowing the photographer to combine an expansive perspective with strong foreground or background separation.

🎞️ Front and Rear Filter Support

The RF 20mm accepts conventional 67mm screw-in filters at the front, including protective, polarizing and neutral-density filters.

An included rear filter holder accepts user-cut gel or polyester filters. Rear filtration is especially useful for:

• Astrophotography filters

• Specialized color filters

• Neutral-density material

• Video-production filters

• Situations where stacking front filters would be inconvenient

🛡️ Professional L-Series Construction

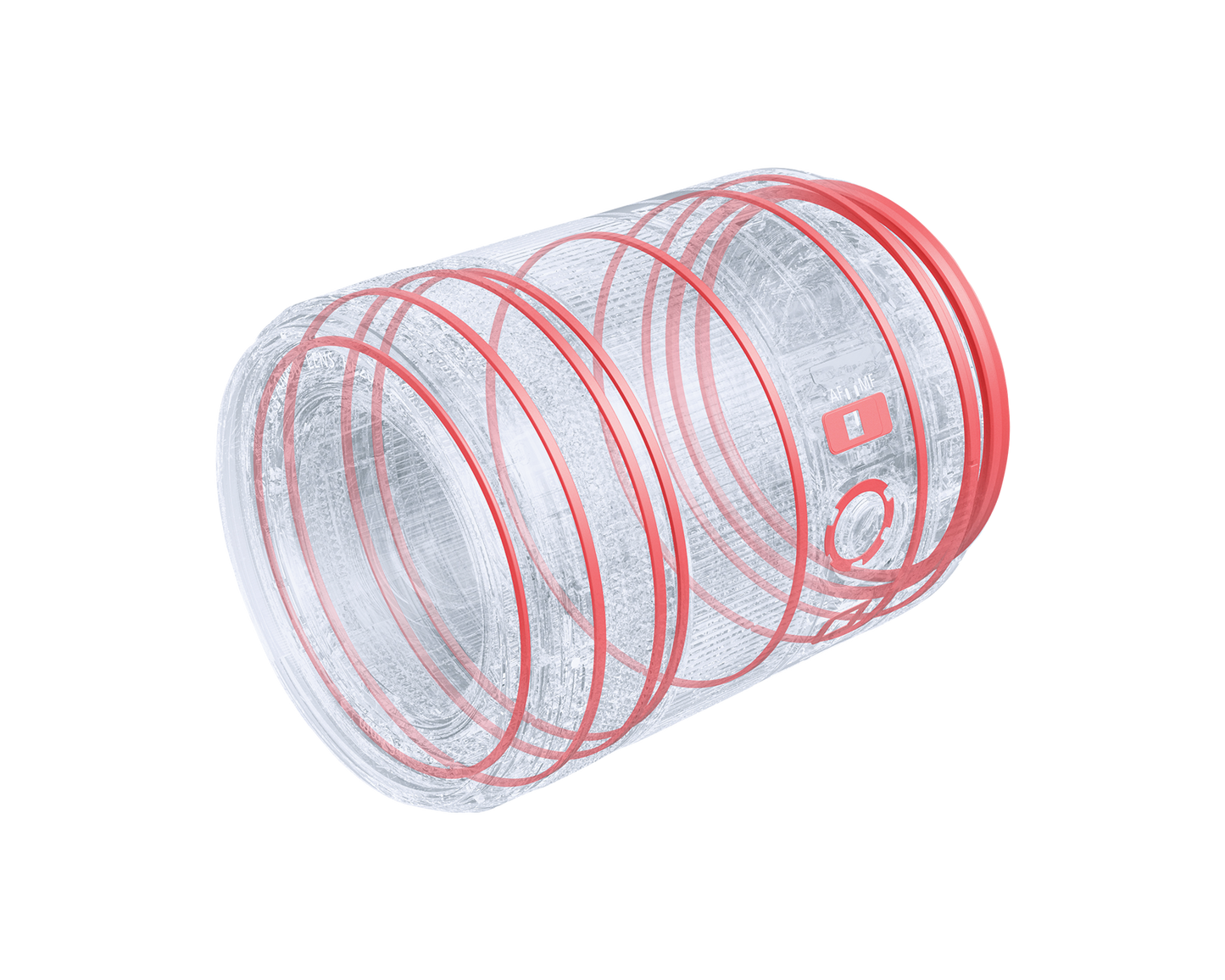

Weather-resistant seals help protect the lens at key control points and around the mount when working in challenging environments.

The lens remains compact for an ultra-wide f/1.4 design, weighing approximately 18.3 ounces and measuring about 3.9 inches long.

Weather resistance does not make the lens waterproof, and it should not be submerged or exposed unnecessarily to severe conditions.

👤 Who Is It For?

The Canon RF 20mm f/1.4L VCM is an excellent choice for:

• Professional landscape photographers

• Astrophotographers

• Architecture and interior photographers

• Commercial photographers

• Wedding and event professionals

• Documentary filmmakers

• Cinema and video-production crews

• Concert and performance photographers

• Content creators working in low light

• Professionals building a matched hybrid prime set

📷 Camera Compatibility

The RF 20mm f/1.4L VCM is compatible with all Canon EOS R-series mirrorless cameras.

On a full-frame body, it provides its complete ultra-wide 20mm field of view.

On an APS-C EOS R-series camera, it provides an approximately 32mm equivalent angle of view. This creates a natural wide-angle perspective for documentary, street, environmental portrait and video work.

Iris-ring functionality for still photography depends on the camera model. The ring remains available for compatible video operation across a broader range of EOS R cameras.

⚖️ RF 20mm f/1.4L Compared with the RF 16mm f/2.8 STM

Choose the RF 20mm f/1.4L VCM when low-light performance, professional optics, weather resistance and hybrid video controls are priorities.

Choose the RF 16mm f/2.8 STM when maximum width, minimum size and affordability matter most.

The 20mm is a specialist professional lens; the 16mm is an exceptionally portable ultra-wide prime.

⚖️ RF 20mm f/1.4L Compared with the RF 16-28mm f/2.8

Choose the RF 20mm f/1.4L VCM for its four-times-greater light-gathering ability at maximum aperture, stronger subject separation, advanced autofocus and cinema-oriented controls.

Choose the RF 16-28mm f/2.8 IS STM when zoom flexibility, built-in stabilization and lower cost are more important.

The 20mm excels in low light and controlled professional production. The 16-28mm is the more flexible travel and event lens.

⚖️ RF 20mm f/1.4L Compared with the RF 24mm f/1.4L VCM

Both lenses share similar construction, controls, autofocus technology and f/1.4 low-light performance.

Choose the RF 20mm when wider coverage is important for landscapes, astrophotography, architecture, interiors and establishing shots.

Choose the RF 24mm when you prefer a slightly more natural wide-angle perspective for documentary photography, events, environmental portraits and general filmmaking.

⚖️ RF 20mm f/1.4L Compared with the RF 15-35mm f/2.8L

The RF 20mm f/1.4L provides dramatically greater light-gathering ability, stronger subject separation and specialized hybrid video controls.

The RF 15-35mm f/2.8L provides a much more flexible zoom range, built-in Optical Image Stabilization and easier reframing during fast-paced assignments.

Choose the 20mm for low-light excellence and a distinctive prime-lens look. Choose the 15-35mm for professional versatility.

📦 In the Box

• Canon RF 20mm f/1.4L VCM Lens

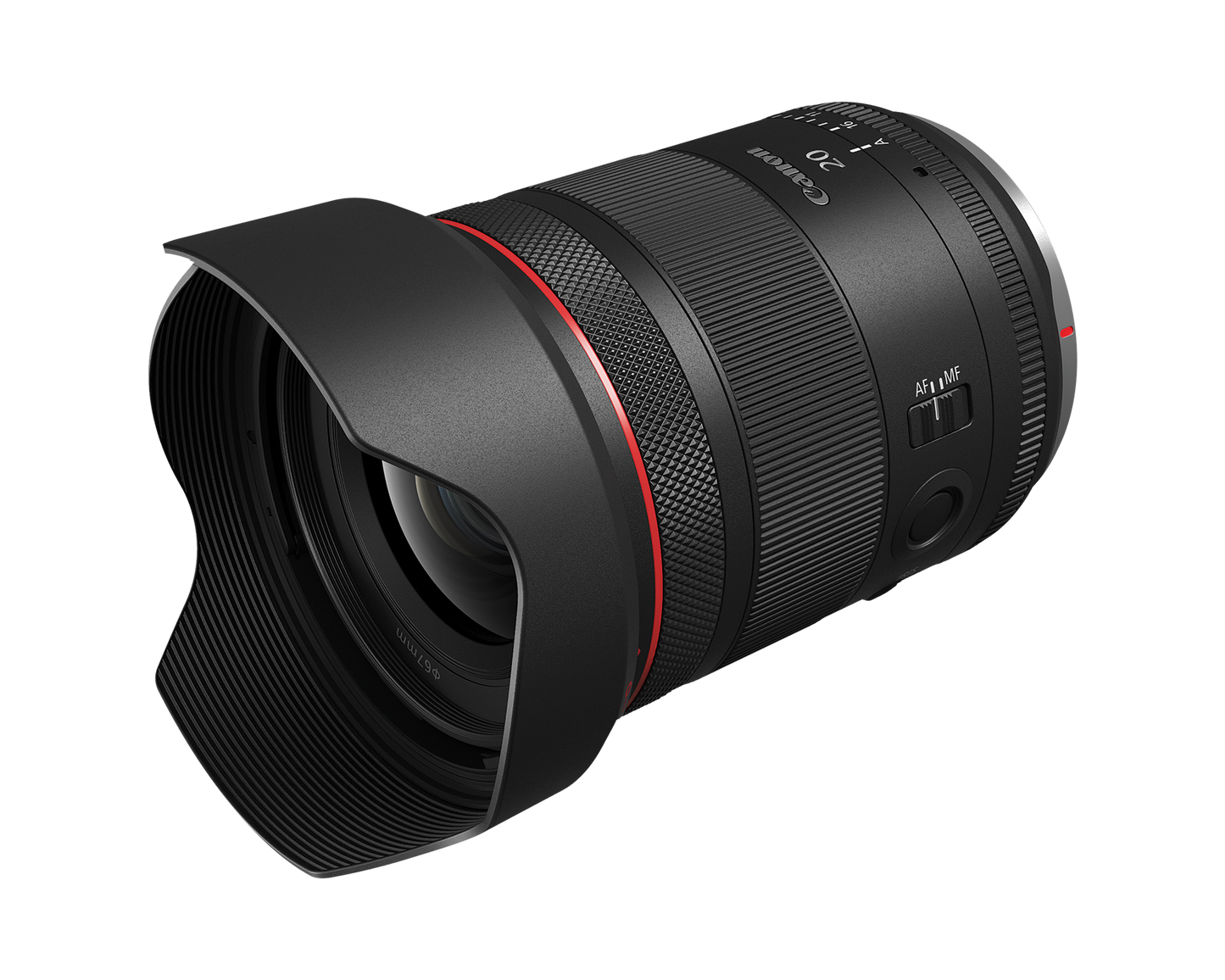

• Canon EW-73H Lens Hood

• Canon E-67 II Lens Cap

• Canon RF Lens Dust Cap

• Canon LP1219 Lens Case

• Removable Rear Filter Holder

🧰 Recommended Kit Additions

Complete your professional wide-angle setup with:

• Canon full-frame EOS R-series camera

• 67mm protective filter

• 67mm circular polarizing filter

• 67mm neutral-density filter

• Cut gel or polyester rear filters

• Sturdy tripod

• Remote shutter release for astrophotography

• Video gimbal or cinema rig

• Professional camera bag

• Lens-cleaning kit

• Additional Canon f/1.4L VCM primes for a matched hybrid set
