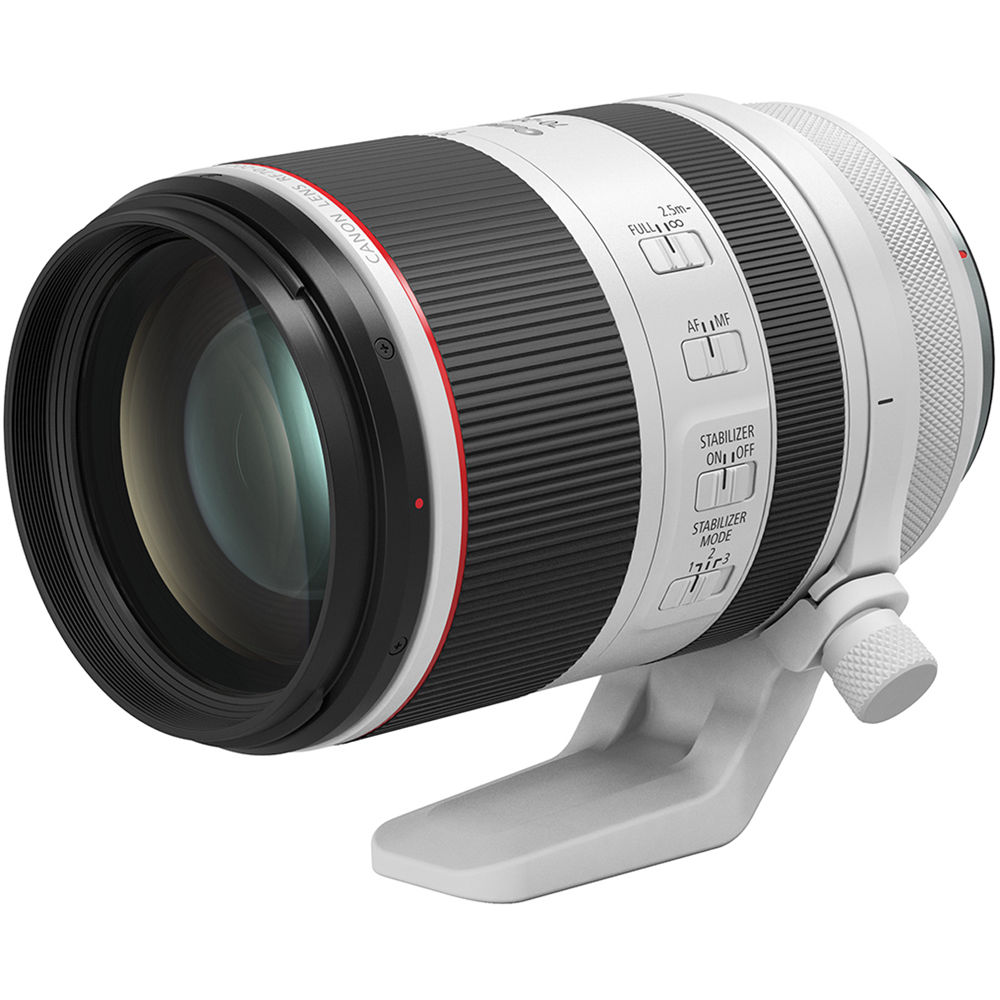

Canon RF 70–200mm f/2.8L IS USM Lens

The Canon RF 70–200mm f/2.8L IS USM is a professional telephoto zoom that combines a constant f/2.8 aperture, advanced L-series optics, fast Dual Nano USM autofocus, and powerful image stabilization in a remarkably compact retracting design.

Its versatile focal range and strong low-light performance make it an essential lens for weddings, portraits, sports, events, photojournalism, performances, and commercial photography.

✨ Key Benefits

• Versatile professional 70–200mm zoom range
• Constant f/2.8 maximum aperture
• Up to five stops of optical image stabilization
• Dual Nano USM autofocus system
• Compact retracting design
• Professional Canon L-series optics
• One Super UD and four UD elements
• Two aspherical elements
• Nine-blade circular aperture
• Three stabilization modes
• Customizable RF control ring
• Focus limiter switch
• Removable rotating tripod collar
• Dust- and moisture-resistant construction
• Fluorine-coated front and rear elements

🔭 A Professional Telephoto Zoom Range

The 70–200mm range covers many of the most useful short- and medium-telephoto focal lengths.

At 70mm, the lens can capture environmental portraits, larger groups, and nearby action. At 200mm, it provides tight framing, flattering compression, and strong background separation.

It is particularly effective for:

• Weddings and receptions
• Portraits and fashion
• Indoor and outdoor sports
• Concerts and stage performances
• Corporate and school events
• Photojournalism
• Commercial assignments
• Wildlife at moderate distances
• Compressed landscapes
• Documentary photography

🌙 Constant f/2.8 Maximum Aperture

The maximum aperture remains f/2.8 throughout the entire zoom range. Exposure does not change as the photographer zooms from 70mm to 200mm.

This is especially valuable for professionals working in manual exposure mode or recording video.

The bright aperture provides:

• Strong low-light capability
• Faster shutter speeds for moving subjects
• Lower ISO settings in dim environments
• Shallow depth of field
• Consistent exposure throughout the zoom range
• Improved subject isolation

🌸 Beautiful Portrait Rendering

The combination of longer focal lengths and a constant f/2.8 aperture produces attractive background compression and separation.

At 135mm to 200mm, the lens provides a flattering perspective for:

• Headshots
• Senior portraits
• Wedding portraits
• Fashion
• Performers
• Candid event photographs
• Full-length portraits with soft backgrounds

A nine-blade circular diaphragm contributes to smooth out-of-focus areas and rounded highlights.

🛡️ Up to Five Stops of Optical Image Stabilization

The optical Image Stabilizer compensates for up to five stops of camera movement, helping photographers produce sharper handheld photographs at slower shutter speeds.

This is particularly helpful for:

• Dimly lit ceremonies
• Indoor events
• Stationary subjects
• Handheld portraits
• Performances
• Travel and documentary work
• Telephoto video

Compatible cameras with in-body stabilization can coordinate with the lens for additional control.

Image stabilization reduces camera movement but does not freeze a moving subject. Sports and action photography may still require fast shutter speeds.

🎚️ Three Stabilization Modes

The lens provides three selectable stabilization modes:

• Mode 1: General stabilization for stationary subjects
• Mode 2: Designed for panning with moving subjects
• Mode 3: Applies stabilization primarily during exposure, making erratically moving subjects easier to follow through the viewfinder

These modes allow the stabilization system to adapt to portraits, conventional sports, motorsports, wildlife, and unpredictable action.

🎯 Dual Nano USM Autofocus

The lens uses two independently controlled Nano USM motors to operate separate focusing groups.

This electronic floating-focus design provides:

• Fast and responsive autofocus
• Smooth video focus transitions
• Quiet operation
• Precise subject tracking
• Strong close-distance optical performance
• Reduced focusing-element movement

The system works with Canon’s face, eye, animal, and vehicle-detection capabilities, depending on the connected camera.

🔬 Advanced L-Series Optics

The optical design contains 17 elements arranged in 13 groups, including:

• One Super Ultra-low Dispersion element
• Four Ultra-low Dispersion elements
• Two aspherical elements

These specialized elements help reduce:

• Chromatic aberration and colour fringing
• Spherical aberration
• Distortion
• Coma
• Loss of sharpness toward the edges
• Aberrations at close focusing distances

The lens delivers excellent resolution, contrast, and colour throughout its zoom and focusing ranges.

☀️ Advanced Lens Coatings

Canon’s Air Sphere Coating and Subwavelength Structure Coating help reduce flare and ghosting caused by internal reflections.

These coatings are valuable when photographing:

• Backlit portraits
• Stage lighting
• Stadium lights
• Sunsets
• Nighttime city scenes
• Bright windows during indoor events

Super Spectra Coating further supports natural colour reproduction and strong contrast.

📦 Compact Retracting Design

Unlike traditional internally zooming 70–200mm lenses, this model retracts to approximately 5.75 inches when set to 70mm.

Its compact stored length makes it easier to:

• Fit into smaller camera bags
• Carry while traveling
• Work in crowded event spaces
• Pack alongside a second camera and lens
• Transport on assignment

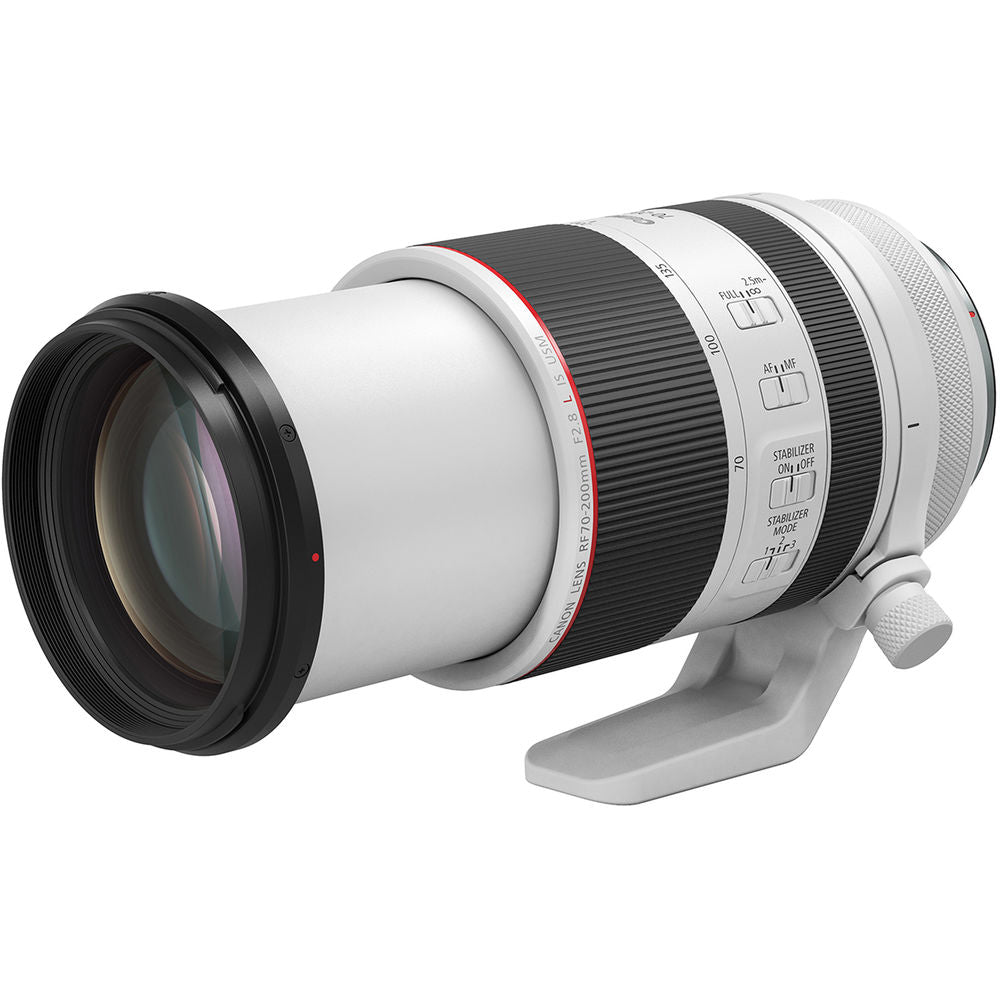

The barrel extends as the lens is zoomed toward 200mm. A zoom-lock switch helps prevent the lens from extending while being transported.

🔍 Close-Focusing Performance

The lens focuses as close as approximately 0.70 metre, or 2.3 feet, throughout its zoom range and provides up to approximately 0.23x magnification.

This is useful for:

• Wedding details
• Flowers
• Food and table settings
• Fashion accessories
• Small products
• Hands and craftwork
• Tight documentary details

Although it is not a macro lens, its close focusing and telephoto compression can produce striking detail photographs.

🎛️ Customizable Control Ring

The dedicated RF control ring can be assigned to commonly used settings, including:

• Aperture
• Shutter speed
• ISO
• Exposure compensation

This allows photographers to adjust an important setting without lowering the camera or entering a menu.

🕹️ Focus Limiter Switch

The focus limiter allows photographers to restrict the autofocus system to a selected distance range.

When subjects are known to be farther away, limiting the range can prevent the lens from searching through nearby focusing distances and can improve autofocus responsiveness.

This is especially useful for sports, performances, wildlife, and outdoor events.

🌦️ Professional L-Series Construction

Dust- and moisture-resistant construction helps protect the lens during demanding professional assignments.

Fluorine coatings on the front and rear elements help repel:

• Fingerprints
• Moisture
• Oil
• Dust and dirt

The light-coloured exterior helps reduce heat absorption when the lens is used for extended periods in direct sunlight.

Weather resistance does not guarantee complete protection from water or dust, and suitable rain protection should be used in severe conditions.

🔄 Removable Rotating Tripod Collar

The included tripod collar provides a balanced mounting point for a tripod or monopod.

It can rotate between horizontal and vertical orientations without requiring the camera to be removed from the support. The collar can also be removed when a smaller handheld setup is preferred.

🎥 Video Applications

The constant f/2.8 aperture, smooth Nano USM focusing, image stabilization, and versatile zoom range make the lens suitable for professional video.

It works well for:

• Wedding films
• Interviews
• Stage performances
• Sports
• Documentary production
• Corporate events
• Commercial footage

Compatible cameras can also apply electronic focus-breathing correction when the lens is running supported firmware.

Filmmakers who need internal zooming, optional power-zoom control, an iris ring, or RF Extender compatibility should consider the RF 70–200mm f/2.8L IS USM Z.

📐 Performance on APS-C Cameras

On an APS-C EOS R-series camera, the lens provides a field of view similar to approximately 112–320mm on full frame.

This extended reach is useful for:

• Field sports
• Indoor athletics
• Wildlife
• Stage performances
• Equestrian events
• Distant portraits
• Detail photography

The lens remains fully compatible with Canon’s APS-C EOS R-series cameras without requiring an adapter.

📋 Key Specifications

👤 Ideal For

The Canon RF 70–200mm f/2.8L IS USM is an excellent choice for:

• Professional wedding photographers
• Portrait and fashion photographers
• Sports photographers
• Event and performance photographers
• Photojournalists
• Commercial photographers
• Documentary photographers
• Low-light specialists
• Professionals requiring a compact 70–200mm
• APS-C users needing a bright telephoto zoom

⚖️ Comparing Similar Canon RF Lenses

Versus the RF 70–200mm f/2.8L IS USM Z

Both lenses provide professional L-series optics, a constant f/2.8 aperture, fast autofocus, and image stabilization.

The original RF 70–200mm f/2.8L retracts to a substantially shorter stored length and is lighter, making it exceptionally convenient for still photographers and travel.

The Z version uses an internal zoom design and adds an iris ring, lens function buttons, compatibility with optional power-zoom adapters, and support for Canon RF 1.4x and 2x Extenders. It is better suited to professional hybrid and video production.

Versus the RF 70–200mm f/4L IS USM

The f/4L model is significantly smaller and lighter. It is excellent for travel, outdoor portraits, landscapes, and events with adequate light.

The f/2.8L gathers twice as much light, provides stronger background separation, and supports faster shutter speeds indoors. It is the better choice for weddings, performances, indoor sports, and professional low-light assignments.

Versus the RF 100–500mm f/4.5–7.1L IS USM

The RF 100–500mm offers substantially greater reach for wildlife, birds, aircraft, and outdoor sports.

The RF 70–200mm f/2.8L provides a much brighter aperture, stronger low-light performance, and more pronounced subject separation. It is better suited to portraits, weddings, events, and indoor action.

Versus the RF 100–400mm f/5.6–8 IS USM

The RF 100–400mm is lighter, more affordable, and provides twice the maximum focal length. It is an excellent travel and daylight wildlife lens.

The RF 70–200mm f/2.8L provides professional construction, a much brighter constant aperture, more advanced optics, and superior low-light capability.

Versus the RF-S 55–210mm f/5–7.1 IS STM

The RF-S 55–210mm is exceptionally light and designed specifically for APS-C cameras. It is an excellent telephoto option for family activities, travel, and casual wildlife photography.

The RF 70–200mm f/2.8L offers professional full-frame coverage, a much brighter constant aperture, weather resistance, faster autofocus, and stronger optical performance.

📦 In the Box

• Canon RF 70–200mm f/2.8L IS USM Lens
• Canon E-77 II Lens Cap
• Canon RF Lens Dust Cap
• Canon ET-83F (WIII) Lens Hood
• Canon LZ1328 Lens Case
• Canon Tripod Mount Ring E (WIII)
• Manufacturer documentation

🧳 Suggested Kits and Accessories

Professional Wedding Kit

• Canon full-frame EOS R-series camera
• RF 70–200mm f/2.8L IS USM
• RF 24–70mm or 28–70mm standard zoom
• Canon Speedlite
• Dual-camera harness
• Spare batteries and memory cards

Sports Kit

• Canon high-speed EOS R-series camera
• RF 70–200mm f/2.8L IS USM
• Monopod
• High-capacity memory cards
• Extra batteries
• Weather-protective camera cover

Portrait Kit

• Canon EOS R-series camera
• RF 70–200mm f/2.8L IS USM
• 77mm protective filter
• Portable strobe or LED light
• Reflector
• Sturdy tripod

Event and Performance Kit

• Canon full-frame EOS R-series camera
• RF 70–200mm f/2.8L IS USM
• RF 24–70mm f/2.8L standard zoom
• Quiet camera support
• Extra batteries
• Professional rolling case
