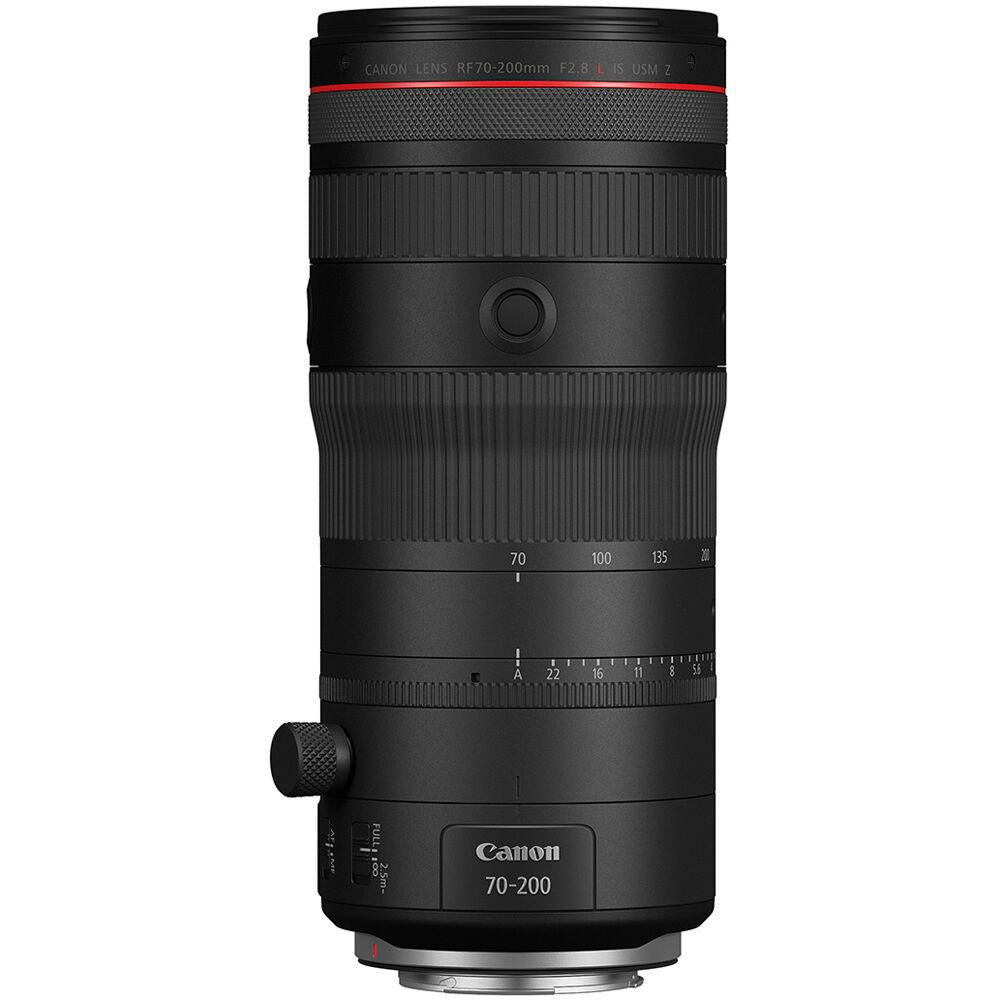

Canon RF 70–200mm f/2.8L IS USM Z Lens

The Canon RF 70–200mm f/2.8L IS USM Z is a professional hybrid telephoto zoom engineered for high-end photography, filmmaking, broadcast, documentary, sports, weddings, and commercial production.

It combines a constant f/2.8 aperture with an internal zoom design, Dual Nano USM autofocus, minimal focus breathing, professional manual controls, optional power-zoom operation, and compatibility with Canon RF Extenders.

Available in heat-resistant white or discreet black finishes, the RF 70–200mm f/2.8L IS USM Z is designed for professionals who need one telephoto zoom to perform equally well in still and motion production.

✨ Key Benefits

• Versatile 70–200mm professional zoom range

• Constant f/2.8 maximum aperture

• Internal zoom design maintains constant length

• Up to 5.5 stops of optical image stabilization

• Up to 7.5 stops at the image center with compatible IBIS cameras

• Dual Nano USM autofocus

• Minimal focus breathing

• Electronic parfocal performance

• Compatible with optional Canon power-zoom adapters

• Compatible with Canon RF 1.4x and 2x Extenders

• Dedicated iris ring

• Separate focus and control rings

• Two customizable lens function buttons

• 11-blade circular aperture

• Dust- and moisture-resistant L-series construction

• Available in black or white

🔭 Professional 70–200mm Versatility

The 70–200mm range covers essential short- and medium-telephoto focal lengths for both photography and video.

At 70mm, the lens can capture environmental portraits, interviews, nearby action, and larger groups. At 200mm, it provides tighter framing, stronger compression, and pronounced subject isolation.

It is especially suited to:

• Weddings and events

• Portraits and fashion

• Indoor and outdoor sports

• Documentary and news production

• Concerts and performances

• Commercial photography

• Corporate video

• Narrative filmmaking

• Wildlife at moderate distances

• Broadcast and live production

🌙 Constant f/2.8 Maximum Aperture

The maximum aperture remains f/2.8 throughout the entire zoom range, maintaining consistent exposure as the lens moves from 70mm to 200mm.

The bright aperture provides:

• Strong low-light capability

• Faster shutter speeds for action

• Lower ISO settings in dim environments

• Shallow depth of field

• Excellent subject separation

• Consistent exposure while zooming

• Greater control over cinematic depth of field

This consistency is especially important for manual-exposure photography and professional video.

📏 Internal Zoom Design

The lens does not extend or retract as it is zoomed. Its physical length and center of gravity remain nearly constant throughout the zoom range.

Internal zooming provides important advantages for:

• Gimbal balancing

• Matte boxes and cinema accessories

• Rain covers

• Tripod and monopod work

• Handheld video

• Professional sports photography

• Dusty or wet environments

• Optional power-zoom operation

The internal design is larger when stored than the retracting RF 70–200mm f/2.8L, but it provides more predictable balance and operation.

🛡️ Up to 5.5 Stops of Optical Image Stabilization

The built-in optical Image Stabilizer provides up to 5.5 stops of shake correction.

When paired with a compatible camera offering in-body image stabilization, coordinated control can provide up to approximately 7.5 stops at the center and seven stops toward the edges of the image under Canon’s specified conditions.

This is valuable for:

• Handheld documentary work

• Dimly lit events

• Stationary subjects

• Telephoto video

• Panning

• Slow-shutter creative effects

• Extended handheld assignments

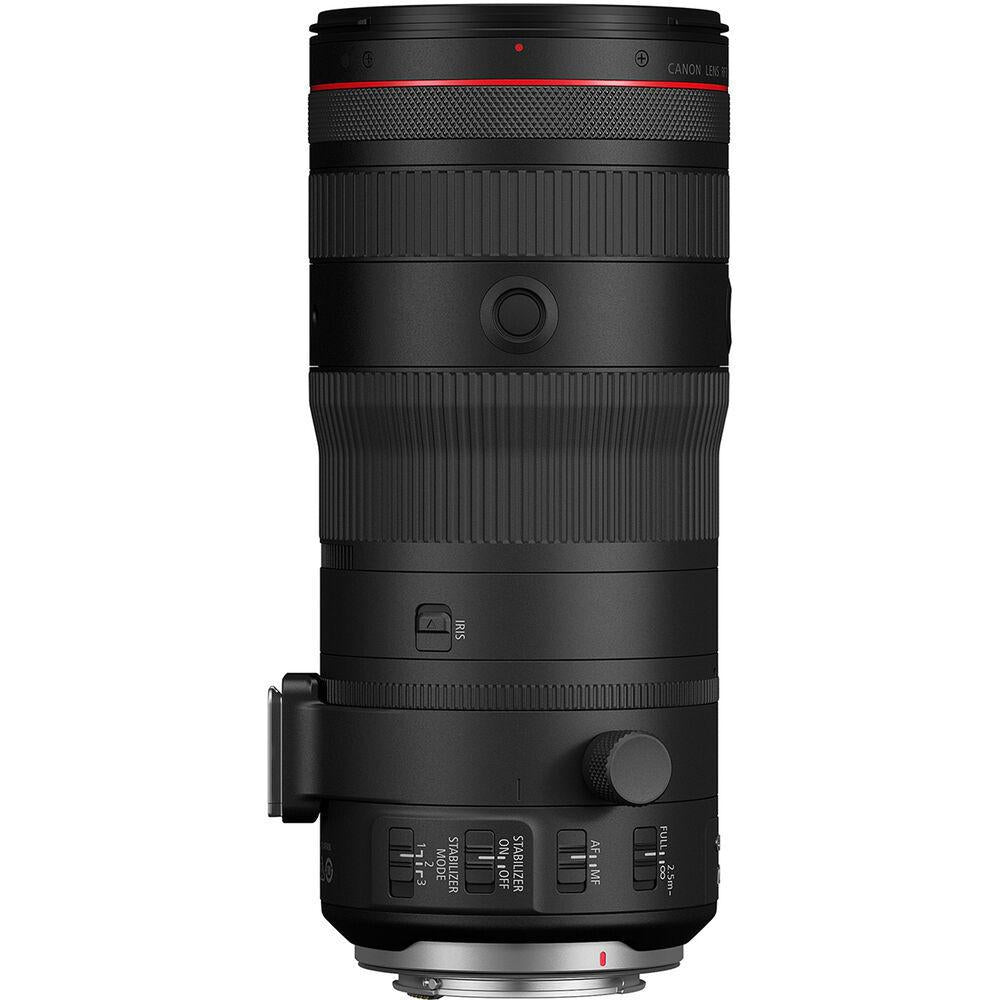

🎚️ Three Stabilization Modes

The lens provides three stabilization modes for different types of shooting:

• Mode 1: General stabilization for stationary subjects

• Mode 2: Optimized for panning with moving subjects

• Mode 3: Applies stabilization primarily during exposure for easier tracking of unpredictable action

These modes support everything from portraits and interviews to motorsports, wildlife, and field athletics.

🎯 Dual Nano USM Autofocus

Two Nano USM motors independently control separate focusing groups. This electronic floating-focus design provides fast and precise autofocus for still photography along with smooth and quiet focusing for video.

Benefits include:

• Responsive subject acquisition

• Accurate eye and subject tracking

• Smooth cinematic focus transitions

• Quiet operation

• Strong close-distance performance

• Reduced focus breathing

• Full-time manual focus adjustment

🎞️ Minimal Focus Breathing

The lens is optically designed to minimize focus breathing, reducing the visible change in framing as focus moves between near and distant subjects.

This produces more natural focus transitions during:

• Interviews

• Narrative scenes

• Wedding films

• Product demonstrations

• Documentary footage

• Live productions

• Commercial video

Compatible cameras may provide additional electronic correction when needed.

🎥 Electronic Parfocal Performance

Canon’s electronic floating-focus system helps maintain focus while the lens is zoomed.

This electronic parfocal capability is especially useful when recording:

• Live events

• Interviews

• Sports

• Performances

• Documentary sequences

• Establishing shots that move into close framing

Performance depends on autofocus settings, camera compatibility, subject movement, and shooting conditions.

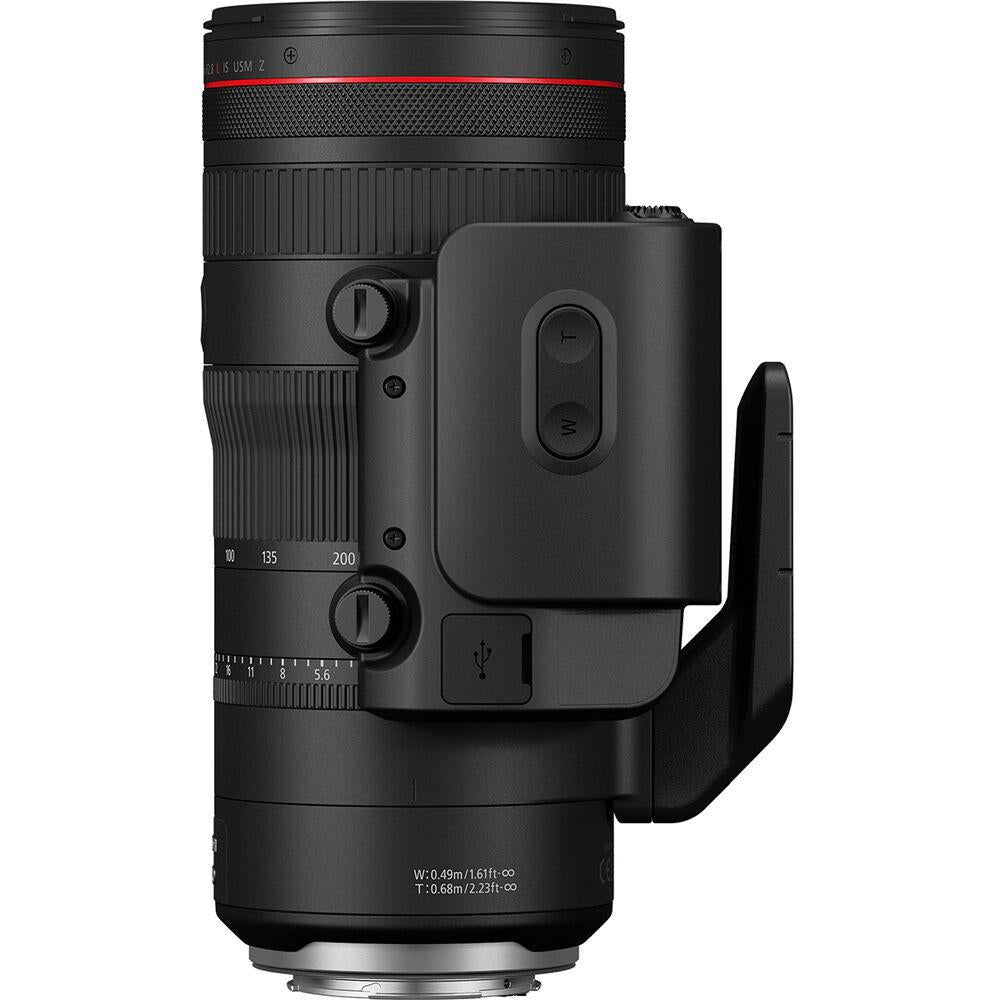

⚙️ Optional Power-Zoom Operation

The lens accepts Canon’s optional PZ-E2 and PZ-E2B Power Zoom Adapters.

A power-zoom adapter provides smooth and repeatable zoom movement for professional video and broadcast applications. Depending on the adapter, camera, and production system, it can support:

• Controlled zoom speed

• Smooth zoom starts and stops

• Remote zoom operation

• Wired production accessories

• Grip-based zoom control

• Repeatable cinematic movements

The PZ-E2B adds a 20-pin interface for compatible professional zoom and focus accessories.

🔭 Canon RF Extender Compatibility

Unlike the compact retracting RF 70–200mm f/2.8L, the Z model is compatible with Canon’s RF Extenders.

With the RF 1.4x Extender

• Focal range becomes approximately 98–280mm

• Maximum aperture becomes f/4

With the RF 2x Extender

• Focal range becomes approximately 140–400mm

• Maximum aperture becomes f/5.6

This allows the lens to adapt to wildlife, field sports, aviation, and other assignments requiring additional reach.

🔬 Advanced L-Series Optics

The lens contains 18 optical elements arranged in 15 groups, including:

• Two Super Ultra-low Dispersion elements

• One Ultra-low Dispersion element

• Three aspherical elements

These specialized optics help reduce:

• Chromatic aberration

• Colour fringing

• Spherical aberration

• Distortion

• Coma

• Loss of edge sharpness

• Aberrations at close focusing distances

The optical system is designed to deliver excellent resolution and contrast throughout the zoom range.

☀️ Advanced Optical Coatings

Canon’s Air Sphere Coating and Super Spectra Coating help reduce flare and ghosting when bright light sources appear within or near the frame.

These coatings support strong contrast and colour reproduction during:

• Backlit portraits

• Stadium events

• Concerts

• Stage productions

• Nighttime city photography

• Sunlit outdoor sports

• Brightly lit commercial work

A fluorine coating on the front element helps repel fingerprints, oil, moisture, and dirt.

🌸 11-Blade Circular Aperture

An 11-blade circular diaphragm produces smooth out-of-focus highlights and attractive background rendering.

Combined with the 200mm focal length and f/2.8 aperture, it can create pronounced subject isolation for portraits, sports, wildlife, and cinematic close-ups.

The 11-blade design also produces polished sunstar effects when stopped down around bright point-light sources.

🔍 Improved Close-Focusing Performance

The lens focuses as close as approximately 0.49 metre at 70mm and 0.68 metre at 200mm.

Maximum magnification reaches:

• Approximately 0.20x at 70mm

• Approximately 0.30x at 200mm

This makes it useful for:

• Wedding details

• Flowers

• Food

• Fashion accessories

• Products

• Hands and craftwork

• Cinematic insert shots

It is not a true macro lens, but its 0.30x magnification at 200mm provides impressive detail capability.

🎛️ Dedicated Iris Ring

A dedicated iris ring provides direct aperture control for video production.

During movie recording, aperture can be adjusted in increments as fine as 1/32 stop, allowing smooth exposure changes.

Iris-ring operation for still photography depends on camera model and firmware. Some earlier EOS R-series cameras restrict its operation to movie recording.

🕹️ Two Lens Function Buttons

Two customizable lens function buttons are positioned for convenient access in different camera orientations.

Depending on the camera, they can be assigned to functions such as:

• Autofocus stop

• Subject detection

• Exposure controls

• Depth-of-field preview

• Other frequently used operations

Both buttons perform the same assigned function.

🎚️ Separate Focus and Control Rings

Dedicated focus and control rings allow manual focusing and camera-setting adjustments without requiring one ring to perform both jobs.

The control ring can be assigned to settings such as:

• Aperture

• Shutter speed

• ISO

• Exposure compensation

This arrangement provides efficient operation for both still photographers and filmmakers.

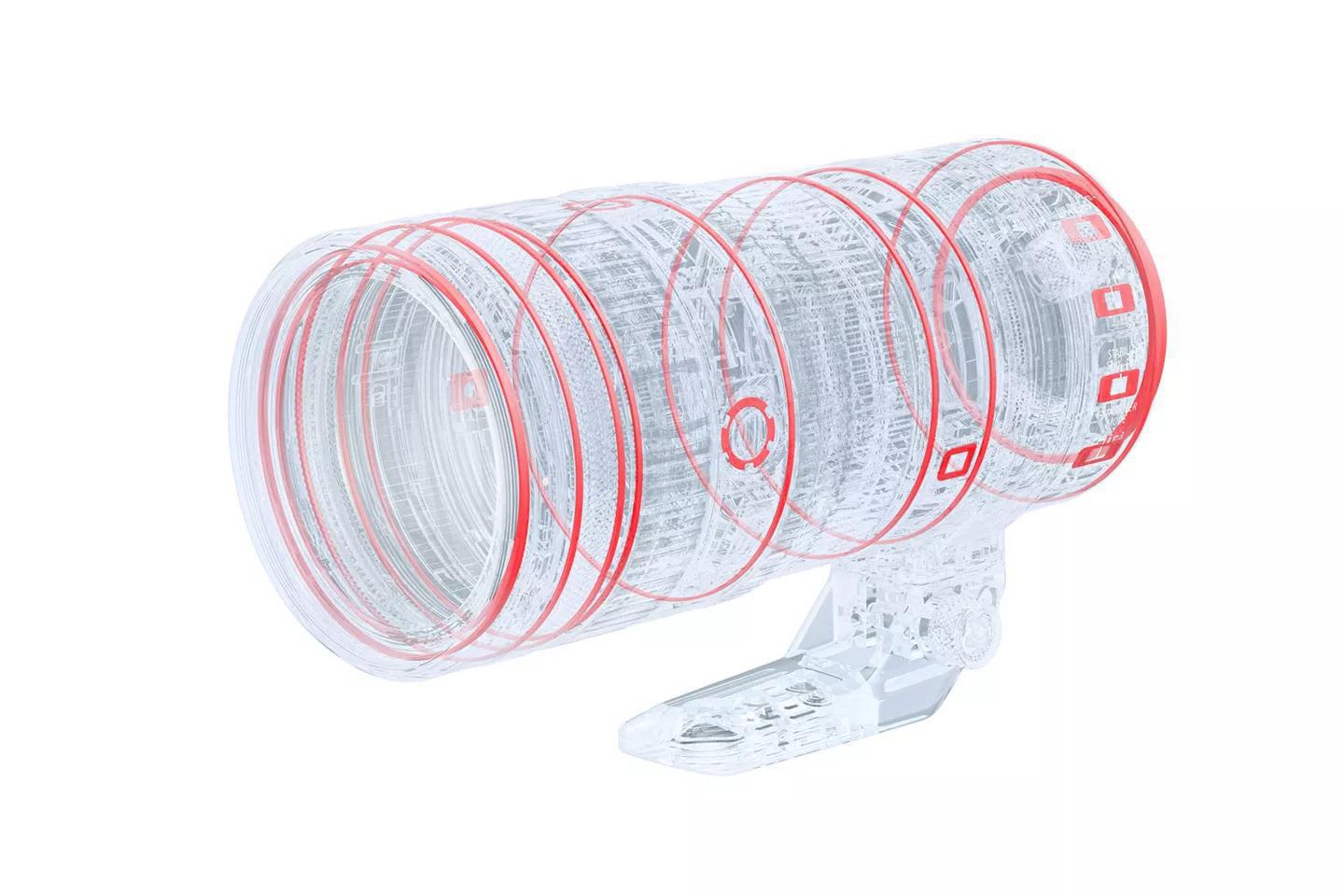

🌦️ Professional L-Series Construction

Dust- and moisture-resistant construction helps protect the lens during demanding assignments.

The white version uses a heat-resistant exterior that helps reduce temperature buildup during prolonged exposure to direct sunlight. The black version is less reflective and can be preferable on cinema sets, stages, and discreet documentary productions.

Complete protection from moisture or dust is not guaranteed, and appropriate covers should be used in severe conditions.

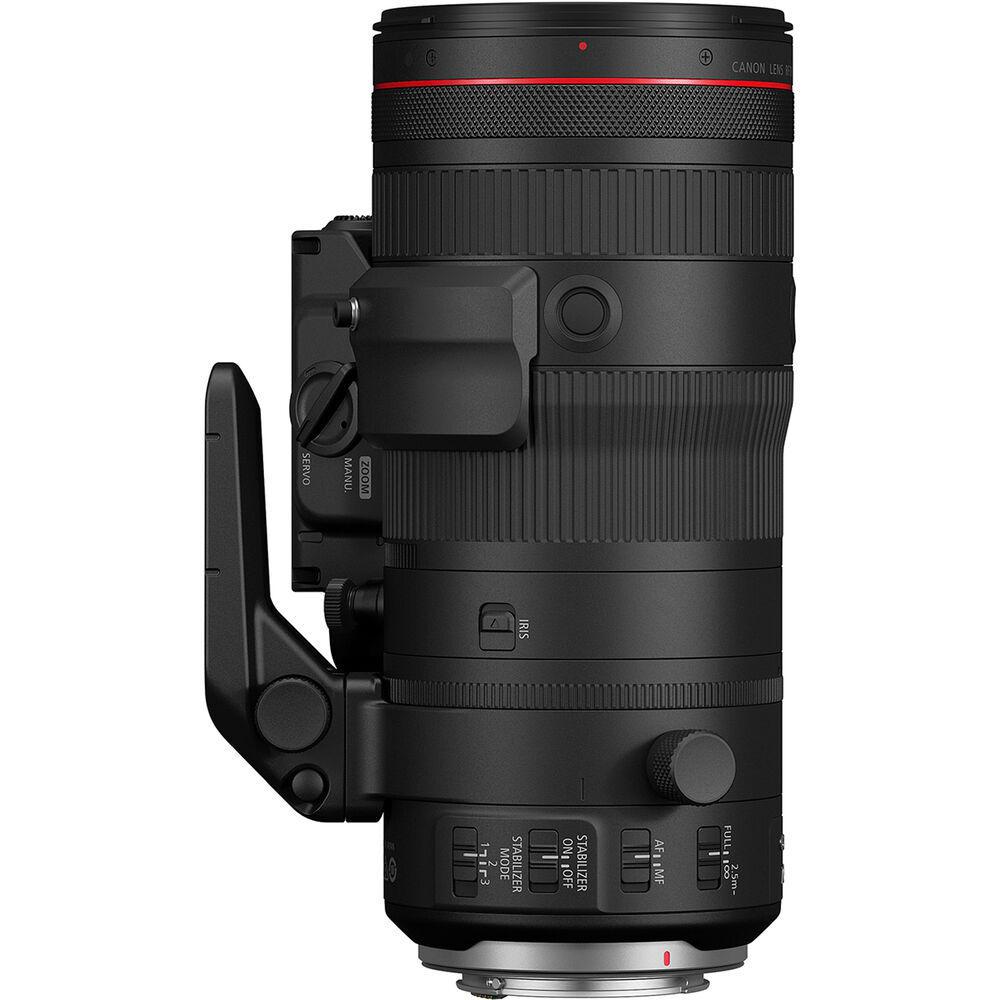

🔄 Integrated Tripod Collar

The integrated rotating tripod collar provides balanced support on a tripod or monopod and allows the camera to rotate between horizontal and vertical orientations.

The tripod foot can be removed when a lower-profile handheld configuration is preferred, while the collar itself remains part of the lens.

📐 Performance on APS-C Cameras

On an APS-C EOS R-series camera, the lens provides a field of view equivalent to approximately 112–320mm on full frame.

With extenders, the equivalent reach becomes approximately:

• 157–448mm with the 1.4x Extender

• 224–640mm with the 2x Extender

This makes it a powerful option for sports, wildlife, performances, and other distant subjects.

📋 Key Specifications

Specification	Details
Mount	Canon RF
Format compatibility	Full-frame and APS-C
Focal length	70–200mm
APS-C equivalent	Approximately 112–320mm
Maximum aperture	Constant f/2.8
Minimum aperture	f/22
Zoom design	Internal
Optical construction	18 elements in 15 groups
Special elements	2 Super UD, 1 UD, and 3 aspherical
Aperture blades	11, circular
Minimum focus at 70mm	0.49m / approximately 1.61 ft.
Minimum focus at 200mm	0.68m / approximately 2.23 ft.
Maximum magnification	0.30x at 200mm
Autofocus system	Dual Nano USM
Optical image stabilization	Up to 5.5 stops
Stabilization modes	3
Filter size	82mm
Maximum diameter	Approximately 88.5mm
Length	Approximately 199mm / 7.8 in.
Weight, white	Approximately 1,115g / 2.5 lb.
Weight, black	Approximately 1,110g / 2.4 lb.
Dust- and moisture resistance	Yes
RF Extender compatibility	RF 1.4x and RF 2x
Power-zoom compatibility	PZ-E2 and PZ-E2B

👤 Ideal For

The Canon RF 70–200mm f/2.8L IS USM Z is an excellent choice for:

• Professional hybrid photographers and filmmakers

• Sports and action photographers

• Wedding photographers and videographers

• Documentary and news crews

• Commercial production teams

• Broadcast and live-event operators

• Gimbal and cinema-rig users

• Portrait and fashion photographers

• Professionals requiring extender compatibility

• Production teams using remote or powered zoom control

⚖️ Comparing Similar Canon RF Lenses

Versus the RF 70–200mm f/2.8L IS USM

The original RF 70–200mm f/2.8L retracts to a much shorter stored length and is slightly lighter, making it exceptionally portable for photographers.

The Z model offers internal zooming, better close-up magnification, an iris ring, two function buttons, an 11-blade diaphragm, optional power zoom, and RF Extender compatibility.

Choose the original for maximum portability. Choose the Z for hybrid production, extender use, consistent balance, and advanced video controls.

Versus the RF 70–200mm f/4L IS USM

The f/4L is substantially smaller and lighter. It is an excellent option for travel, outdoor portraits, landscapes, and well-lit events.

The f/2.8L Z gathers twice as much light, provides stronger background separation, supports faster shutter speeds, and includes extensive professional video features.

Versus the RF 100–500mm f/4.5–7.1L IS USM

The RF 100–500mm provides substantially greater native reach for birds, wildlife, aviation, and daylight sports.

The RF 70–200mm f/2.8L Z offers a much brighter constant aperture, better low-light performance, stronger portrait separation, internal zooming, and optional power-zoom control.

Versus the RF 24–105mm f/2.8L IS USM Z

The RF 24–105mm Z covers wide-angle through short telephoto perspectives, making it ideal for general documentary, interviews, events, and commercial work.

The RF 70–200mm Z continues from short to medium telephoto. The two lenses share an 82mm filter size, similar hybrid controls, internal zooming, and power-zoom compatibility, forming a coordinated professional system.

📦 In the Box

White Version

• Canon RF 70–200mm f/2.8L IS USM Z Lens

• Canon E-82 II Lens Cap

• Canon RF Lens Dust Cap

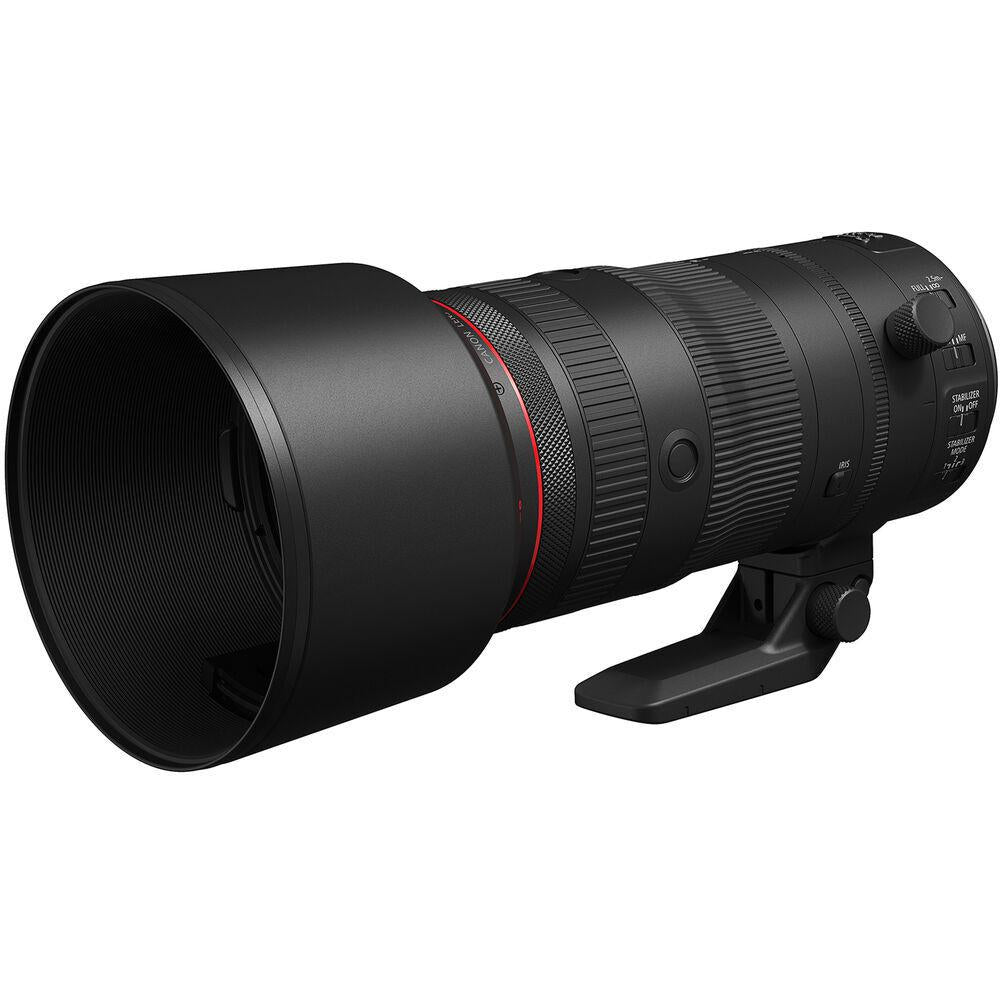

• Canon ET-88C (WIII) Lens Hood

• Canon LZ1328 Lens Case

• Integrated rotating tripod collar with removable foot

• Manufacturer documentation

Black Version

• Canon RF 70–200mm f/2.8L IS USM Z Lens in Black

• Canon E-82 II Lens Cap

• Canon RF Lens Dust Cap

• Canon ET-88C (B) Lens Hood

• Canon LZ1328 Lens Case

• Integrated rotating tripod collar with removable foot

• Manufacturer documentation

Power Zoom Adapters and RF Extenders are available separately.

🧳 Suggested Kits and Accessories

Hybrid Production Kit

• Canon EOS R-series or Cinema EOS camera

• RF 70–200mm f/2.8L IS USM Z

• PZ-E2 or PZ-E2B Power Zoom Adapter

• 82mm variable neutral-density filter

• Video tripod or shoulder rig

• External monitor and microphone

Professional Sports Kit

• High-speed Canon EOS R-series camera

• RF 70–200mm f/2.8L IS USM Z

• Canon RF 1.4x Extender

• Monopod

• High-capacity memory cards

• Weather-protective equipment cover

Wedding Kit

• Canon full-frame EOS R-series camera

• RF 70–200mm f/2.8L IS USM Z

• RF 24–70mm or RF 24–105mm f/2.8L Z

• Canon Speedlite

• Dual-camera harness

• Spare batteries and memory cards

Documentary Kit

• Canon EOS R-series or Cinema EOS camera

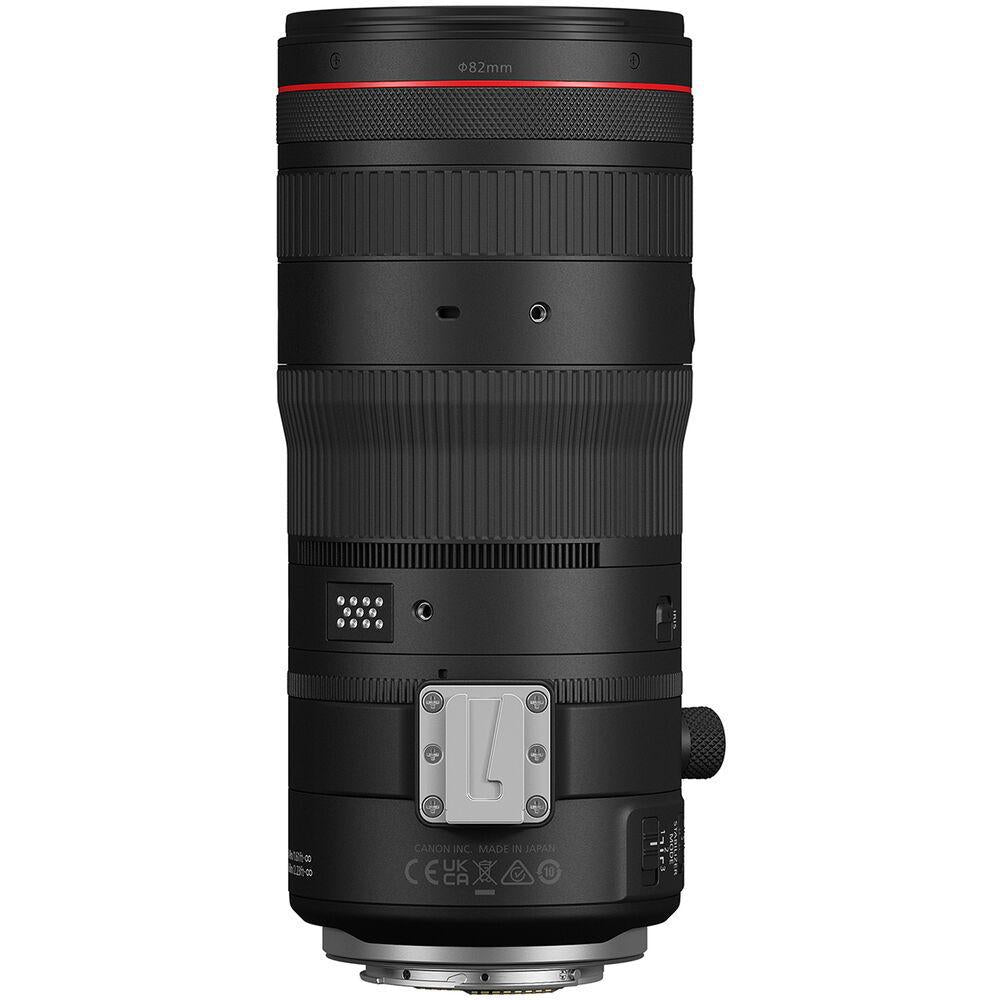

• RF 70–200mm f/2.8L IS USM Z in black

• Power Zoom Adapter

• Shotgun microphone

• Variable neutral-density filter

• Tripod or monopod

🏪 Why Buy from Cameragraphics?

Cameragraphics is an authorized Canon dealer serving Auburn and the surrounding community since 1974. Our professional photographers can help you compare both Canon RF 70–200mm f/2.8L versions and determine whether compact portability or advanced hybrid-production capability is more important for your work.

Shop with Cameragraphics for genuine Canon equipment, knowledgeable local guidance, and support from photographers who understand professional still and motion production.
