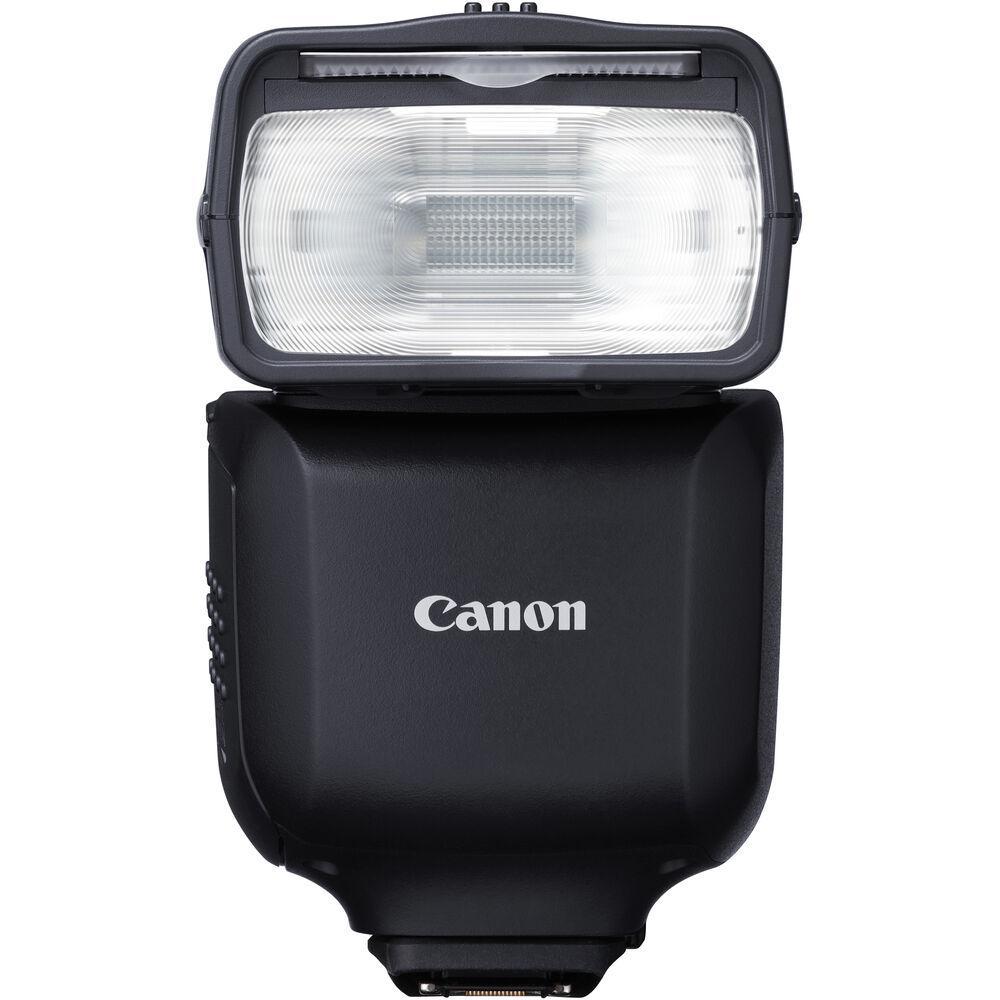

Canon Speedlite EL-10

The Canon Speedlite EL-10 is a compact, versatile flash designed for compatible EOS R cameras equipped with Canon’s Multi-Function Shoe. It combines E-TTL II automatic exposure, advanced manual control and radio wireless sender-and-receiver operation in an accessible AA-powered design.

With a guide number of 40 meters, a flexible bounce head and power settings down to 1/1024, the EL-10 is an excellent choice for portraits, family photography, events and building an off-camera Canon lighting system.

⭐ Key Benefits

• Guide number of 40 meters at ISO 100 and 105mm

• Designed for compatible Canon Multi-Function Shoe cameras

• E-TTL and E-TTL II automatic flash exposure

• Manual output from full to 1/1024 power

• Powered by four readily available AA batteries

• Radio wireless sender and receiver operation

• Controls as many as 15 compatible receiver flashes

• Five wireless groups

• Approximately 98-foot radio range

• High-speed synchronization

• Wireless second-curtain synchronization

• 24-105mm automatic zoom coverage

• 14mm coverage using the built-in wide panel

• Three customizable flash modes

• Compact and lightweight design

⚡ Guide Number 40 Output

The EL-10 provides a maximum guide number of 40 meters at ISO 100 with the flash head set to 105mm.

It offers substantially more control and reach than a small built-in flash and is well suited to:

• Indoor portraits

• Family events

• Parties and receptions

• School functions

• Product photography

• Outdoor fill flash

• Small-group photographs

• Bounce flash in typical rooms

• Off-camera lighting

Working range depends on aperture, ISO, flash zoom, modifier use and surrounding surfaces.

🔋 Convenient AA-Battery Power

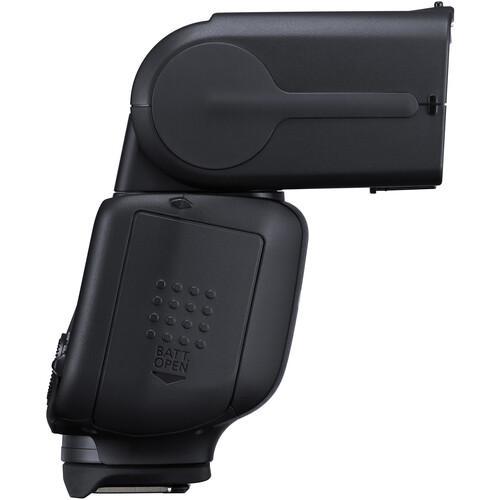

The EL-10 operates on four AA batteries, making replacement power easy to find when traveling or covering long events.

Compatible battery types include:

• AA alkaline batteries

• Rechargeable AA Ni-MH batteries

AA lithium batteries are not supported.

Canon rates the flash for approximately:

Battery Type	Approximate Flash Count
AA alkaline	210-1,400 flashes
AA Ni-MH	260-1,700 flashes

The actual number depends heavily on flash output, battery condition, temperature and wireless use.

🚀 Fast Recycling

Recycle performance depends on the installed batteries:

Battery Type	Approximate Normal Recycle Time
AA alkaline	0.1-2.5 seconds
AA Ni-MH	0.1-1.5 seconds

Quality Ni-MH batteries generally provide faster recycling and lower long-term operating cost than disposable alkaline batteries.

Quick Flash can fire before the flash has completely recharged in supported modes, although at reduced output.

📷 E-TTL II Automatic Exposure

Canon’s E-TTL and E-TTL II systems automatically calculate the amount of flash needed for the photograph.

The system responds to:

• Aperture

• ISO

• Lens focal length

• Subject distance

• Available light

• Bounce position

• Flash exposure compensation

This makes the EL-10 approachable for photographers learning flash while still providing the controls needed for advanced work.

🎛️ Manual Power to 1/1024

Manual output can be adjusted from full power down to 1/1024 in one-third-stop increments.

Low settings provide advantages such as:

• Fast recycling

• Extended battery life

• Subtle fill light

• Close-up illumination

• Precise multi-light balancing

• Wide-aperture portrait lighting

• Short flash duration for freezing movement

During high-speed synchronization, minimum output is limited to 1/128.

☀️ High-Speed Synchronization

High-speed sync allows flash to be used at shutter speeds above the camera’s normal synchronization limit.

This is useful for:

• Wide-aperture portraits in daylight

• Darkening bright backgrounds

• Adding fill to backlit faces

• Photographing outdoor action

• Maintaining shallow depth of field

High-speed synchronization reduces effective flash range because the flash emits a rapid series of pulses as the shutter travels across the sensor.

⏱️ Second-Curtain Synchronization

Second-curtain sync fires the flash near the end of a longer exposure, placing motion trails behind a moving subject.

The EL-10 supports second-curtain synchronization both directly and in compatible radio wireless arrangements.

Availability depends on the camera, firmware and wireless equipment being used.

📡 Radio Wireless Sender and Receiver

The EL-10 can operate as either a sender or receiver in Canon’s radio wireless flash system.

It supports:

• Approximately 30m / 98 ft of range

• Up to 15 sender units

• Up to 15 receiver units

• Up to 16 communicating units in total

• Five groups: A, B, C, D and E

• Automatic or manual channel selection

• Radio IDs for separating nearby systems

• Remote camera release

Radio communication does not require direct line of sight, allowing flashes to be placed inside modifiers, behind the camera or around architectural obstacles.

💡 Expandable Off-Camera Lighting

One EL-10 can begin as an on-camera flash and later become part of a larger lighting system.

Compatible radio equipment includes selected:

• Speedlite EL-5 units

• Additional Speedlite EL-10 units

• Speedlite EL-1 and EL-1 Ver. 2 units as receivers

• Canon 430EX III-RT

• Canon 600EX-RT and 600EX II-RT

• Speedlite Transmitter ST-E10

• Compatible ST-E3-RT transmitter versions

Advanced functions vary according to the sender, receivers and camera.

↔️ 24-105mm Zoom Coverage

The flash head automatically adjusts its beam for supported focal lengths between 24mm and 105mm on a full-frame camera.

The built-in wide panel expands coverage to approximately 14mm.

Manual zoom settings can also be used to:

• Restrict light spill

• Create a more concentrated beam

• Spread the light more broadly

• Produce intentional off-camera effects

🔄 Bounce Flash

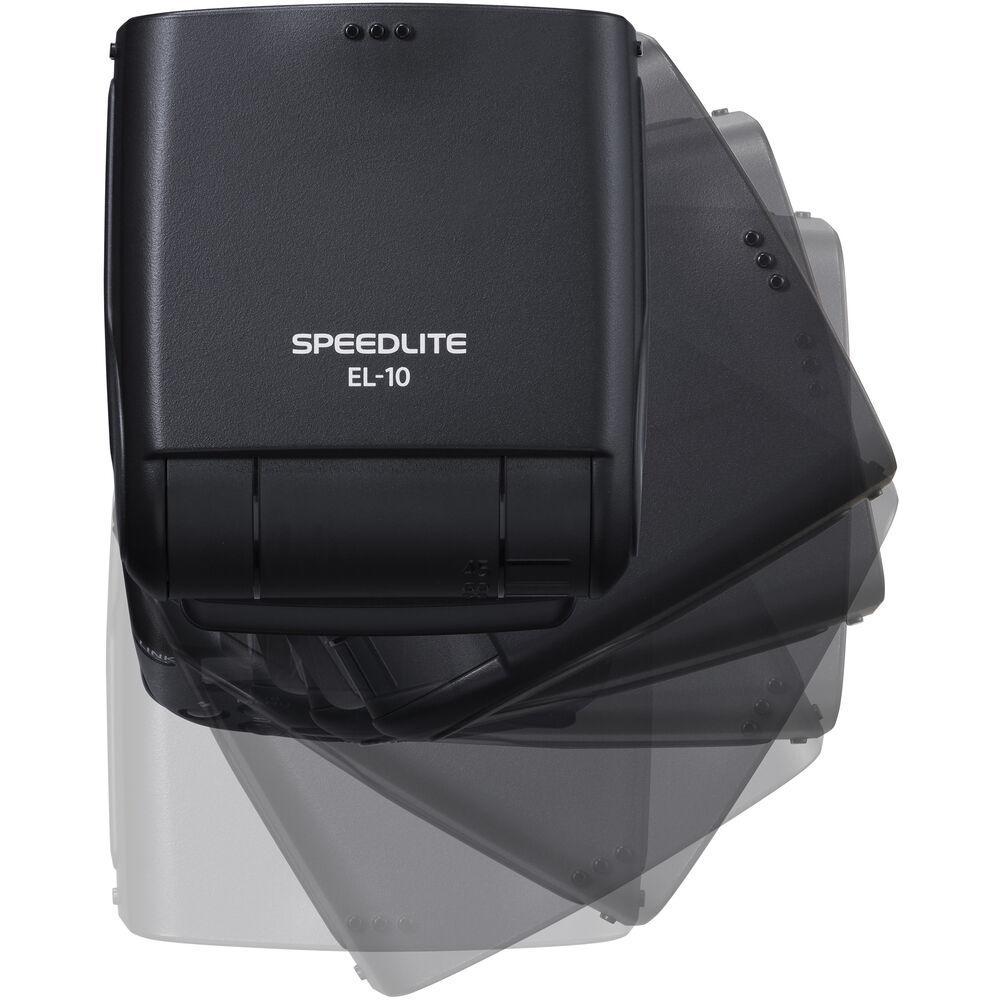

The head tilts upward to approximately 90° and rotates as far as 150° to the left and 180° to the right.

Bouncing the flash from a neutral ceiling or wall can create:

• Softer shadows

• More natural facial modeling

• Less noticeable frontal glare

• Broader illumination

• A more flattering indoor appearance

The available bounce direction differs slightly depending on which way the head is rotated.

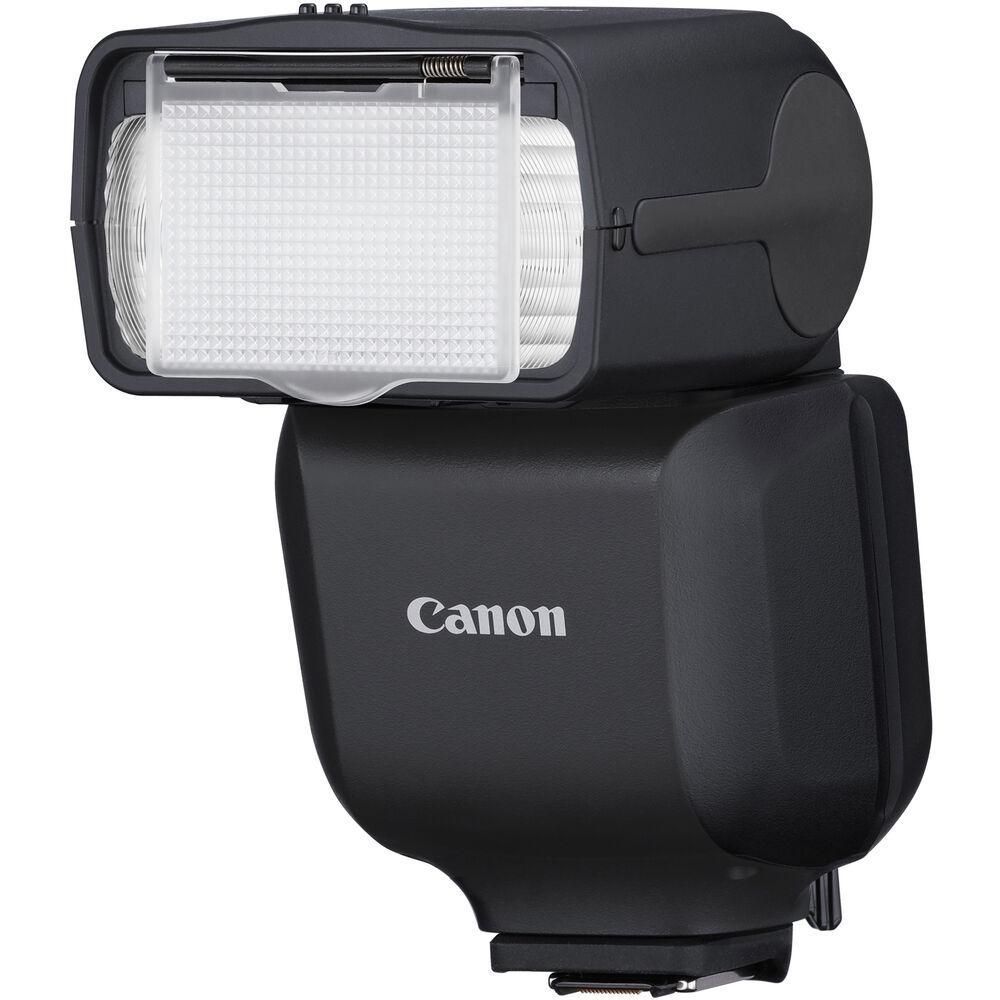

🪞 Catchlight and Wide Panels

An integrated catchlight panel can add a small highlight to a subject’s eyes while the main flash is bounced.

The wide panel expands beam coverage to approximately 14mm. Because it spreads the available light more broadly, it also reduces the flash’s effective working distance.

🎨 Flash Exposure Memory

Flash Exposure Memory can transfer an E-TTL-calculated output level to manual flash.

A photographer can:

1. Use E-TTL to determine an initial exposure.

2. Transfer that output to manual power.

3. Continue shooting with more consistent illumination.

This is especially useful for posed portraits and products where the camera-to-subject distance remains stable.

⚙️ Three Custom Modes

C1, C2 and C3 can store frequently used flash configurations.

Possible setups include:

• E-TTL bounce flash

• Manual portrait lighting

• Outdoor high-speed sync

• Radio sender operation

• Off-camera receiver mode

These presets make it faster to move between different lighting situations.

📱 Direct Camera-Menu Access

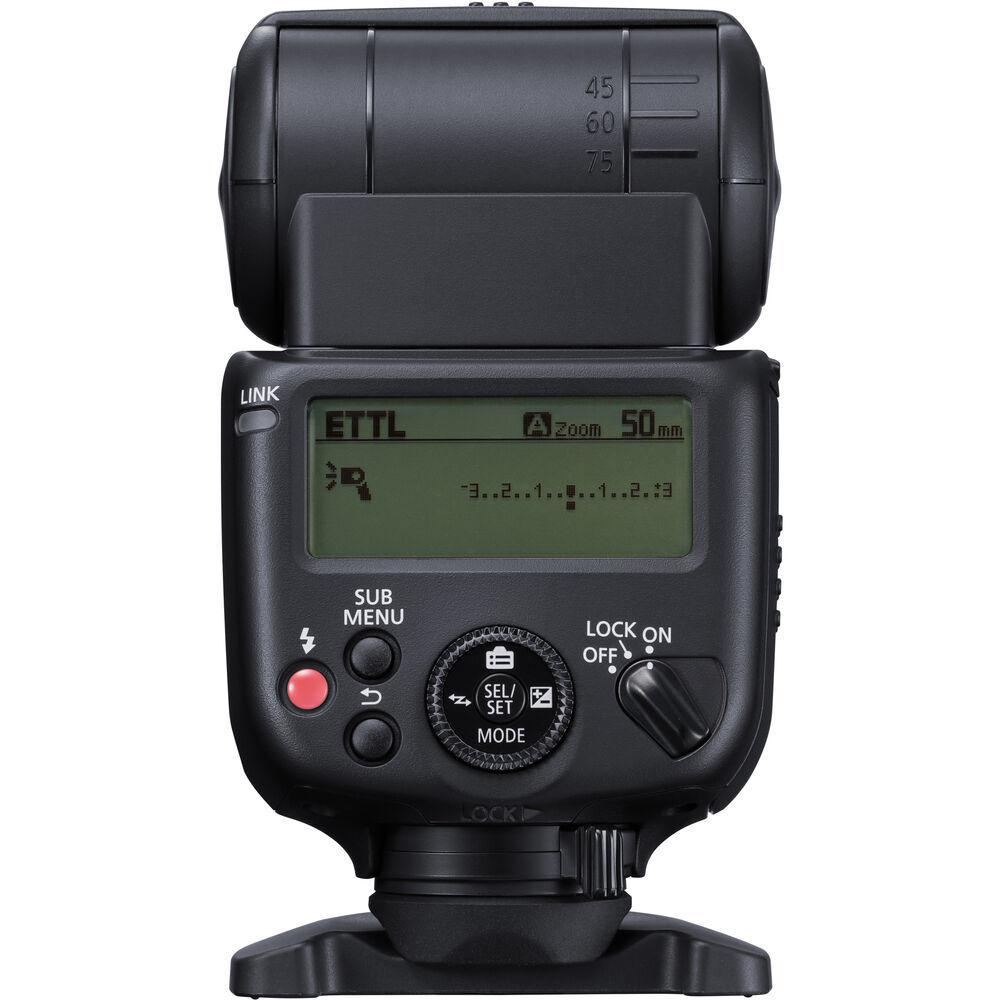

The Flash Menu Direct button provides quick access to flash settings on compatible camera displays.

Users can adjust supported settings through the camera interface rather than relying entirely on the flash’s LCD panel and controls.

Specific options depend on the connected camera and firmware.

⚠️ Multi-Function Shoe Compatibility

The EL-10 uses Canon’s 21-pin Multi-Function Shoe connection and requires a specifically compatible camera.

Supported models include selected cameras such as:

• EOS R1

• EOS R3

• EOS R5 Mark II

• EOS R6 Mark II

• EOS R7

• EOS R8

• EOS R10

• EOS R50

• Other supported Multi-Function Shoe cameras

Not every camera with an RF mount supports the EL-10. Compatibility and firmware should be verified before purchase.

The AD-E1 adapter is designed to place certain older five-pin accessories on newer Multi-Function Shoe cameras. It does not make the EL-10 work on an older conventional hot shoe.

🌤️ Indoor and Fair-Weather Design

Unlike the EL-5 and EL-1 Ver. 2, the EL-10 does not feature Canon’s professional weather-resistant construction.

It should be protected from:

• Rain

• Heavy mist

• Sand

• Excessive dust

• Condensation

• Liquid spills

Its metal mounting foot provides a secure connection to compatible cameras.

📋 Technical Specifications

Specification	Details
Flash exposure	E-TTL II, E-TTL and Manual
Maximum guide number	40m at ISO 100 and 105mm
Camera connection	Canon Multi-Function Shoe
Zoom coverage	24-105mm
Wide-panel coverage	Approximately 14mm
Manual output	1/1 to 1/1024
HSS minimum output	1/128
Flash exposure compensation	±3 stops
Flash exposure bracketing	±3 stops
Radio operation	Sender and receiver
Wireless range	Approximately 30m / 98 ft
Maximum communicating units	16 total
Wireless groups	5
Power source	4 AA alkaline or Ni-MH batteries
Recycle time with alkaline	Approximately 0.1-2.5 sec
Recycle time with Ni-MH	Approximately 0.1-1.5 sec
Modeling light	No
Weather resistance	No
Dimensions	Approximately 70.6 × 116.3 × 98.3mm
Weight	Approximately 287g / 10.1 oz without batteries

📸 Ideal For

• Family photography

• Portrait photographers

• Parties and events

• School functions

• Beginning off-camera flash users

• Travel photography

• Product photography

• Outdoor fill flash

• Content creators

• Photographers who prefer AA batteries

• Compatible EOS R camera owners

🆚 Speedlite EL-10 vs EL-5

Feature	Speedlite EL-10	Speedlite EL-5
Guide number	40m	60m
Zoom coverage	24-105mm	24-200mm
Power source	4 AA batteries	Rechargeable LP-EL
Recycle time	Up to 2.5 sec with alkaline	Up to 1.2 sec
Minimum manual power	1/1024	1/1024
Modeling light	No	Yes
Weather resistance	No	Yes
Weight	Approximately 287g	Approximately 491g
Best suited to	Compact everyday and enthusiast use	Weddings and professional events

Choose the EL-10 for portability, AA convenience and affordability. Choose the EL-5 for greater power, faster recycling and professional weather-resistant construction.

🆚 Speedlite EL-10 vs EL-1 Ver. 2

The EL-1 Ver. 2 offers active cooling, faster recycling, much lower manual output, professional weather sealing and a lithium-ion battery.

The EL-10 is substantially smaller and lighter, uses widely available AA batteries and still provides advanced radio wireless control. It is the better fit for casual events and portable lighting kits.

🆚 Speedlite EL-10 vs ST-E10

The EL-10 produces flash illumination and can control compatible off-camera radio Speedlites.

The ST-E10 is a compact transmitter only. It does not produce light. Choose the ST-E10 when all flashes will be positioned off camera and minimizing on-camera size is the priority.

📦 In the Box

• Canon Speedlite EL-10

• Canon Speedlite Case

• Canon Mini Stand

• Mounting Foot Cover

• Manufacturer documentation

AA batteries are available separately.

🎒 Recommended Kit Additions

Consider pairing the EL-10 with:

• Canon Speedlite Transmitter ST-E10

• Additional compatible radio Speedlites

• Four high-quality Ni-MH AA batteries

• AA battery charger

• Spare battery set

• Light stand

• Umbrella or compact softbox

• Speedlite bracket

• Reflector

• Color-correction gels

• Weather-protective pouch
