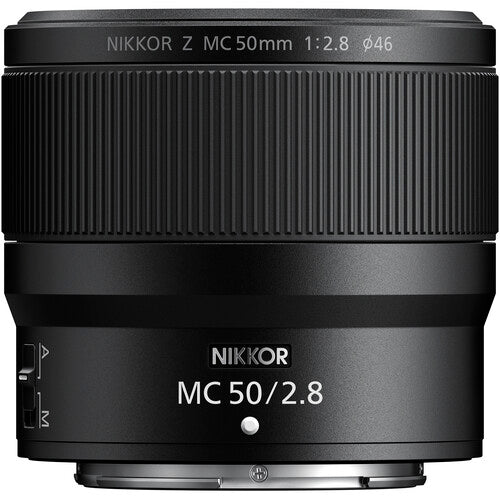

NIKKOR Z MC 50mm f/2.8 Macro Lens

The NIKKOR Z MC 50mm f/2.8 is a compact full-frame macro lens capable of reproducing a subject at true life size. Its 1:1 maximum reproduction ratio captures fine details in products, flowers, artwork, collectibles, jewelry and documents, while its natural 50mm perspective also works well for everyday photography.

Weighing approximately 260 grams, the lens is easy to carry and comfortable for handheld close-up work. Sharp edge-to-edge rendering, a focus limiter and displayed reproduction markings make it a practical macro lens for studio, commercial and creative photography.

📸 Key Benefits

• True 1:1 life-size macro reproduction

• Natural 50mm full-frame focal length

• Close focusing to approximately 0.16 metres

• Compact 260-gram design

• One ED and one aspherical lens element

• Nine-blade rounded diaphragm

• Fast, quiet stepping-motor autofocus

• Close-range focus limiter

• Visible reproduction-ratio markings

• Customizable control ring

• Compact 46mm filter thread

• Fluorine-coated front element

• Dust- and moisture-resistant construction

• Useful for both macro and everyday photography

🔎 True 1:1 Macro Reproduction

At its closest focusing distance, the lens produces a 1:1 reproduction ratio.

This means a subject measuring 10mm across is projected onto the camera sensor at approximately 10mm. Small objects can therefore fill the frame while retaining fine surface detail.

True macro reproduction is especially useful for:

• Jewelry

• Coins and stamps

• Flowers and plants

• Insects and small natural subjects

• Product details

• Artwork and crafts

• Collectibles

• Scientific and technical documentation

🌸 Close Focusing to 0.16 Metres

The lens focuses as close as approximately 0.16 metres from the camera’s sensor plane.

Because focusing distance is measured from the sensor rather than the front of the lens, the actual working distance at 1:1 is quite short. This is useful for tabletop and copy work but requires careful positioning of lighting around the subject.

For insects or subjects that may be disturbed by a nearby camera, the longer NIKKOR Z MC 105mm f/2.8 VR S provides greater working distance.

👁️ Natural 50mm Perspective

Beyond macro photography, the lens functions as a general-purpose 50mm prime.

It can be used for:

• Everyday photography

• Food

• Travel

• Street photography

• Environmental details

• Products

• Copy work

• Documentary assignments

On a Nikon DX-format camera, it provides an angle of view comparable to approximately 75mm on full frame, making it useful for portraits, details and macro work.

🔎 Edge-to-Edge Detail

The optical design contains 10 elements arranged in seven groups, including:

• One ED glass element

• One aspherical element

These components help control chromatic aberration, color fringing, distortion and loss of detail toward the edges of the frame.

The lens is designed to maintain sharp rendering from close-up distances through infinity.

🌈 Controlled Color Fringing

Macro subjects often contain high-contrast edges, reflections and extremely fine textures. The ED element helps minimize color fringing around these details.

This is especially useful when photographing:

• Jewelry

• Metallic products

• Reflective objects

• Fine print

• Electronics

• High-contrast flowers

• Artwork and documents

Accurate color and clean edges reduce the amount of correction required during post-production.

🌸 Smooth Background Rendering

A nine-blade rounded diaphragm helps create soft out-of-focus highlights and natural transitions away from the focal plane.

Depth of field becomes extremely shallow at macro distances, even when the lens is stopped down. This allows backgrounds to become soft and unobtrusive while the selected detail remains prominent.

For subjects requiring complete front-to-back sharpness, a tripod and focus-stacking technique may be useful.

🎯 Close-Range Focus Limiter

A focus limiter can restrict autofocus to the close-up range.

This reduces the distance through which the autofocus system must search and can improve responsiveness during macro work.

The full-range setting remains available when switching between close subjects and general photography.

Compatible camera firmware may be required for full focus-limiter support.

📏 Reproduction-Ratio Markings

As the lens focuses closer, markings on the extending barrel show the approximate reproduction ratio and focusing distance.

These markings help photographers identify important magnifications such as:

• 1:2 half life size

• Intermediate close-up ratios

• 1:1 full life size

This is helpful for product documentation and assignments requiring repeatable subject scale.

🎯 Fast, Quiet Autofocus

A stepping motor provides accurate and quiet autofocus for still photography and video.

At very high magnifications, small changes in camera or subject position can move the focal plane significantly. Manual focus or autofocus followed by slight camera-position adjustments may provide the most precise results.

The lens works with focus peaking and magnified live view on compatible Nikon Z cameras.

🎛️ Customizable Control Ring

The control ring can be assigned to:

• Manual focus

• Aperture

• ISO sensitivity

• Exposure compensation

Available functions depend upon the connected camera.

Manual focus is especially useful for macro photography because it allows precise placement of the narrow focal plane.

💡 Understanding Effective Aperture

The lens has a maximum aperture of f/2.8 when focused at or near infinity. As it focuses closer, the effective aperture becomes smaller because of the extension required for macro reproduction.

At the minimum focusing distance, the displayed effective maximum aperture is approximately f/5.6.

This is normal behavior for a macro lens and reflects the actual amount of light reaching the sensor at high magnification.

Additional light, a slower shutter speed or a higher ISO setting may be required for 1:1 photography.

🛡️ Camera-Based Stabilization

The lens does not contain optical Vibration Reduction.

Compatible full-frame Nikon Z cameras provide in-body stabilization, including the:

• Nikon Z5II

• Nikon Z6II and Z6III

• Nikon Z7II

• Nikon Z8

• Nikon Z9

• Nikon Zf

Stabilization can assist with general handheld photography, but its effectiveness is reduced at extreme macro distances. A tripod, focusing rail or flash may provide more consistent results at 1:1.

🎥 Macro Video Capability

The lens can capture detailed video of products, crafts, food and natural subjects.

Video-friendly benefits include:

• Quiet stepping-motor autofocus

• Smooth electromagnetic aperture operation

• Customizable control ring

• Compact size

• True macro reproduction

• Natural 50mm perspective

At high magnifications, a tripod or support system is recommended because small camera movements become highly visible.

🔘 Compact 46mm Filters

The lens accepts 46mm screw-in filters, including:

• Circular polarizing filters

• Neutral-density filters

• Protective filters

A polarizer can reduce reflections from glass, foliage and some product surfaces.

The included HN-41 screw-in hood helps shield the front element and protects the extending lens section during close-up work.

🪶 Compact, Lightweight Design

The lens measures approximately:

• Maximum diameter: 74.5mm

• Length: 66mm

• Weight: 260g

Its low weight makes it comfortable for handheld photography and easy to include in a travel or product-photography kit.

🌦️ Weather-Resistant Construction

The lens is designed with attention to dust- and moisture-resistant performance.

A fluorine coating on the front element helps repel moisture, fingerprints and dirt while simplifying cleaning.

The lens is weather resistant rather than waterproof, and additional care should be taken because macro photography often places the camera close to soil, water and vegetation.

📐 Important Specifications

• Focal length: 50mm

• Maximum aperture at infinity: f/2.8

• Maximum effective aperture at 1:1: Approximately f/5.6

• Minimum aperture: f/22 at infinity; effective f/32 at minimum focus

• Lens construction: 10 elements in seven groups

• Minimum focus distance: Approximately 0.16m

• Maximum reproduction ratio: 1:1

• Diaphragm: Nine rounded blades

• Filter size: 46mm

• Maximum diameter: Approximately 74.5mm

• Length: Approximately 66mm

• Weight: Approximately 260g

👤 Ideal For

The NIKKOR Z MC 50mm f/2.8 is particularly well suited to:

• Product photographers

• Jewelry and collectible photography

• Flowers and botanical subjects

• Food photography

• Artwork and document reproduction

• Crafts and small-business products

• Technical documentation

• Everyday photography

• Photographers seeking a compact first macro lens

• Anyone who needs true 1:1 reproduction in a lightweight design

🆚 MC 50mm f/2.8 vs. MC 105mm f/2.8 VR S

Choose the MC 50mm f/2.8 when you prioritize:

• Smaller size

• Lower weight

• Tabletop and copy photography

• A natural everyday perspective

• Compact 46mm filters

• An approachable macro system

Choose the MC 105mm f/2.8 VR S when you prioritize:

• Greater working distance

• Insects and living subjects

• Premium S-Line optics

• Built-in Vibration Reduction

• Stronger background compression

• Portrait photography

• Professional outdoor macro work

Both provide true 1:1 reproduction. The 50mm is the compact tabletop option, while the 105mm is the professional working-distance specialist.

🆚 MC 50mm f/2.8 vs. 50mm f/1.8 S

Choose the MC 50mm f/2.8 when you prioritize:

• True macro reproduction

• Product and detail photography

• Closer focusing

• Smaller size and lower weight

• Copy and documentation work

Choose the 50mm f/1.8 S when you prioritize:

• Portraits

• Better low-light capability

• Shallower depth of field at ordinary distances

• Premium S-Line optical performance

• Faster everyday autofocus operation

The MC lens is the close-up specialist, while the f/1.8 S is the premium general-purpose normal prime.

🆚 MC 50mm f/2.8 vs. 50mm f/1.4

Choose the MC 50mm f/2.8 when you prioritize:

• 1:1 macro capability

• Products and small subjects

• Compact close-up photography

• Technical and copy work

Choose the 50mm f/1.4 when you prioritize:

• Available-light photography

• Portraits

• Soft background blur

• Weddings and events

• Cinematic video

These lenses share a focal length but serve distinctly different purposes.

📦 In the Box

• NIKKOR Z MC 50mm f/2.8 lens

• LC-46B 46mm front lens cap

• LF-N1 rear lens cap

• HN-41 screw-in lens hood

• CL-C1 lens case

• Documentation

🧩 Recommended Kit Pairings

Complete your macro system with:

• Nikon Z7II, Z8 or Z9 for high-resolution detail

• Nikon Z5II or Z6III for general product and close-up work

• Stable tripod

• Macro focusing rail

• Remote shutter release

• Small flash or continuous LED lighting system

• Reflectors and diffusion material

• Color reference target

• Protective camera bag and cleaning supplies
