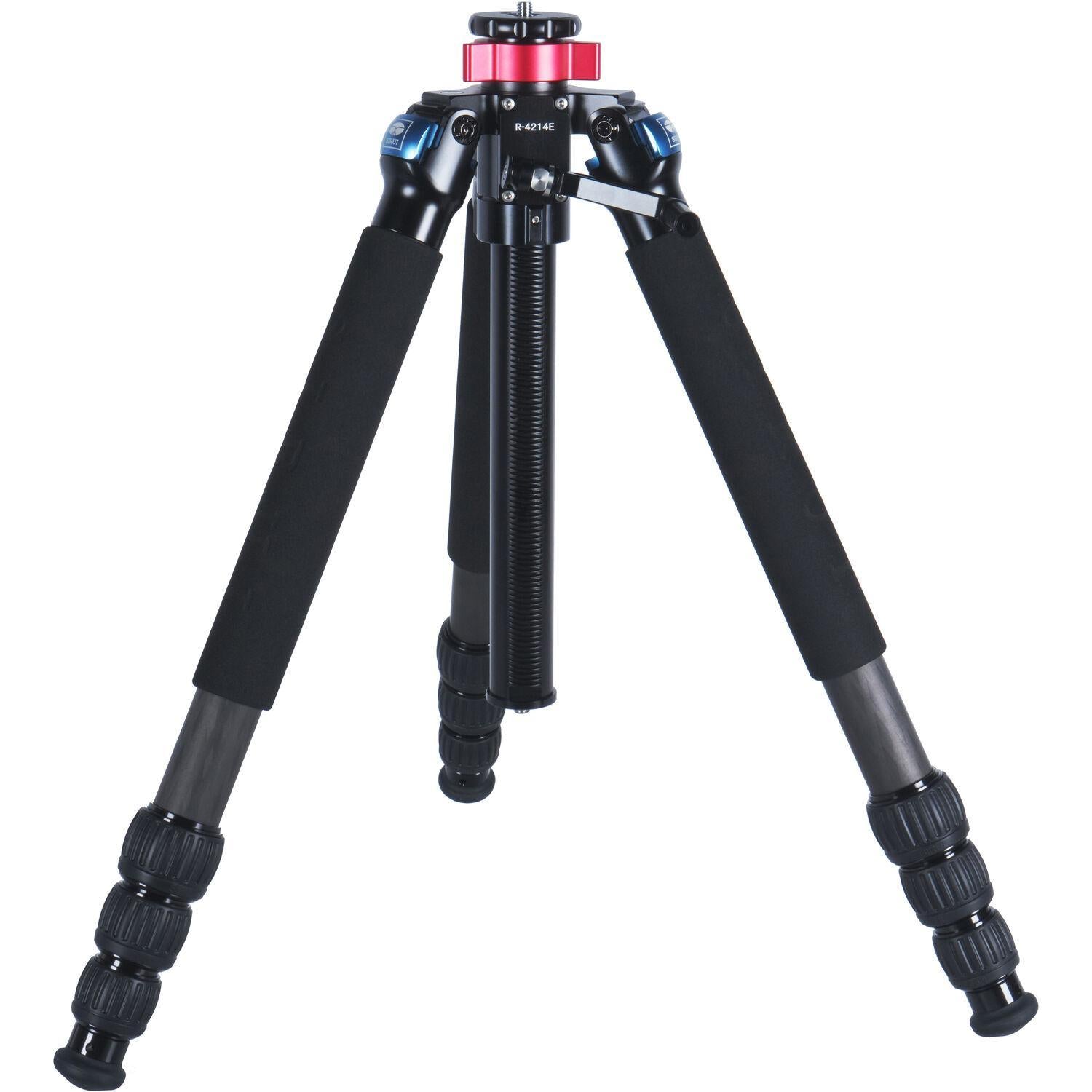

SIRUI R-4214E Carbon Fiber Tripod with Geared Center Column

The SIRUI R-4214E is a heavy-duty professional carbon fiber tripod engineered for demanding camera systems, long telephoto lenses, studio photography, spotting scopes, telescopes, and other applications where stability and precise positioning are essential.

Its geared center column provides controlled height adjustments, while large-diameter carbon fiber legs, independent leg positioning, and a substantial 30.9 lb load capacity create a stable platform for professional equipment.

⚡ Key Benefits

• Heavy-duty carbon fiber tripod construction

• Supports camera systems weighing up to 30.9 lb

• Reaches a maximum working height of 70.3"

• Geared center column for precise height adjustments

• Four-section legs with twist-lock operation

• Three independently adjustable leg angles

• Graduated leg markings for repeatable positioning

• Reversible 1/4"-20 and 3/8"-16 mounting stud

• Built-in bubble level

• Interchangeable rubber and stainless-steel spiked feet

• Padded leg covers for improved grip

• Includes carrying case and shoulder strap

Heavy-Duty Carbon Fiber Construction

The R-4214E uses multilayer carbon fiber legs to provide an excellent combination of rigidity, vibration resistance, and manageable weight. Its substantial construction makes it particularly well suited for heavier professional equipment and situations where maximum stability is more important than ultralight portability.

Carbon fiber also helps dampen vibration more effectively than conventional metal tripod legs, an important advantage when photographing with high-resolution cameras, long lenses, or slower shutter speeds.

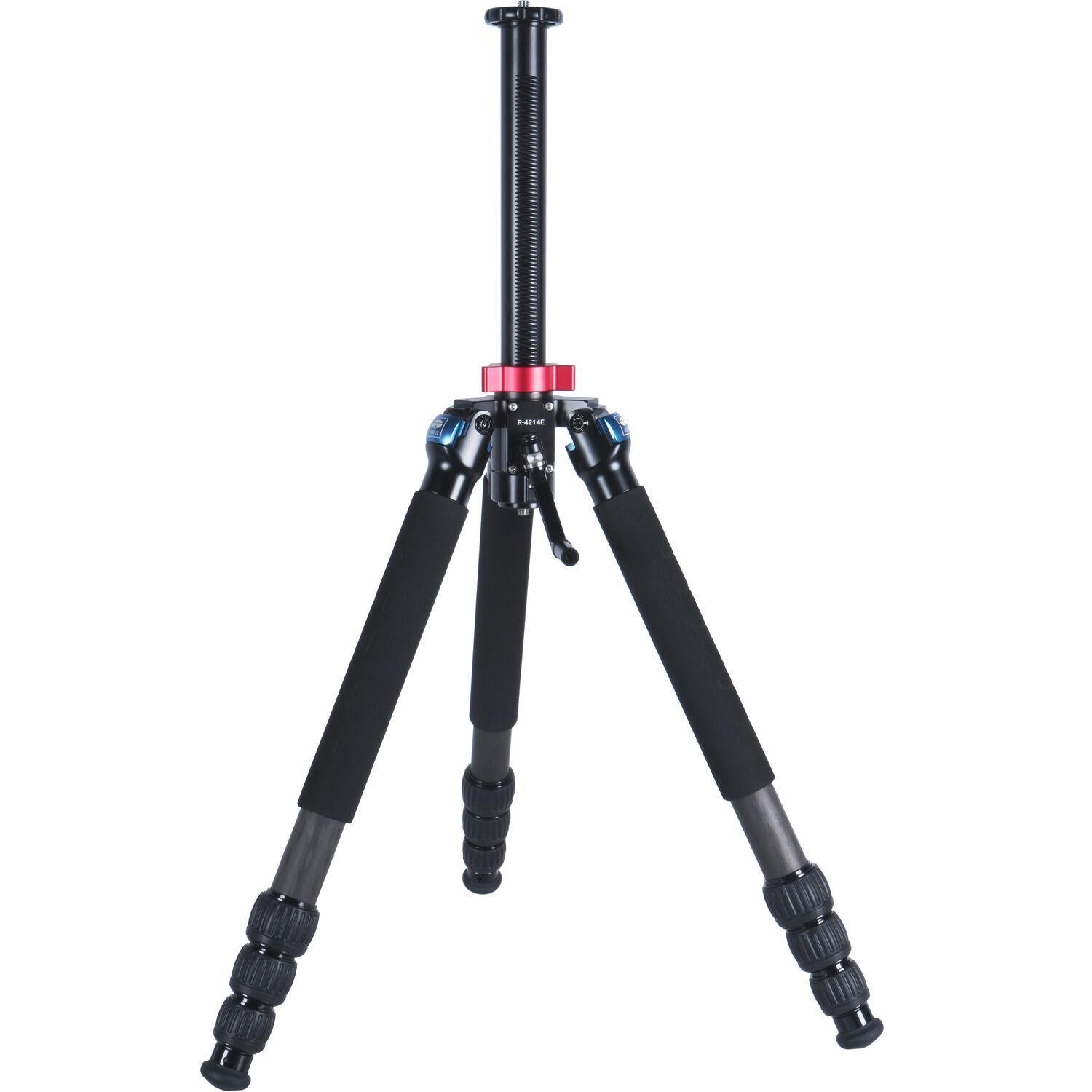

Precision Geared Center Column

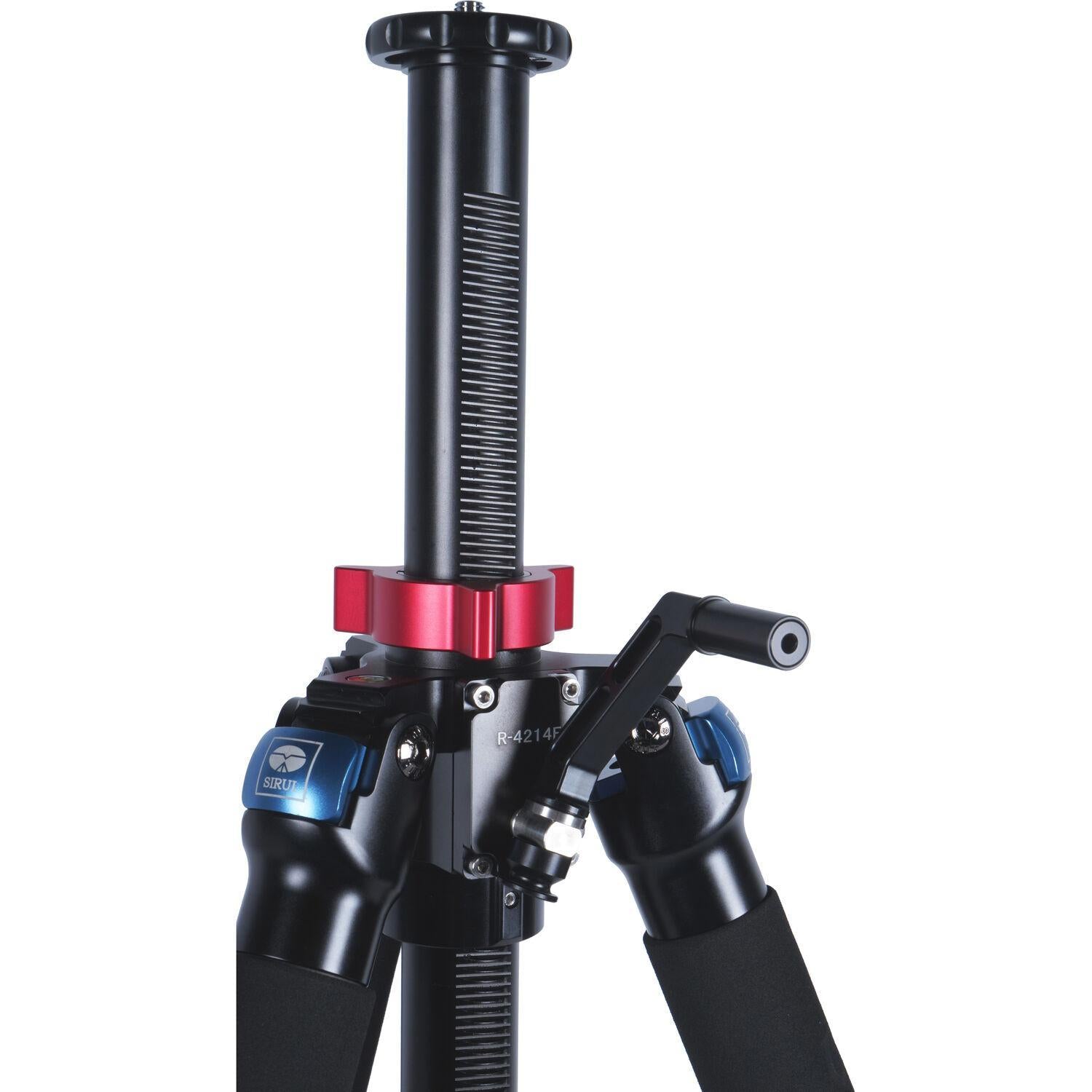

Unlike a conventional sliding center column, the R-4214E features a crank-operated geared column that allows the camera’s height to be adjusted gradually and precisely.

The column provides approximately 9.8" of adjustment and incorporates a locking collar to secure the selected height. Its crank handle folds against the column for more convenient transportation and storage.

This controlled movement is especially useful for:

• Studio and product photography

• Architectural photography

• Macro and close-up work

• Copy and reproduction photography

• Telescopes and spotting scopes

• Precision measuring equipment

Professional Height Range

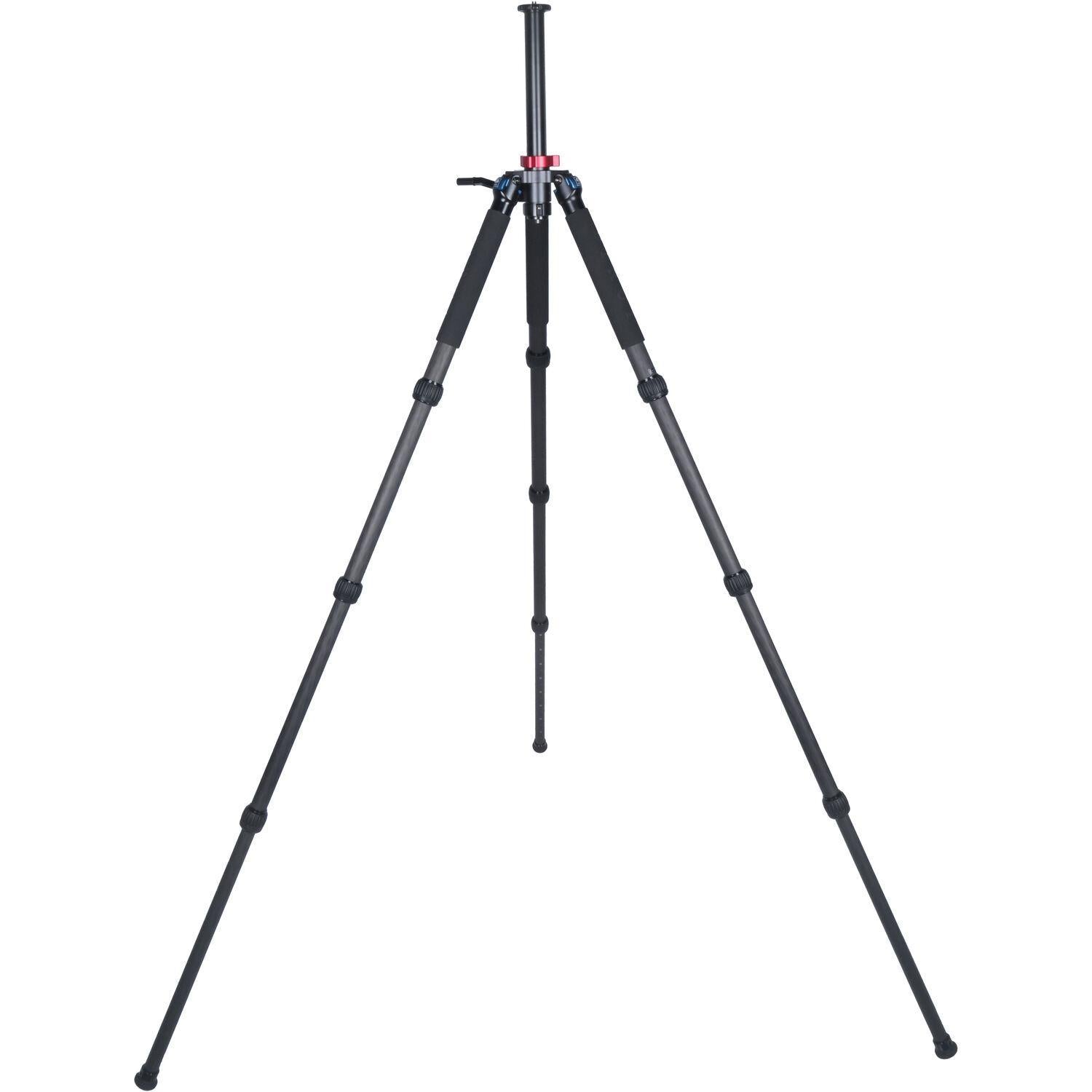

With the center column extended, the tripod reaches approximately 70.3", providing a comfortable working height for taller photographers and elevated camera positions.

With the column lowered, it reaches approximately 60.4", allowing the tripod to maintain maximum rigidity while still providing substantial height. The minimum working height is approximately 15.4".

Strong Four-Section Legs

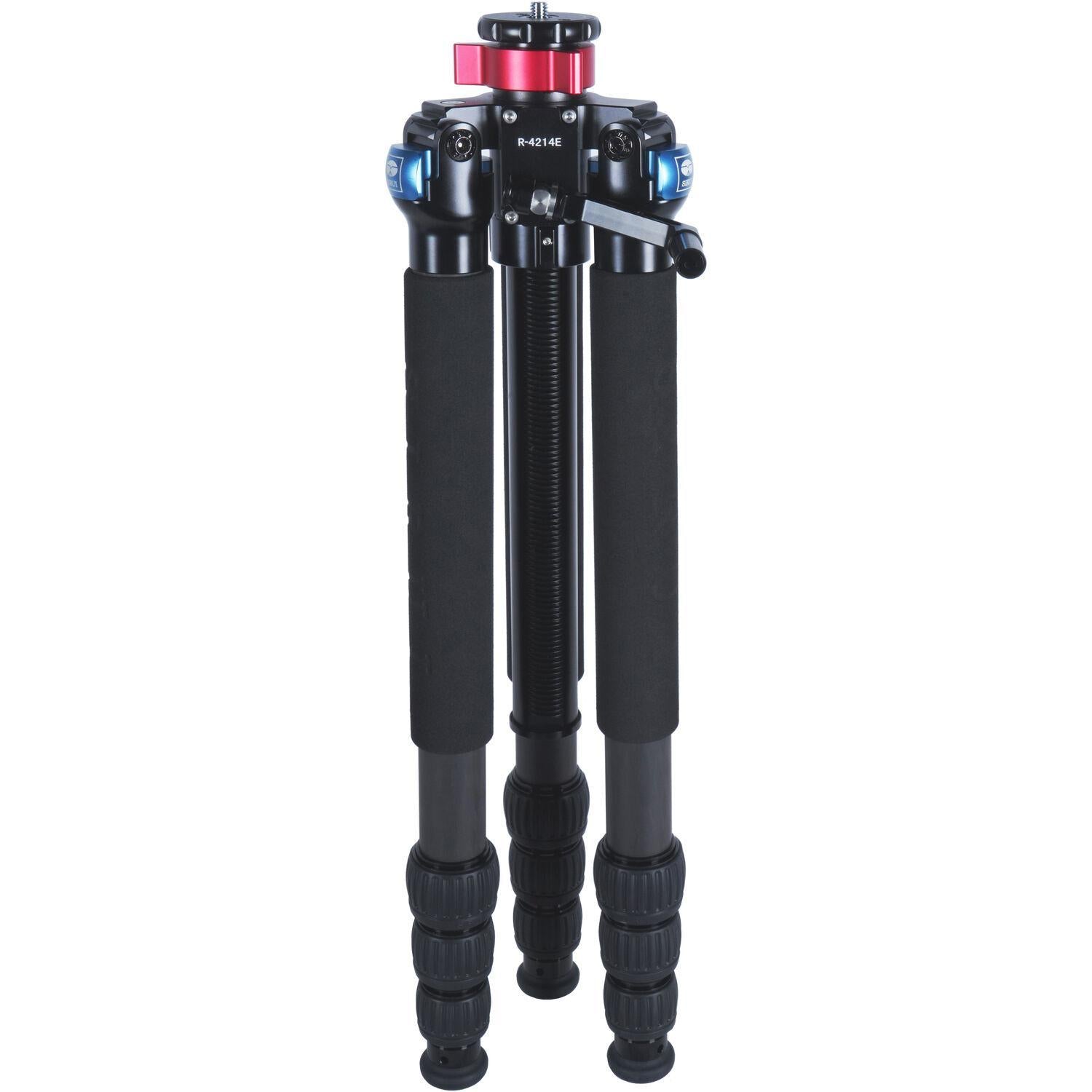

The four-section carbon fiber legs balance stability with a folded length of approximately 23". Twist locks provide secure adjustment and allow the tripod to be deployed quickly.

Graduated markings in 5cm increments make it easier to extend each leg consistently or recreate a previous setup—particularly valuable for studio, architectural, surveying, and technical applications.

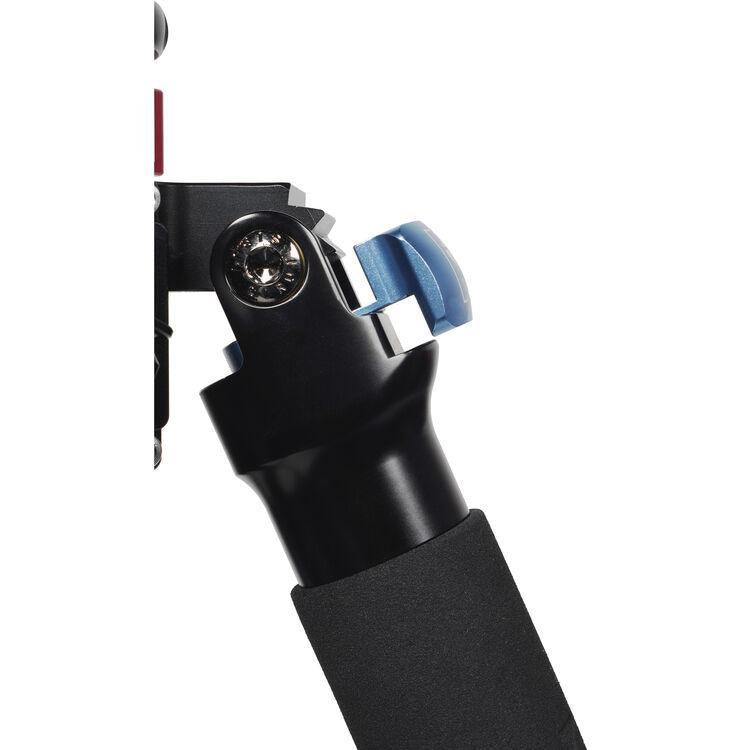

Independent Leg Positioning

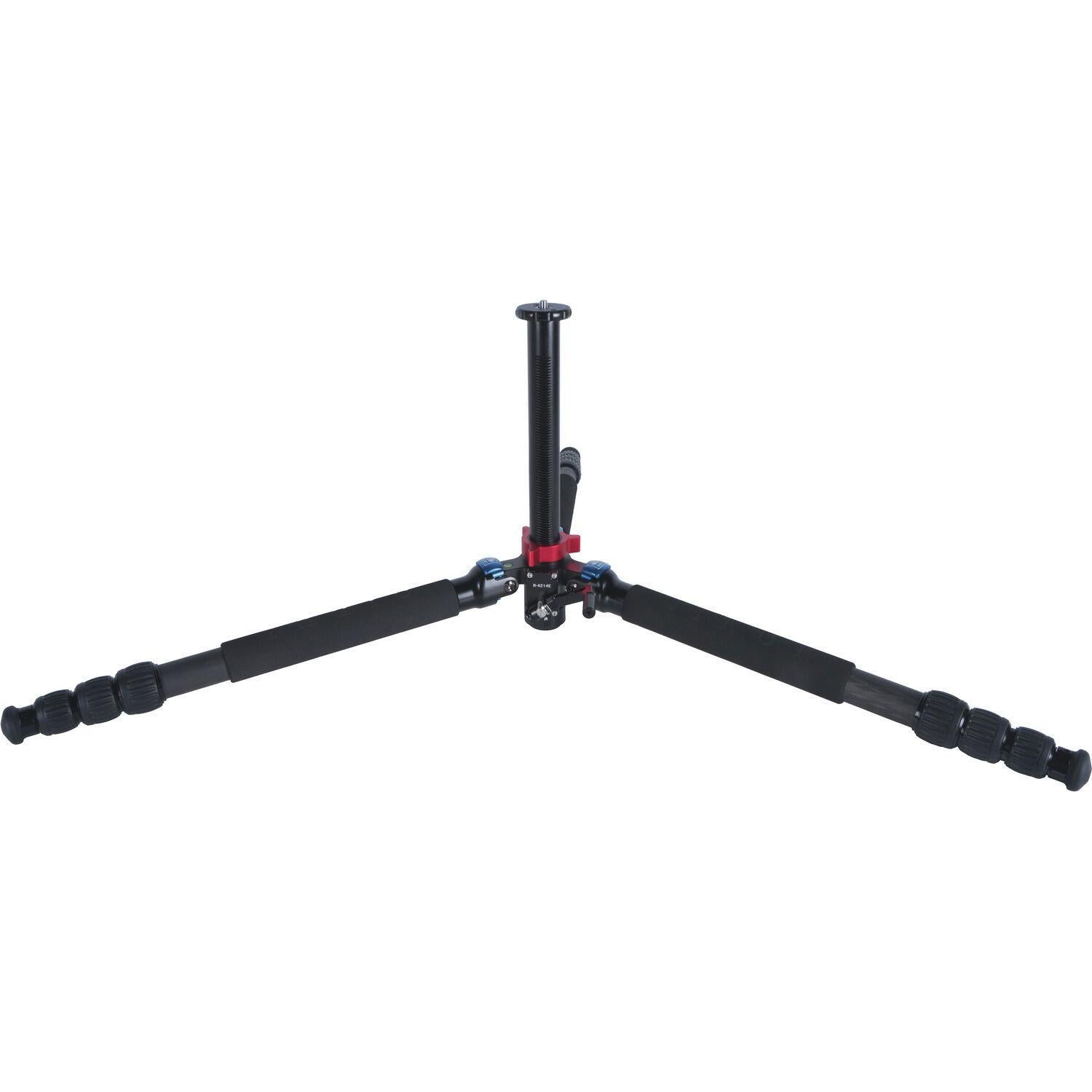

Each leg can be positioned independently at one of three angles. This provides greater flexibility when working on stairs, slopes, rocky terrain, or other uneven surfaces.

The independently adjustable legs also allow the tripod to be lowered or leveled without requiring every leg to be positioned identically.

Flexible Head Compatibility

A reversible mounting stud provides both 1/4"-20 and 3/8"-16 threads, allowing the R-4214E to accept a wide range of photographic and video heads.

Compatible head options include:

• Ball heads

• Pan-and-tilt heads

• Gimbal heads

• Geared heads

• Fluid video heads

• Specialized telescope or observation mounts

A separate tripod head is required and is not included.

The underside of the center column also includes a 3/8"-16 mounting point, allowing a compatible head and camera to be mounted in an inverted position for specialized low-angle or close-up work.

Built for Different Surfaces

The standard rubber feet provide dependable traction while helping protect finished indoor surfaces.

For outdoor use on soil, grass, gravel, ice, or other challenging terrain, the rubber feet can be removed and replaced with the included stainless-steel spikes.

Comfortable Professional Handling

Padded covers on all three upper leg sections provide a more comfortable grip when carrying or repositioning the tripod. They also make the carbon fiber legs easier to handle in cold weather.

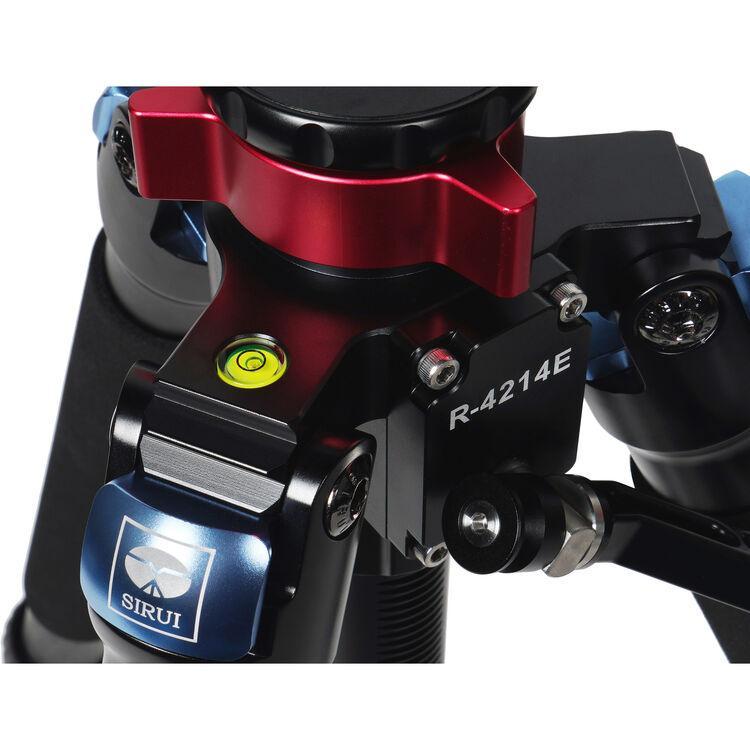

A built-in bubble level helps with quick horizontal alignment before making finer adjustments through the tripod head.

Ideal For

• Professional studio photography

• Cameras with large telephoto lenses

• Wildlife and bird photography

• Sports photography

• Architectural and interior photography

• Product and commercial photography

• Macro and copy work

• High-resolution landscape photography

• Telescopes and spotting scopes

• Precision measuring equipment

• Photographers prioritizing stability over minimum weight

How It Compares

Compared with a Travel Tripod

A travel tripod is smaller and lighter, making it easier to carry over long distances. The R-4214E provides considerably greater stability, height, and support for heavy professional equipment.

Choose the R-4214E when rigidity and load capacity matter more than ultralight portability.

Compared with a Standard Rapid Center Column

A rapid column can be raised or lowered quickly by hand. The R-4214E’s geared column provides slower but much more precise and controlled height adjustments, making it especially useful in studio, macro, architectural, and technical applications.

Compared with an Aluminum Tripod

Carbon fiber provides excellent rigidity and vibration damping without the additional weight that would normally accompany a similarly substantial aluminum tripod. It is also more comfortable to handle in very hot or cold conditions.

Key Specifications

• Primary material: Carbon fiber

• Maximum load capacity: 30.9 lb / 14 kg

• Maximum working height: 70.3" / 178.5cm

• Maximum height with center column lowered: 60.4" / 153.5cm

• Minimum working height: 15.4" / 39cm

• Folded length: 23.2" / 59cm

• Tripod weight: 7.3 lb / 3.3 kg

• Leg sections: Four

• Leg locks: Twist locks

• Leg-angle positions: Three

• Center column: Geared, crank-operated

• Center-column adjustment: Approximately 9.8" / 25cm

• Head mounting threads: Reversible 1/4"-20 and 3/8"-16

• Bubble level: Yes

• Feet: Interchangeable rubber feet and stainless-steel spikes

• Color: Black

• Detachable monopod: No

• Tripod head included: No

In the Box

• SIRUI R-4214E Carbon Fiber Tripod

• Three stainless-steel spiked feet

• Carrying case with shoulder strap

• Three Allen wrenches

• Documentation

Complete Your Kit

Consider pairing this tripod with:

• SIRUI professional ball head

• Gimbal head for large telephoto lenses

• Geared head for architectural or studio work

• Fluid video head

• Camera or lens quick-release plate

• Long telephoto lens

• Remote shutter release

• Additional tripod stability weight

• Protective camera bag
