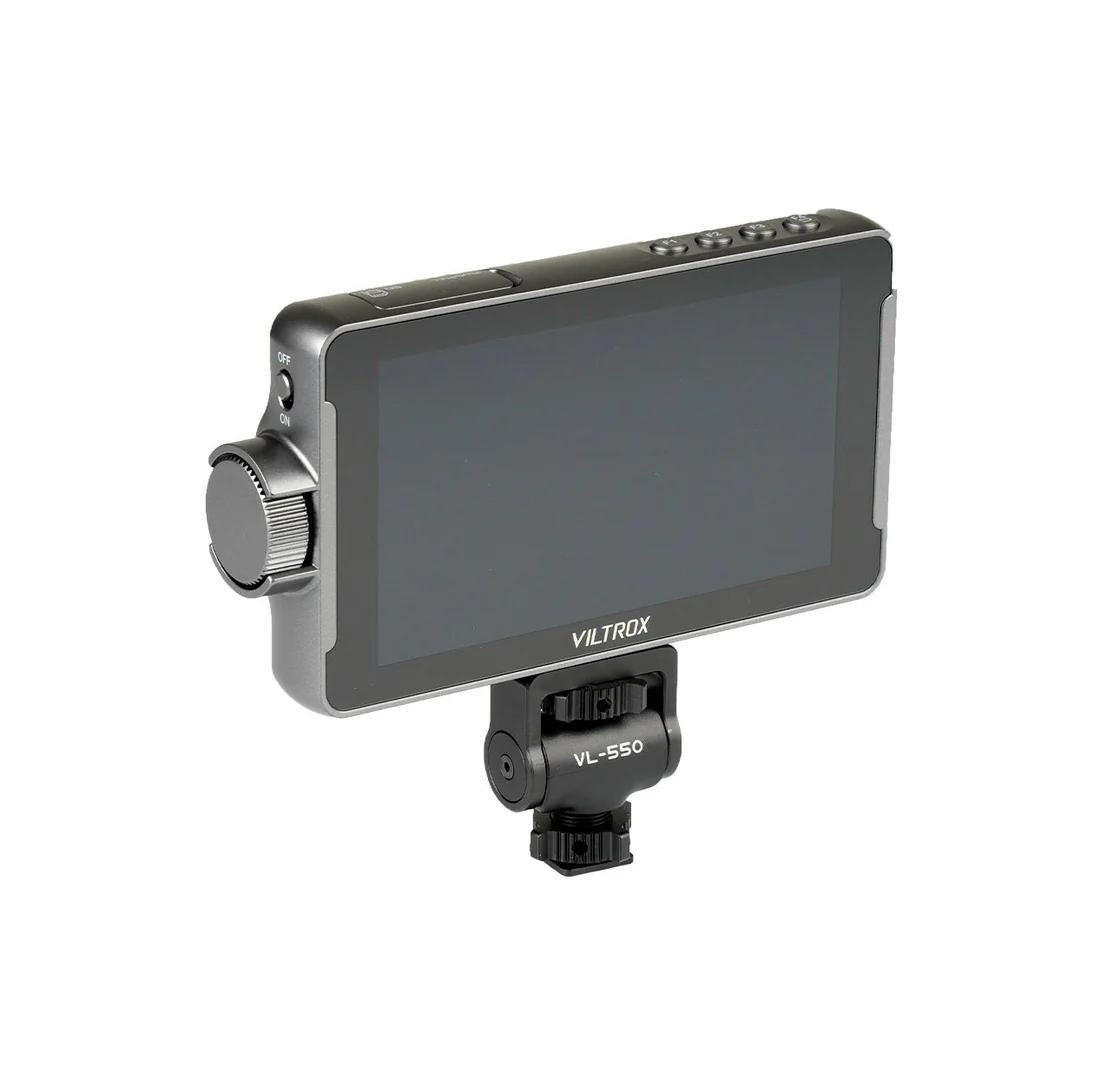

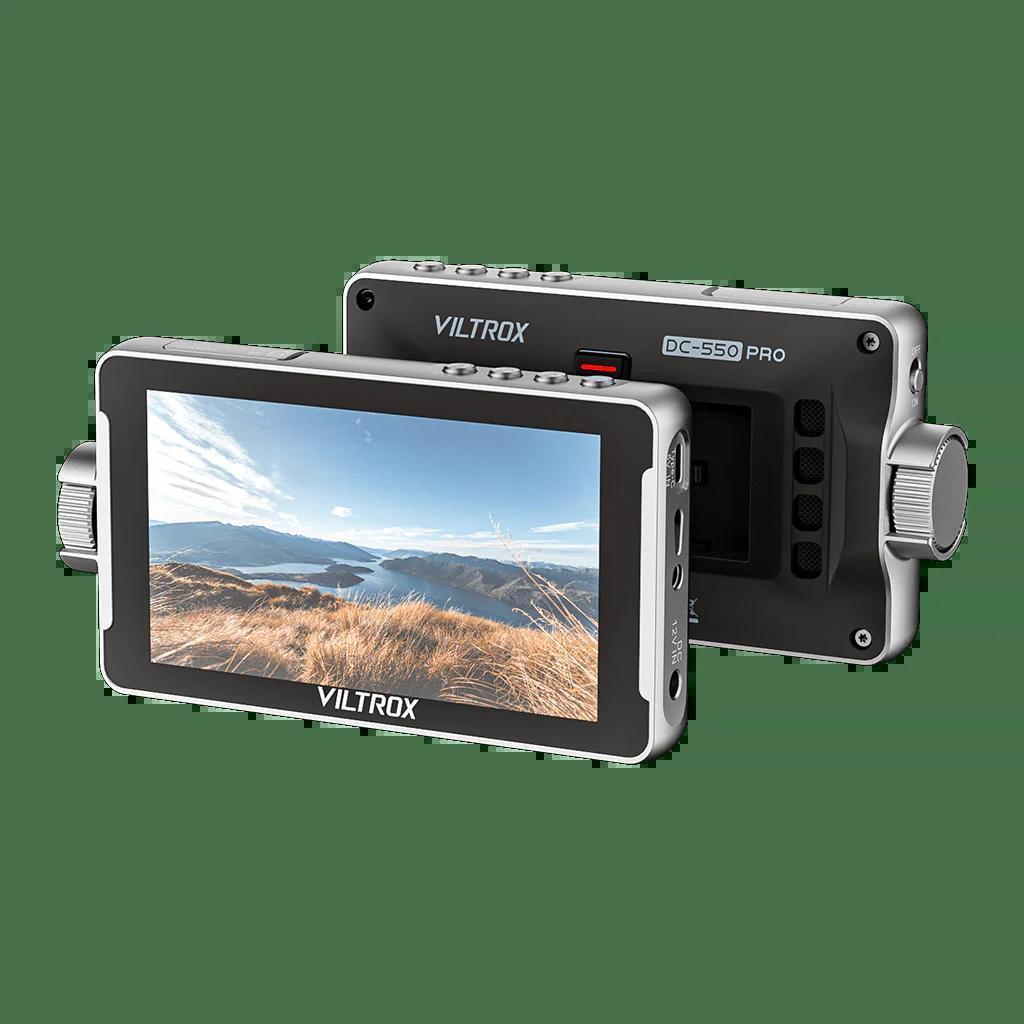

Viltrox DC-550 PRO 5.5-Inch Touchscreen Camera Monitor

The Viltrox DC-550 PRO is a compact, daylight-viewable camera monitor with a bright 5.5-inch Full HD touchscreen. Designed for filmmakers, videographers, and content creators, it provides a larger and more detailed view than most built-in camera displays while adding professional tools for evaluating focus, exposure, color, and composition.

With 4K HDMI input and loop output, custom 3D LUT support, multiple scopes, and a complete accessory kit, the DC-550 PRO is ready for use on a camera, cage, gimbal, or production rig.

⚡ Key Benefits

• 5.5-inch Full HD touchscreen

• Sharp 1920 × 1080 native resolution

• Bright 1200-nit display for outdoor use

• Wide 178° viewing angle

• Supports video signals up to 4K at 30 fps

• Full-size HDMI input and loop output

• Custom 3D LUT import through an SD card

• Professional exposure and focusing tools

• Rec.709 color support

• Built-in cooling fan

• Headphone output and onboard speaker

• Includes battery, mounting adapter, hood, and cables

Bright Full HD Display

The 5.5-inch LCD combines 1920 × 1080 resolution with 1200-nit brightness, making fine details easier to evaluate both indoors and outside.

Its 178° viewing angle allows the picture to remain clearly visible when the monitor is viewed from above, below, or off to the side—helpful when working with a crew or positioning the camera at an unusual angle.

Touchscreen and Physical Controls

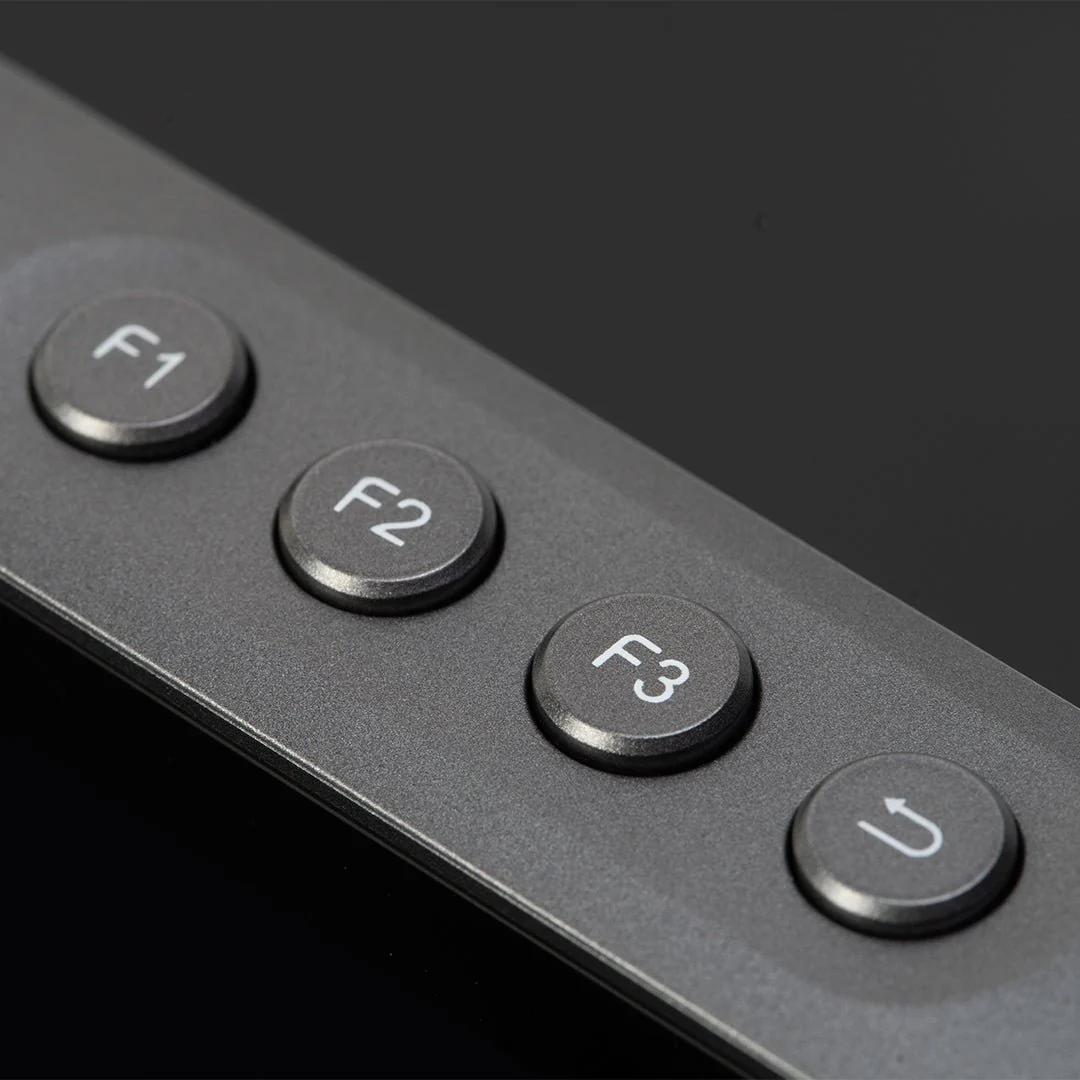

The responsive touchscreen provides quick access to settings and monitoring tools. Physical shortcut buttons and a control knob are also available when tactile control is preferable.

Assignable function buttons make frequently used tools readily accessible during production.

4K HDMI Input and Loop Output

Full-size HDMI input accepts video signals up to 4K at 30 fps. A full-size HDMI loop output passes the signal to another monitor, recorder, video transmitter, or switching system.

The monitor displays incoming 4K signals on its native Full HD panel while preserving the signal through the HDMI output.

Professional Monitoring Tools

The DC-550 PRO includes tools for making informed focusing, exposure, and color decisions:

• Focus peaking

• False color

• Zebra exposure indicators

• Waveform monitoring

• RGB, Y, and YUV parade displays

• Histogram

• Vectorscope

• Pixel-to-pixel viewing

• Image zoom

• Audio level meters

• Image flip

• Safe-area guides

• Center markers

• Adjustable aspect ratios

These tools provide more useful information than a standard camera LCD alone.

Custom 3D LUT Support

Custom 3D LUTs can be loaded through a separately available SD card. This allows footage captured in a flat or Log profile to be previewed with a more finished color appearance during production.

The monitor also follows the Rec.709 color standard for natural and consistent viewing.

Flexible Power Options

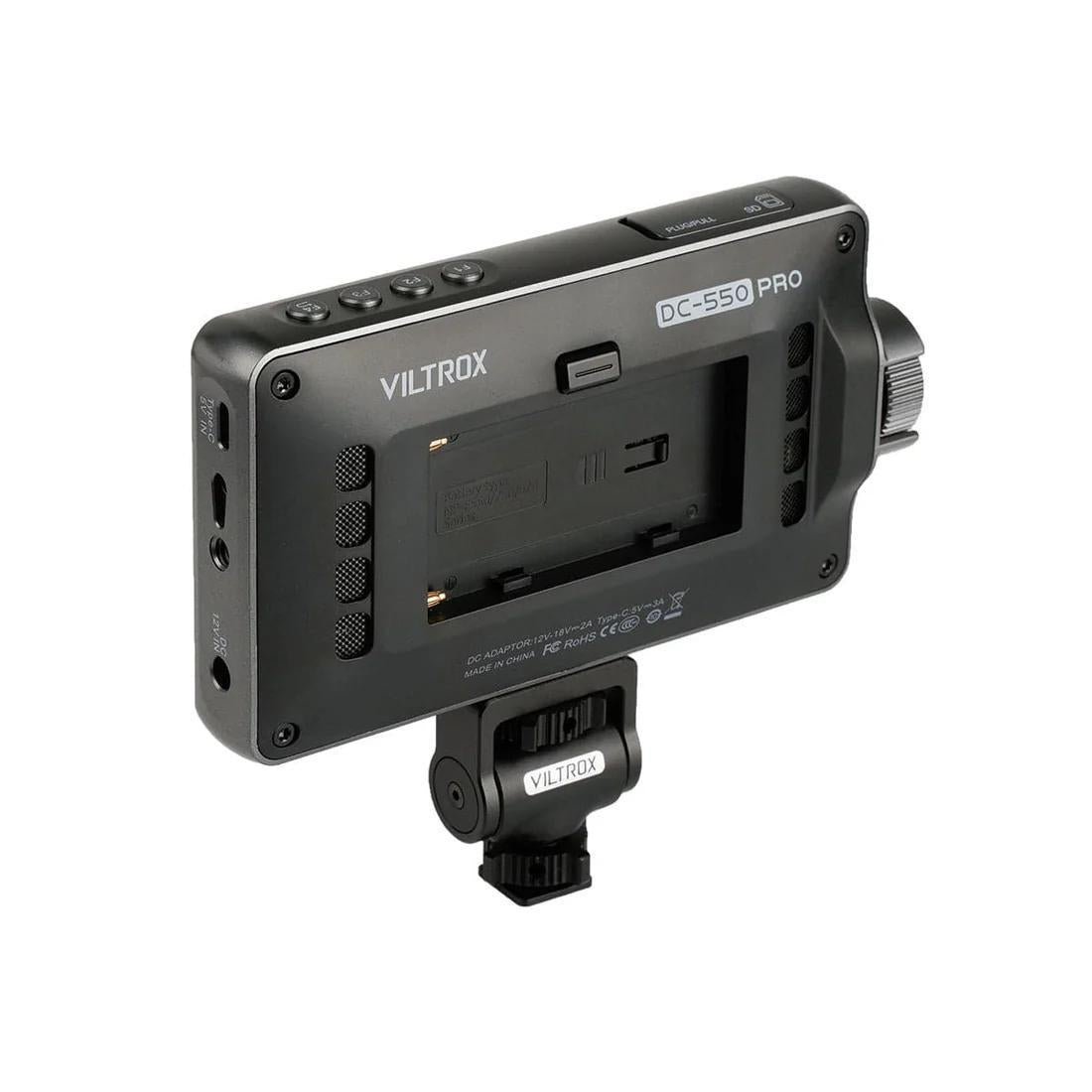

The integrated battery plate accepts common Sony L-series batteries, including:

• NP-F550 and NP-F570

• NP-F750 and NP-F770

• NP-F960 and NP-F970

The monitor can also be powered through its DC input or USB-C connection with compatible power equipment.

Designed for Camera Rigs

Two 1/4"-20 mounting points provide flexible installation on cameras, cages, articulating arms, and video rigs. The included shoe-mount adapter allows convenient positioning directly above the camera.

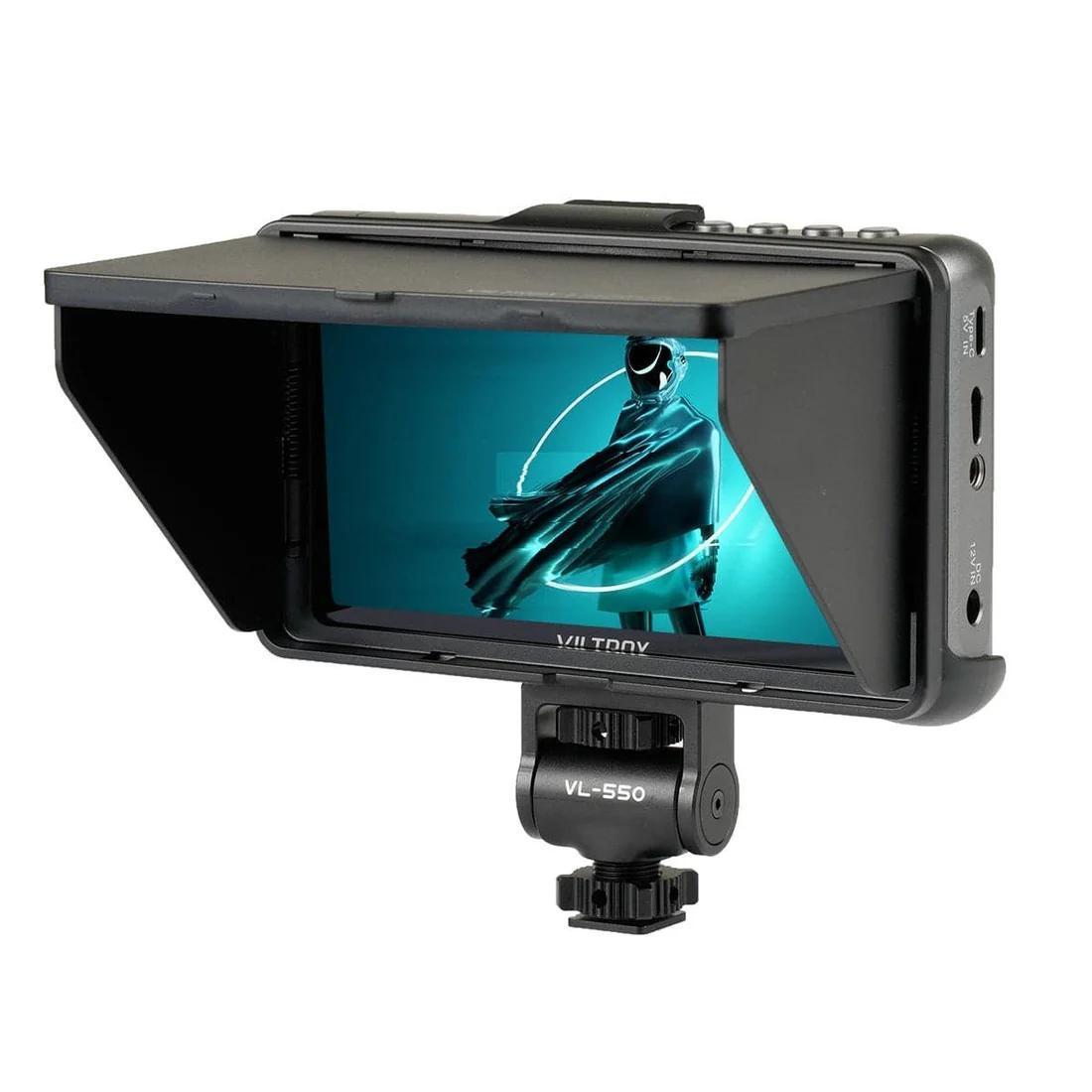

A quick-release sun hood provides additional protection from glare during outdoor filming.

Ideal For

• Filmmakers and videographers

• Wedding and event video

• Commercial productions

• Interviews and documentaries

• YouTube and social-media creators

• Cinema-camera operators

• Mirrorless and DSLR video users

• Gimbal and camera-rig operators

• Photographers needing a larger live-view display

How It Compares

Compared with a Camera’s Built-In Screen

The DC-550 PRO provides a larger, brighter display along with professional scopes, focusing aids, custom LUT support, and HDMI signal pass-through.

Compared with the Standard DC-550

The PRO model adds more advanced waveform and histogram options, expanded parade displays, a cooling fan, and higher-end monitoring capabilities.

Compared with a Monitor/Recorder

The DC-550 PRO is designed primarily for viewing and image evaluation. A monitor/recorder adds external video recording but is typically larger and more expensive.

Key Specifications

• Display size: 5.5 inches

• Native resolution: 1920 × 1080

• Brightness: 1200 nits

• Viewing angle: 178°

• Video input: Full-size HDMI 1.4

• Video output: Full-size HDMI 1.4

• Maximum supported signal: 4K at 30 fps

• Audio monitoring: Built-in speaker and 3.5mm headphone output

• LUT import: SD card

• Battery type: Sony NP-F/L-series

• External power: DC input or compatible USB-C power

• Mounting points: 1/4"-20

• Dimensions: Approximately 165 × 91 × 28.5mm

• Weight: Approximately 280g

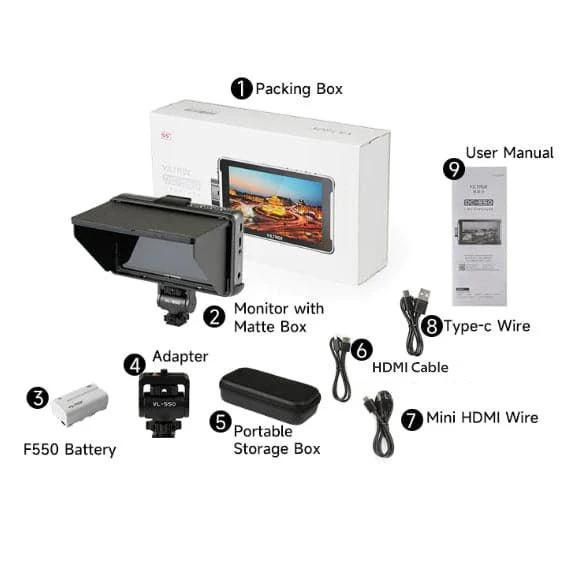

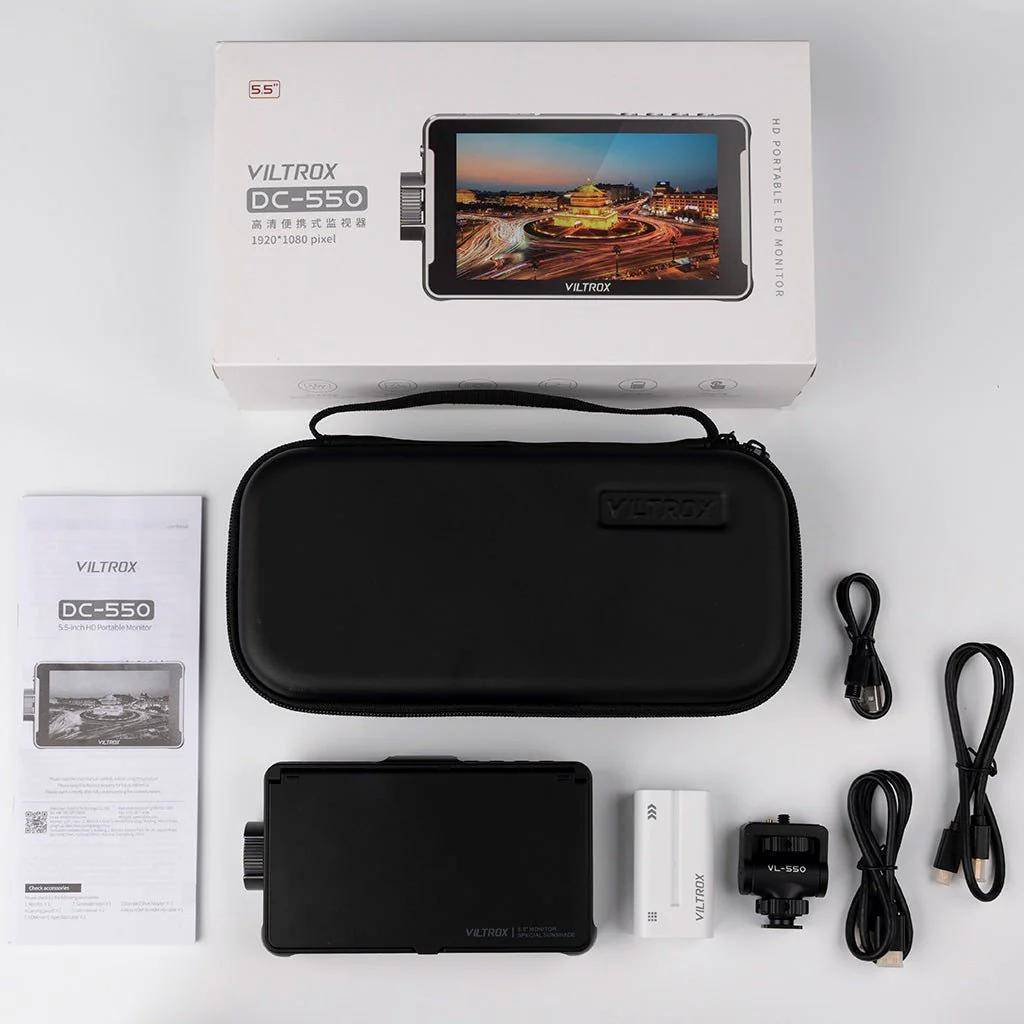

In the Box

• Viltrox DC-550 PRO Monitor

• Sun hood

• Sony L-series battery

• Shoe-mount adapter

• HDMI Type-A to Type-A cable

• HDMI Type-A to Mini-HDMI cable

• USB-C cable

• Storage box

• Documentation

Complete Your Kit

Consider pairing this monitor with:

• Compatible HDMI camera cable

• Additional Sony NP-F battery

• NP-F battery charger

• Camera cage or articulating arm

• Short HDMI cable

• High-speed SD card for loading LUTs

• Video tripod or gimbal

• Protective carrying case
