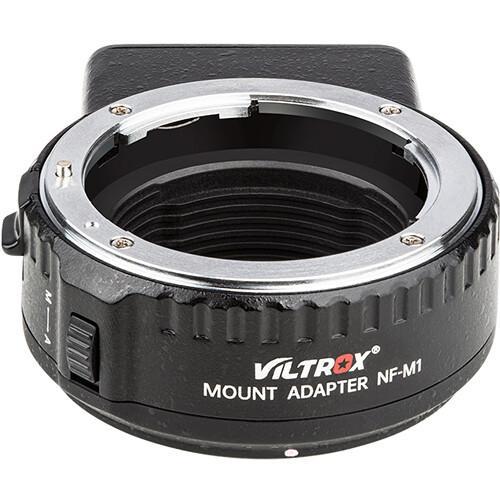

Viltrox NF-M1 Autofocus Lens Mount Adapter for Nikon F to Micro Four Thirds

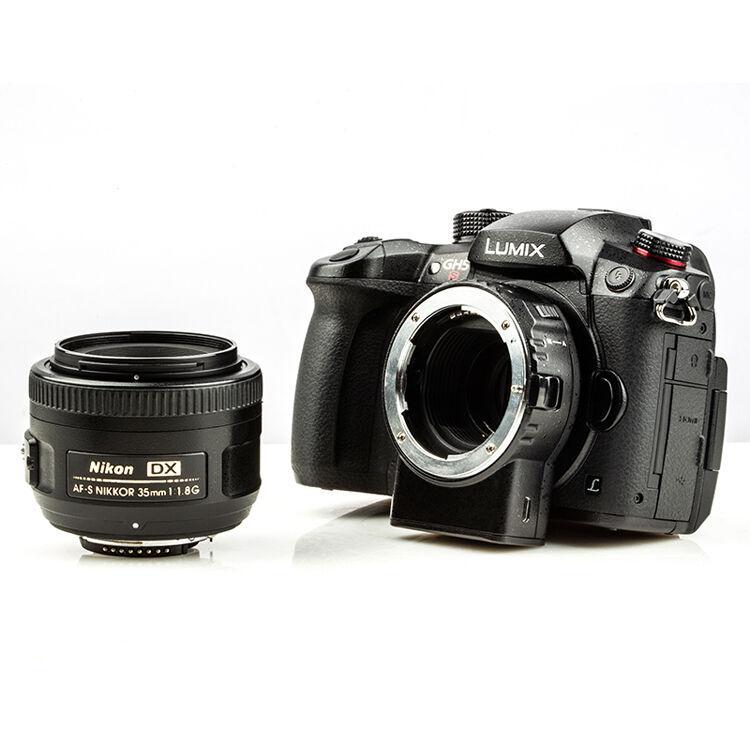

The Viltrox NF-M1 allows compatible Nikon F-mount lenses to be used on Micro Four Thirds cameras from Panasonic, OM System/Olympus, Blackmagic Design, and other manufacturers.

Electronic contacts maintain communication between compatible lenses and cameras, enabling features such as autofocus, camera-controlled aperture, EXIF transmission, and lens-based VR stabilization.

⚡ Key Benefits

• Mounts Nikon F lenses on Micro Four Thirds cameras

• Autofocus support with compatible lenses and cameras

• Electronic aperture control

• Supports compatible Nikon lens-based VR

• Transfers lens and exposure information

• AF/MF selector switch

• USB connection for firmware updates

• No corrective optical elements

• Durable metal mounts and electronic contacts

• Lightweight 126g construction

Expand Your Micro Four Thirds Lens Options

The NF-M1 gives Micro Four Thirds photographers and filmmakers access to a large selection of Nikon F-mount lenses. It is especially useful for adapting existing Nikon telephoto, macro, portrait, and specialty lenses.

Because the adapter does not contain focal-reducing optics, it does not add additional glass between the lens and camera.

Electronic Lens Communication

The integrated electronic contacts support important functions with compatible equipment, including:

• Autofocus

• Electronic aperture adjustment

• Lens-based VR stabilization

• EXIF data transmission

• Focus confirmation

Available features and focusing performance vary according to the particular lens, camera, and firmware combination.

Important Compatibility Information

The NF-M1 works best with compatible Nikon AF-S and AF-P lenses that contain an internal autofocus motor. Older screw-drive AF and AF-D lenses do not gain autofocus through the adapter.

Autofocus may be limited to certain modes on some camera bodies. Continuous autofocus, subject tracking, and video autofocus performance can vary significantly between combinations.

Some cinema cameras, including select Blackmagic and Z CAM models, may provide electronic aperture control without autofocus. Compatibility should be confirmed for the specific camera and lens before purchase.

Micro Four Thirds Field of View

The camera’s Micro Four Thirds sensor applies its normal approximately 2x angle-of-view crop. For example, a 50mm Nikon lens provides an angle of view similar to a 100mm lens on a full-frame camera.

This can be particularly useful for wildlife, sports, and distant subjects, where additional apparent reach is desirable.

Electronic Aperture Control

An internal motor-and-gear system operates the aperture mechanism of compatible Nikon lenses, allowing the f-stop to be adjusted from the Micro Four Thirds camera.

This is especially useful with Nikon G- and E-type lenses that do not have a physical aperture ring.

Lens-Based VR Support

Compatible Nikon VR lenses can retain their optical Vibration Reduction functionality. This can help reduce blur when shooting handheld with longer lenses or in lower light.

Firmware Upgrade Support

The integrated USB connection allows users to install firmware updates released by Viltrox. Keeping the adapter, lens, and camera firmware current is recommended for the best possible compatibility.

Durable Construction

Metal bayonet mounts provide a secure connection at both ends of the adapter. Gold-plated electronic contacts support dependable communication, while the compact 126g design adds relatively little weight to the camera system.

Ideal For

• Micro Four Thirds photographers with Nikon F lenses

• Panasonic Lumix and OM System/Olympus users

• Blackmagic Pocket Cinema Camera users

• Wildlife and sports photographers

• Filmmakers adapting Nikon lenses

• Photographers transitioning between camera systems

• Owners of Nikon macro or specialty lenses

How It Compares

Compared with a Manual Adapter

A basic manual adapter only provides a physical connection. The NF-M1 adds electronic aperture control, EXIF transmission, compatible autofocus, and support for lens-based VR.

Compared with a 0.71x Speed Booster

The NF-M1 contains no focal-reducing optics. It maintains the lens’s original optical characteristics but provides the normal Micro Four Thirds field of view. A 0.71x focal reducer provides a wider field of view and approximately one additional stop of effective light transmission.

Compared with Native Micro Four Thirds Lenses

Native lenses generally offer the fastest and most consistent autofocus performance. The NF-M1 is most valuable when using existing Nikon glass or a specialty F-mount lens without a direct Micro Four Thirds equivalent.

Key Specifications

• Lens mount: Nikon F

• Camera mount: Micro Four Thirds

• Focus modes: AF and MF

• Electronic aperture control: Supported with compatible lenses

• Lens VR support: Supported with compatible lenses

• Firmware updates: USB connection

• Dimensions: Approximately 78 × 66mm

• Weight: Approximately 126g

In the Box

• Viltrox NF-M1 Lens Mount Adapter

• Front adapter cap

• Rear adapter cap

• Documentation

Complete Your Kit

Consider pairing this adapter with:

• A compatible Panasonic or OM System/Olympus camera

• Blackmagic Pocket Cinema Camera 4K

• Compatible Nikon AF-S or AF-P lens

• Support rails or a lens support for heavier lenses

• Extra camera battery

• Protective camera bag
